178 Rockwell Automation Publication 450L-UM001D-EN-P - December 2019
Chapter 9 Connected Components Workbench Software

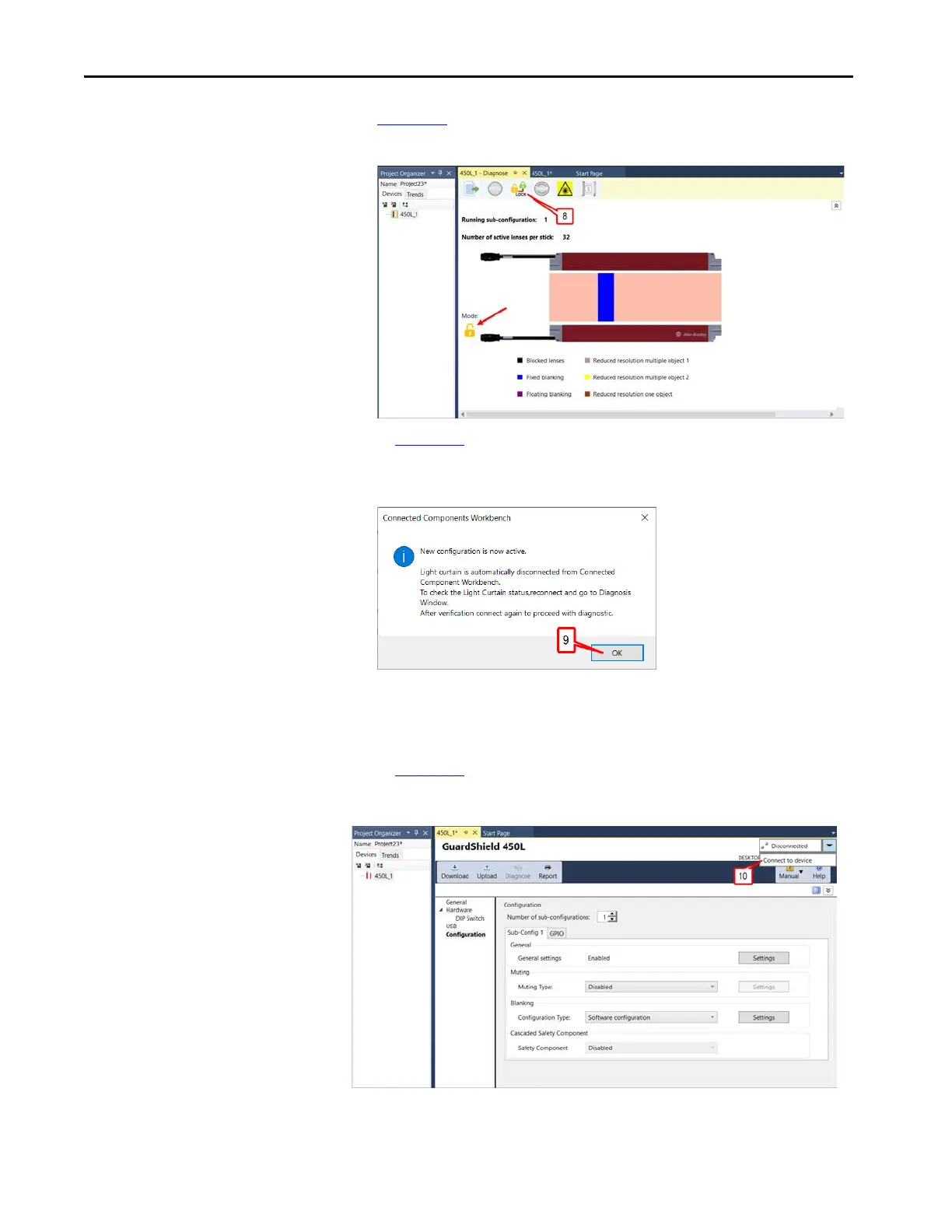

8. Figure 148 shows the unlocked Mode icon. Click Lock.
Figure 148 - Lock to Confirm Configuration
9. In Figure 149, the configuration is now active, and the light curtain is
ready for use. Click OK.
Figure 149 - Configuration Active
The following steps are optional. These steps can be used to monitor the
performance of the light curtain through the Connected Components
Workb en c h so ft wa re.
10. In Figure 150
, select Connect to device.
Figure 150 - Connect to Device
