134 Rockwell Automation Publication 450L-UM001D-EN-P - December 2019
Chapter 9 Connected Components Workbench Software
Workbench Layout
Figure 92 on page 134 shows the six major sections of the workbench layout.
• Project Organizer – shows all devices that are contained in the project.
• Header – shows the device identity and the connection information.
• Toolbar – shows the operations/commands for the Bulletin 450L device.
The set of operations for Bulletin 450L-B and Bulletin 450L-E (DIP
switch 1=OFF) are: Diagnose, Report, Manual, Help. The set of
operations for Bulletin 450L-E (DIP switch 1=ON) is: Download,
Upload, Diagnose, Report, Manual, and Help.
• Graphic – shows a graphical representation of the light curtain device and
the system mode status. The graphic pane can be minimized to expand the
Configuration Pane and Diagnostic Information.
• Configuration Tree – provides the navigation to the configuration of a
light curtain.
• Configuration Pane – sets the configuration details of the Bulletin 450L-E
light curtain. The content of this pane coincides with the selection in the
Configuration Tree.

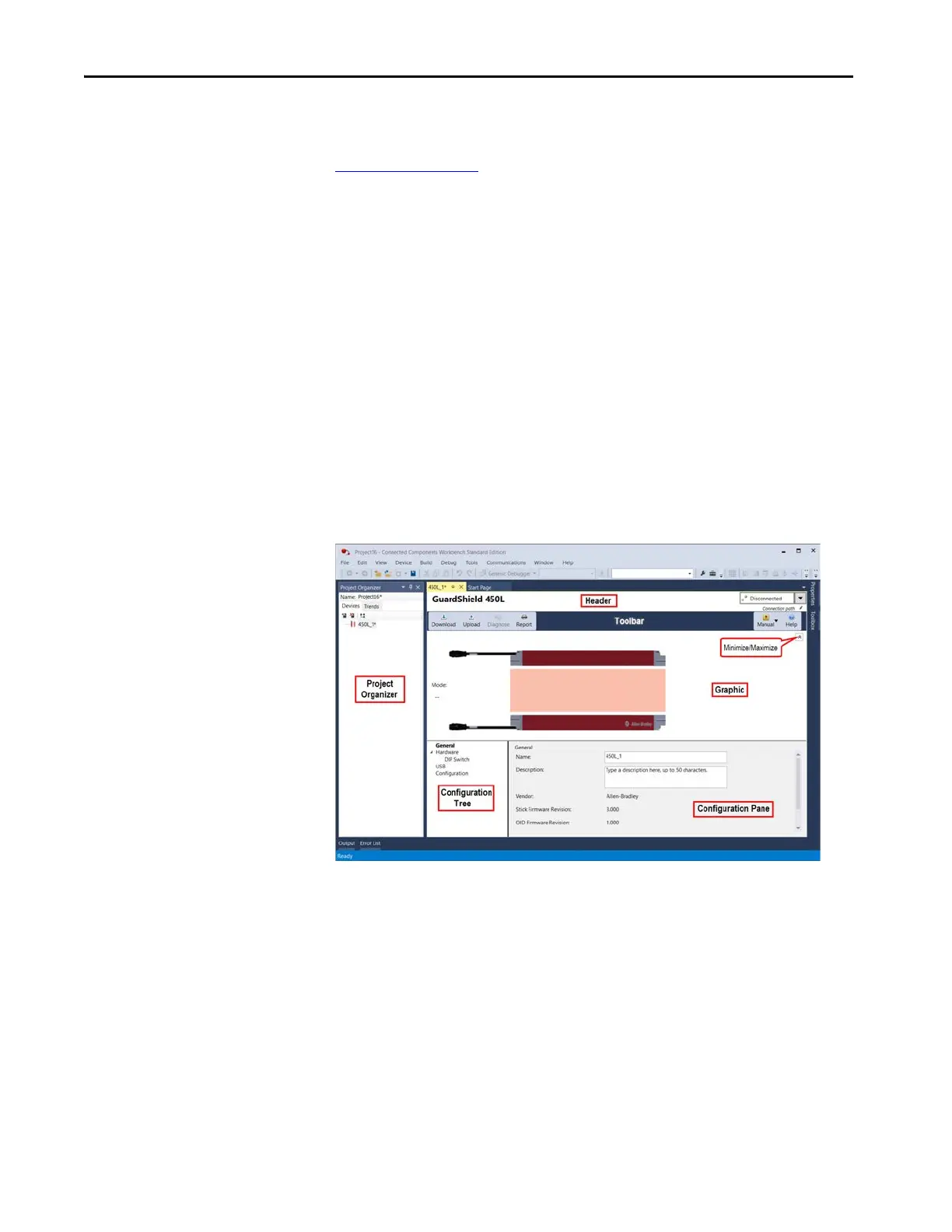

Figure 92 - Project Opened – Workbench Layout
