14 Rockwell Automation Publication 450L-UM001D-EN-P - December 2019
Chapter 1 Product Overview
Package Contents
A GuardShield safety light curtain is normally shipped as an individual
component (single transceiver). A functional system includes four individual
boxes.
Table 2 - List for a Complete System

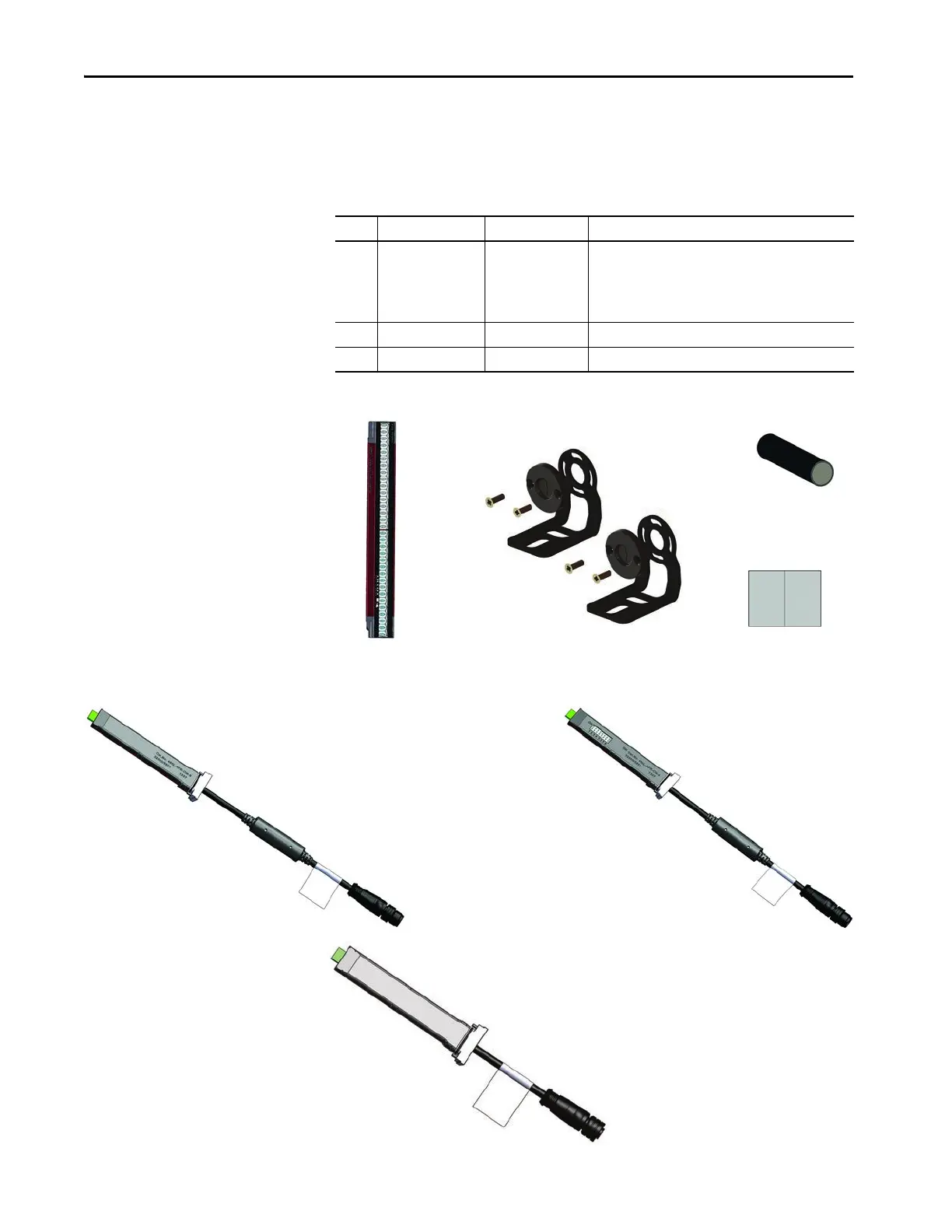

Figure 4 - Contents of 450L Transceiver Stick Box
Figure 5 - Plug-ins
Item Required Quantity Description Remark
12
450L GuardShield
transceiver stick
Each box contains:
•One stick
• Mounting kit (top and bottom)
•Test rod
• Short instruction manual
2 1 Transmitter plug-in 150 mm (5.9 in.) pigtail with M12 QD connector (male)
3 1 Receiver plug-in 150 mm (5.9 in.) pigtail with M12 QD connector (male)
Transceiver Stick
Standard Mounting Kit
Test Rod
Installation
Instruction
Transmitter Connection Plug-in,
No DIP Switches, 5-pin or 8-pin
M12 QD
Receiver and Universal Connection
Plug-in, with DIP Switches, 5-pin
or 8-pin M12 QD
Cascading Plug-in (Catalog Number
450L-APC-IO-8), No DIP Switches,
8-pin M12 QD
To Next Page
