Chapter 6 Installation and Wiring
Side Mounting Bracket
The side mounting clamp allows a rotation of the snapped in GuardShield safety
light curtain profile of ±5° (Figure 53
).

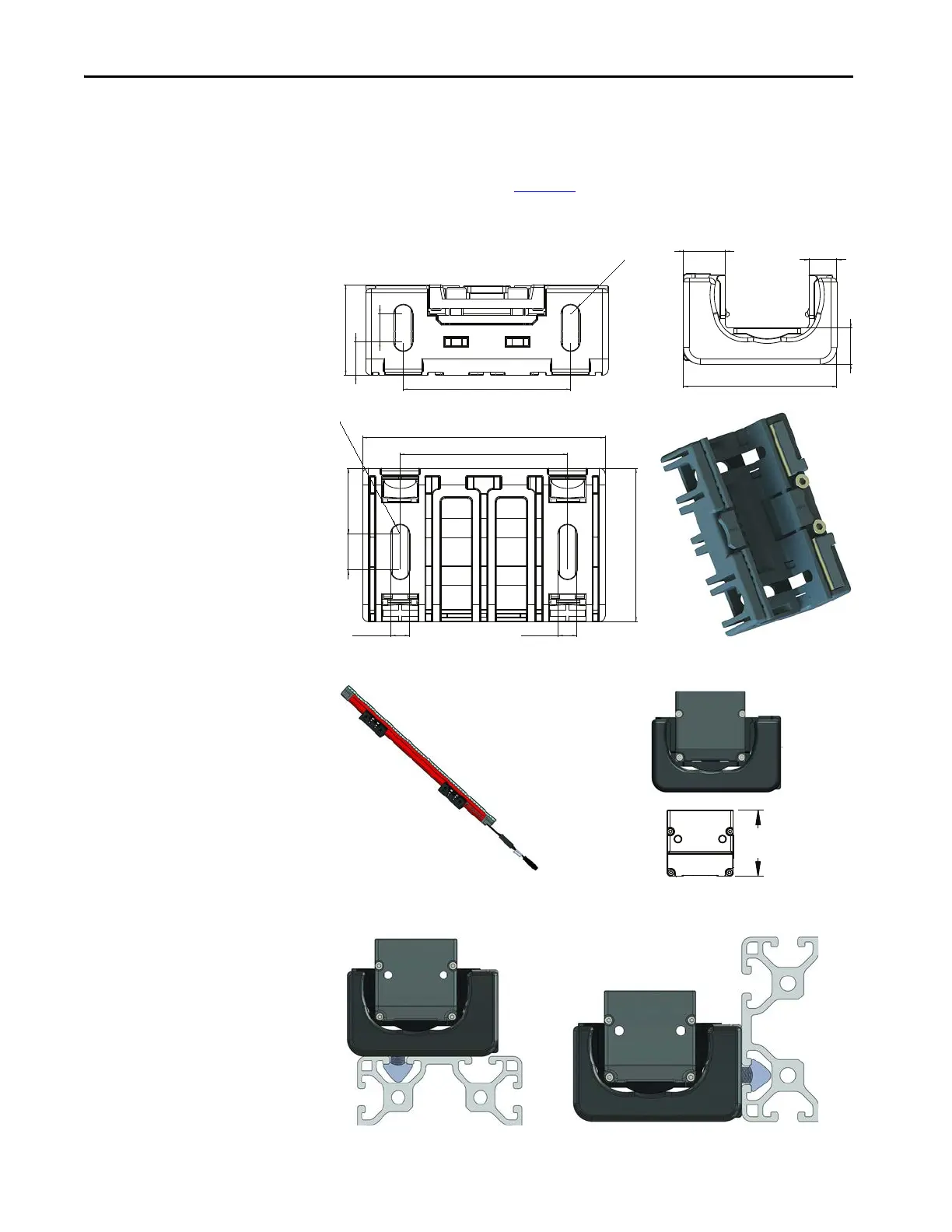

Figure 53 - Dimensions of the Side Mounting Bracket 450L-AM-SM (Contains Two Brackets)
Figure 54 - 450L Safety Light Curtain Snapped in a Side Mounting Kit
Figure 55 - 450L Safety Light Curtain Mounted on an Extruded Aluminum Profile Using Side-
mount Bracket Kit (450L-AM-SM: Contains Two Brackets)
87
( 3.43)
55
(2.17)
6.6
(0.26)
6.6
(0.26)
R3.50
(0.14)
13
(0.51)
60
(2.36)
23.5
(0.93)
55 (2.17)
15
(0.59)
10
(0.39)
13
(0.51)
60 (2.36)
32.5 (1.28)
R3.3
( 0.13)
10 (0.39)
12 (0.47)
Side Mounting
Back Mounting
30
(1.18)
