Two-sensor Muting with Muting Plug-in
Figure 74 is a two-sensor muting example with the 450L-E safety light curtain.
The transmitter uses the 5-pin transmitter plug-in, and the receiver uses the 8-pin
muting plug-in.

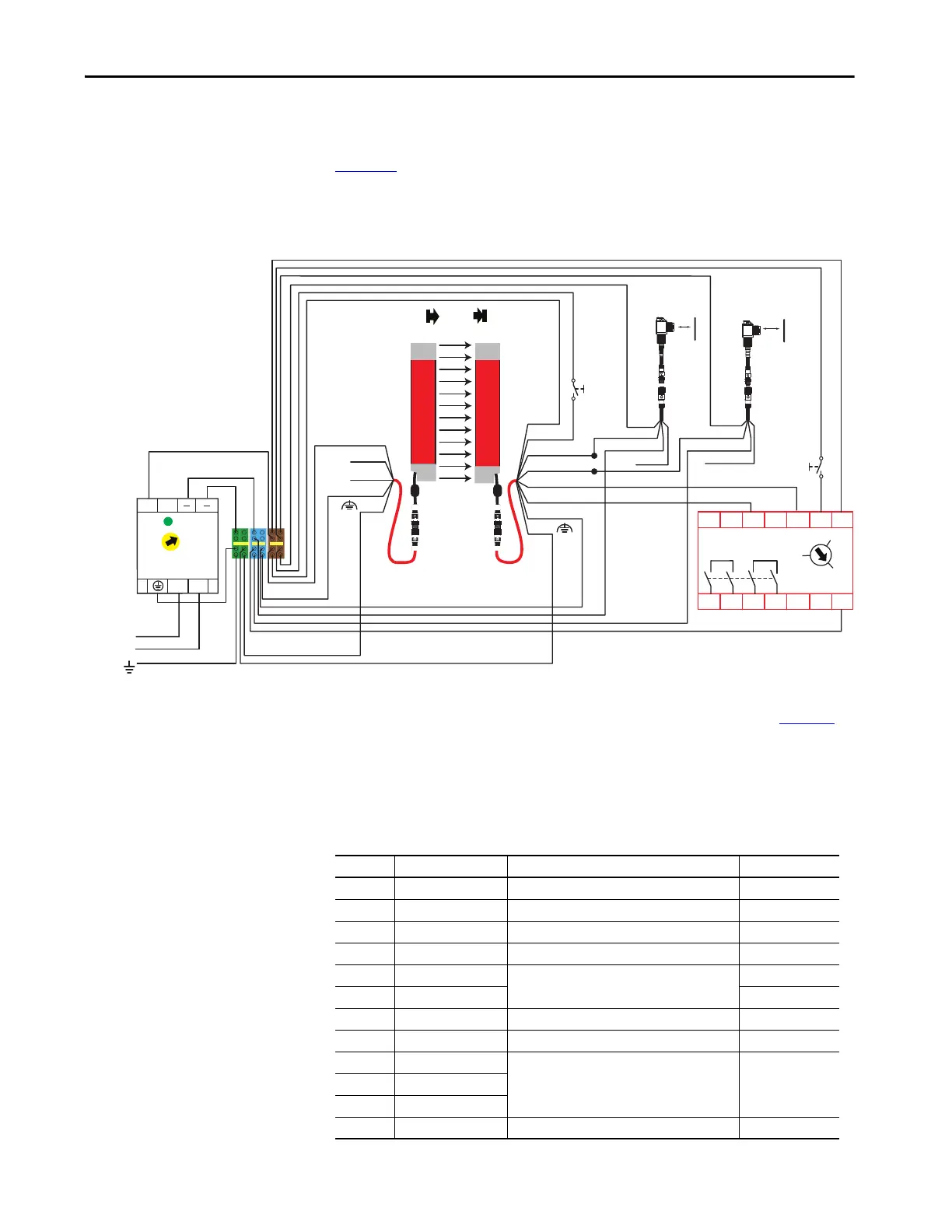

Figure 74 - Example Schematic for Two-sensor Muting of a 450L-E Light Curtain
The DIP switch settings for the receiver muting plug-in are shown in Tab le 50.
Switches 2, 3, 5, and 6 can be changed to ON, if needed by the application.
Switch 7 must be OFF and switch 8 must be ON. Switches 9, 10, and 11
determine the type of muting. The transmitter plug-in does not have DIP
switches.
Table 50 - Receiver DIP Switch Settings
450L-E4FN1200YD
450L-E4FN1200YD
S11 S12 S21 S22
S34
A1
13 L11
A2
14 23 24 Y32
SI
440R-S12R2
RESET
0
MM
AM
Muting Sensor 1
42EF-P2MPB-F4
889D-
F4AC-5
889D-
F4AC-5
Muting Sensor 2
42EF-P2MPB-F4
Blue Blue
White (Not Used)
Brown
2 Brown
Black Black
Brown
450L-APT-PW-5
898D-F5NC-5
450L-APR-MU-8
898D-F8NB-5
Tx
Rx
5 Gray OSSD1
1 White
6 Pink OSSD2
4 Yellow
Mute
Dependent
Override
8 Red
3 Green
7 Blue
White (Not Used)
5. Gray
FE
FE
3. Blue
4. Black (Not Used)
2. White (Not Used)
1. Brown
+24V DC
24V Com (0V)
L
L
++
N
N
1606-XLP95E
24-
28V
DC ok
120…240V AC
RESET
PE
Primary Protective Earth Ground
Switch 450L-APR-MU-8 Description Comment
1OFF — —
2 OFF Low Range Disabled Optional
3OFF Beam Coding Disabled Optional
4OFF — —
5OFF
Automatic Start
Optional
6OFF Optional
7 OFF EDM Disabled —
8 ON Muting Required
9OFF or ON
DIP 9: OFF, DIP 10: ON, DIP 11: OFF 2L muting
DIP 9: ON, DIP 10: OFF, DIP 11: OFF 2T muting
Determines muting
type
10 OFF or ON
11 OFF
12 OFF — —
