Chapter 6 Installation and Wiring
Figure 73 shows a typical example of a ladder logic program that could be used
with the example schematic. The comments that are embedded in the program
explain the usage of each rung.

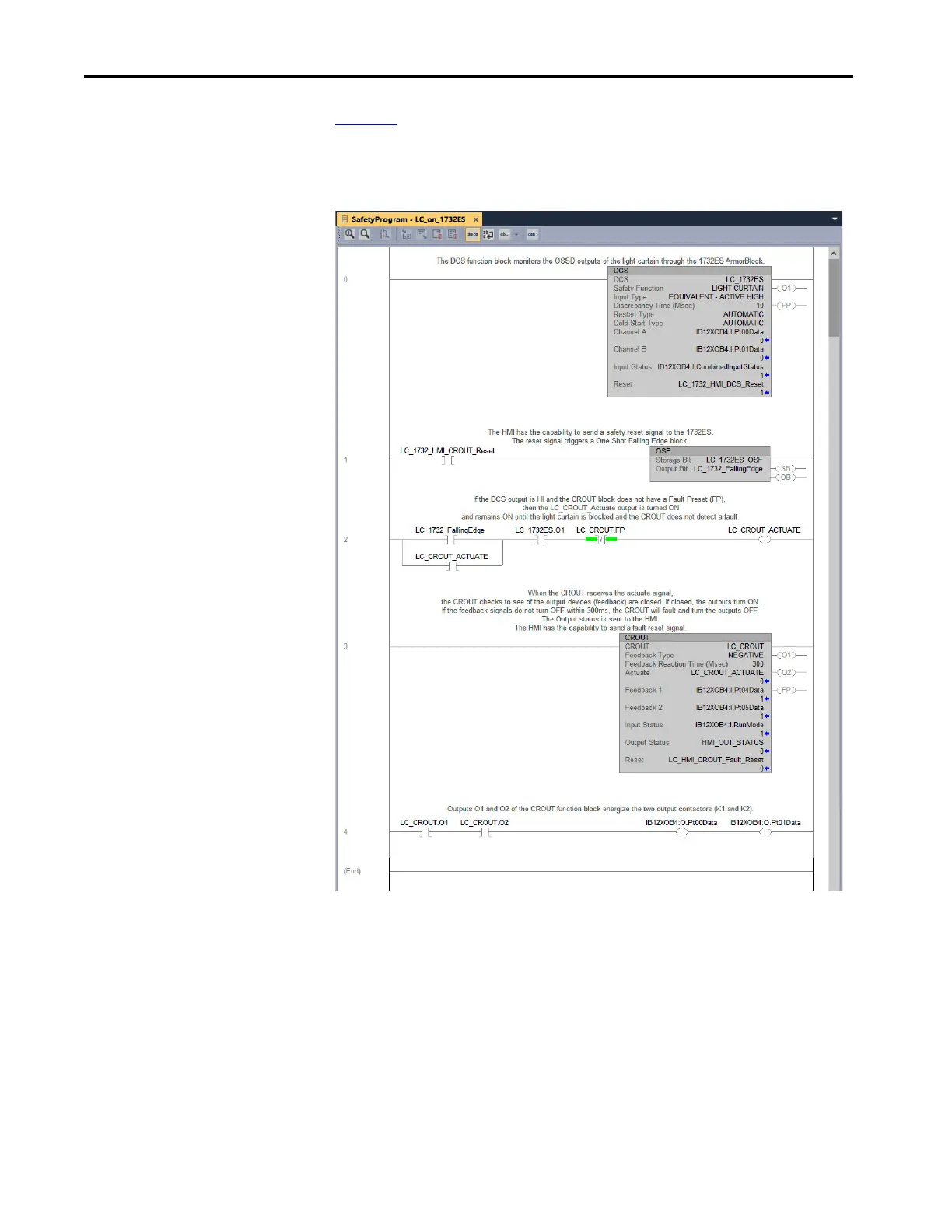

Figure 73 - ArmorBlock Ladder Logic Program
