Rockwell Automation Publication 450L-UM001D-EN-P - December 2019 107
Installation and Wiring Chapter 6

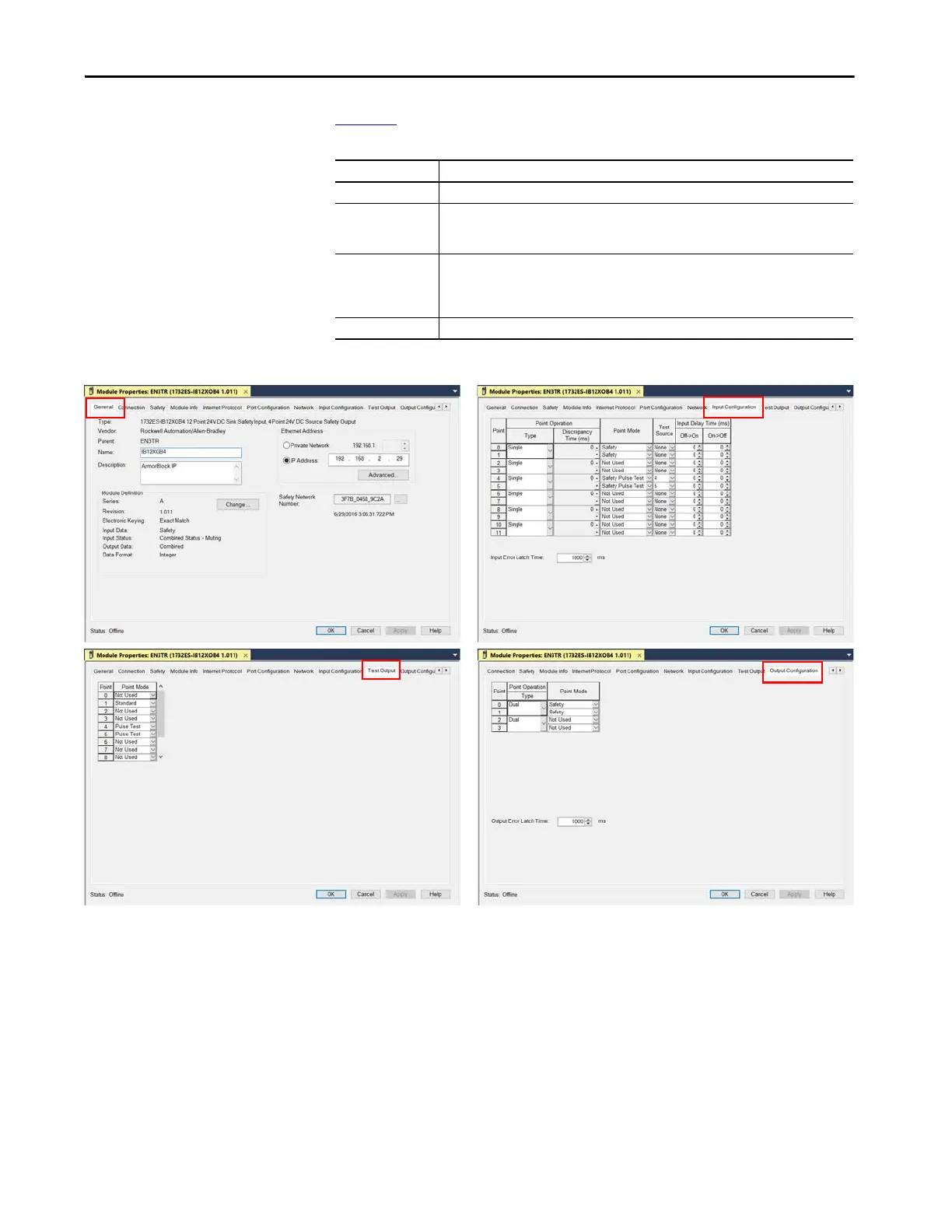

Figure 72 shows the screen captures of the ArmorBlock module properties setup
for the example schematic.
Figure 72 - ArmorBlock Module Properties Setup
Tab Description
General Configure the module definition.
Input Configuration
Points 0 and 1 monitor the light curtain OSSD outputs. Points 4 and 5 use pulse testing to
monitor the status of the output contactors K1 and K2. The Point Operation Types are set to
Single to allow the logic function block to detect faults.
Test Output
Point 0 must be set to Not Used as pin 5 on the connector is connected to the light curtain
housing. Point 1 is set to Standard to allow the program to cycle the power to the light curtains
if the light curtain has to be power cycled. Points 4 and 5 are the test pulses to monitor the
contactors K1 and L2.
Output Configuration Points 0 and 1 turn the output contactors, K1 and K2, on and off.
