Connected Components Workbench Software Chapter 9
11. Verify that the selection and firmware revision are correct and click Add to
Project.

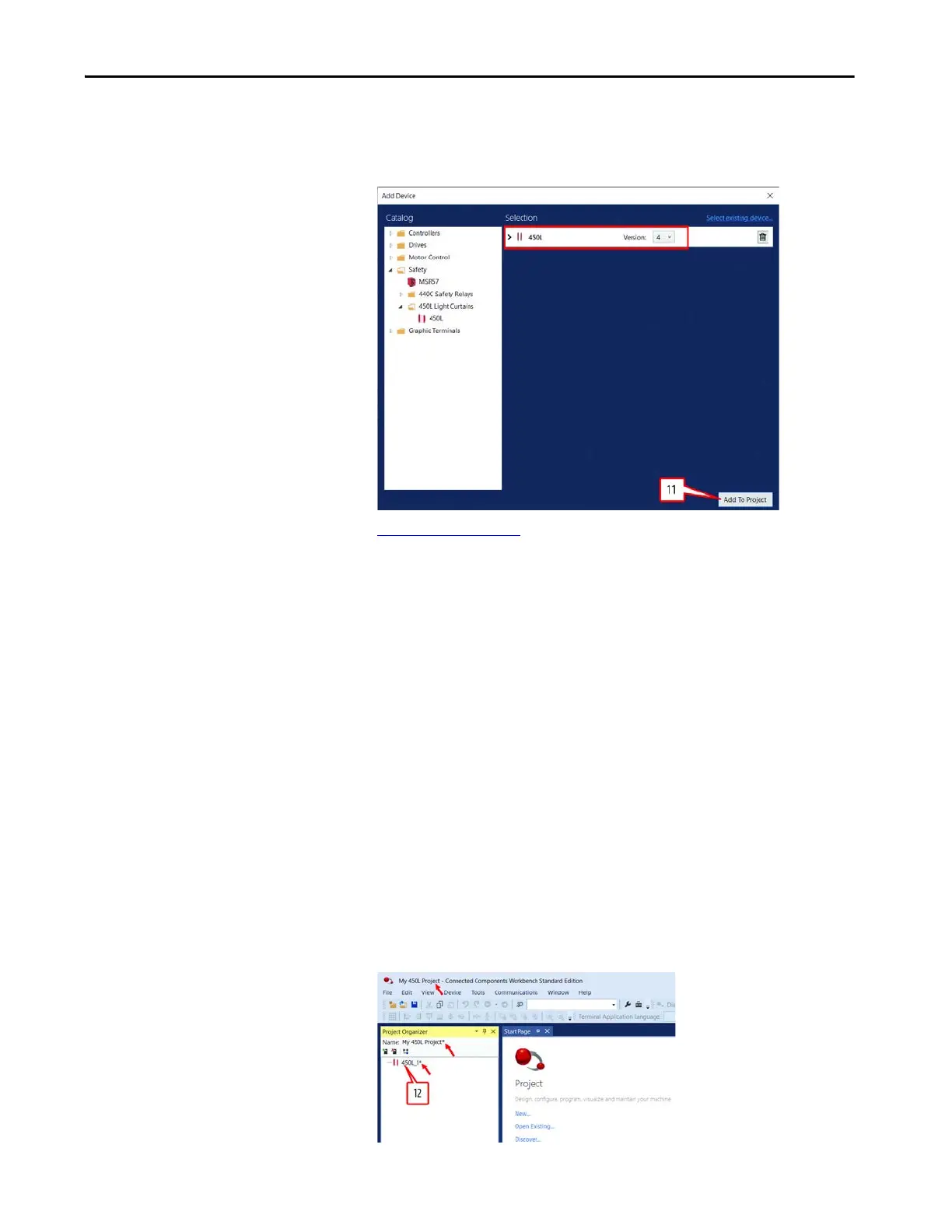

Figure 90 - Add to Project
Figure 91 on page 133 shows the Bulletin 450L light curtain device in the
Project Organizer.
The project name appears in the title of the window and in the Project
Organizer. In this example, the light curtain project name is “My 450L
Project.”
The Bulletin 450L device appears in the Project Organizer with the
default name “450L_1.” If desired, the name of the safety controller can be
changed. Click the name to change the name of the light curtain (or right-
click and select Rename). This step is not required to complete the
configuration or to run the Bulletin 450L. The name that you choose must
follow these rules:
• No special characters, except underscore
• No double underscore
• 1…32 characters
An asterisk appears after the controller name and project name to indicate
that a valid project has not yet been saved.
12. In the Project Organizer, double-click the device name or icon to open the
product configuration tab.
Figure 91 - Project Created
