132 Rockwell Automation Publication 450L-UM001D-EN-P - December 2019
Chapter 9 Connected Components Workbench Software
6. Expand the Safety listing.
7. Expand The Bulletin 450L Light Curtains.
8. Click the Bulletin 450L.
9. Select the version number that matches the stick firmware.
10. Click Select.

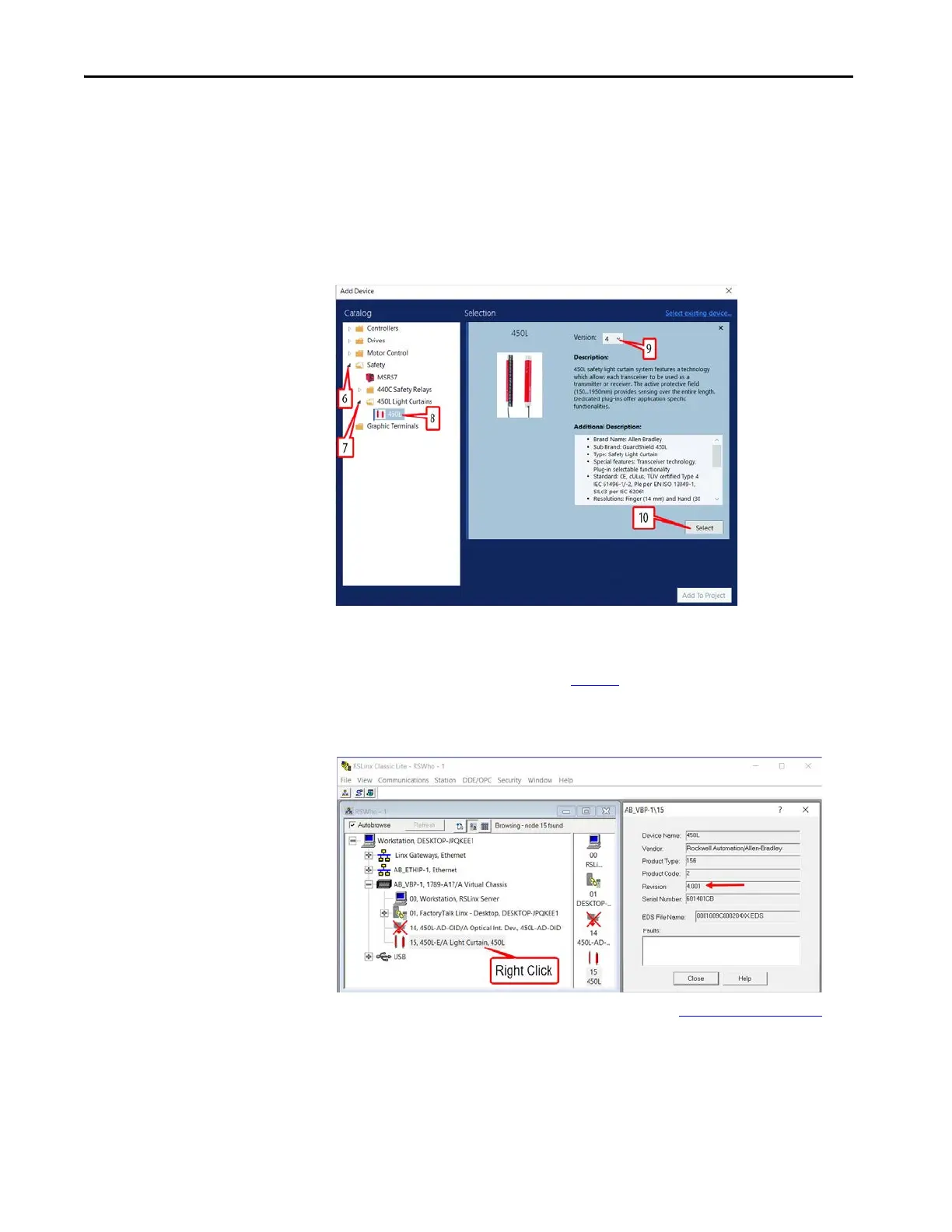

Figure 88 - Add a Device
Figure 89 - Firmware Revision
The firmware selection process is confirmed in Figure 90 on page 133.
TIP To determine the current firmware revision of the light curtain, open
RSLinx® software, right-click the Bulletin 450L, and click Device Properties.
An example is shown in Figure 89
.
