180 Rockwell Automation Publication 450L-UM001D-EN-P - December 2019
Chapter 9 Connected Components Workbench Software

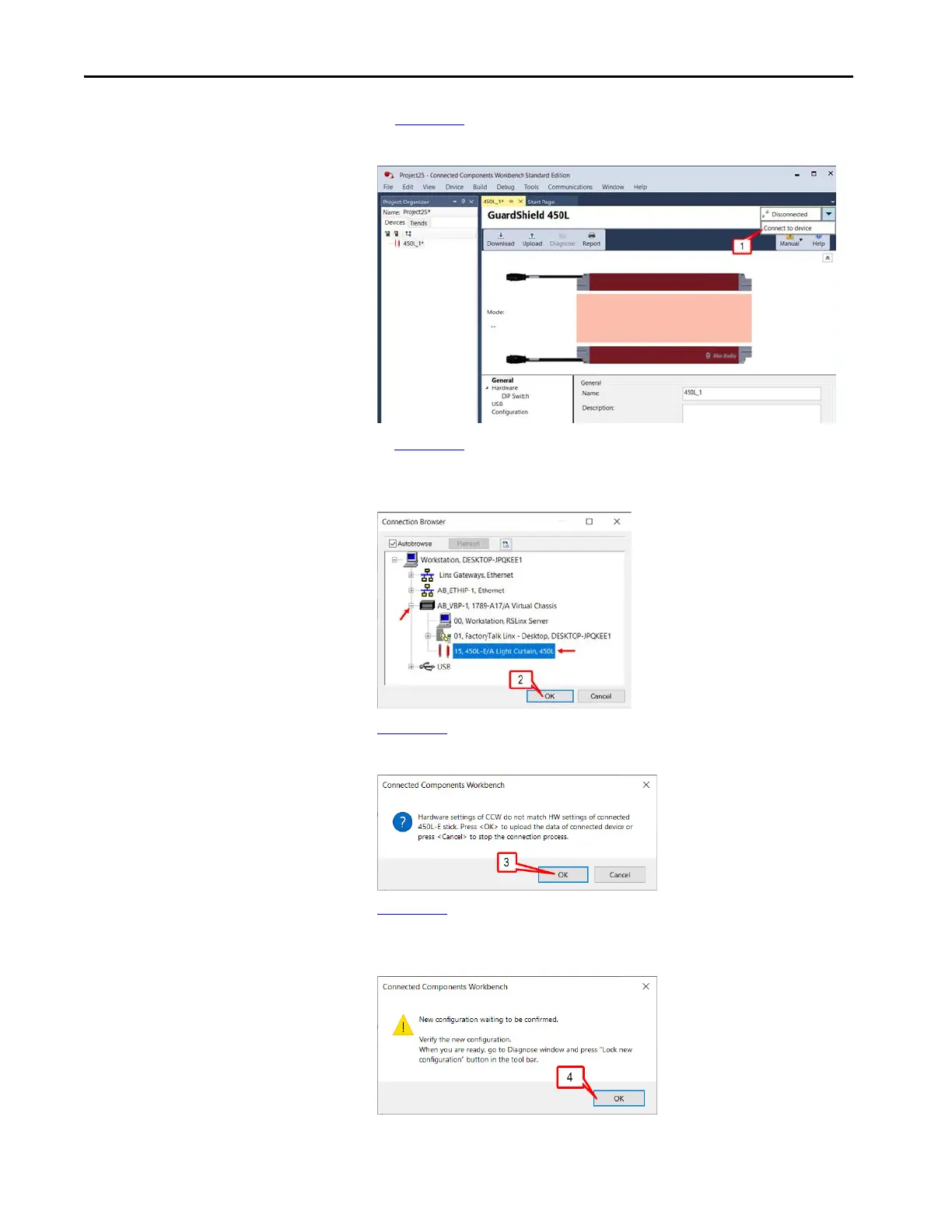

1. In Figure 153, click Connect to device.
Figure 153 - Connect to Device
2. In Figure 154, expand the AB_VPN-1 connection, click on Bulletin 450L,
and click OK.
Figure 154 - Connection Browser
3. Figure 155 shows that the hardware settings do not match. Click OK.
Figure 155 - Hardware Settings Do Not Match
4. Figure 156 shows the new configuration waiting to be confirmed. Click
OK.
Figure 156 - Awaiting Confirmation
