Specifications Appendix A

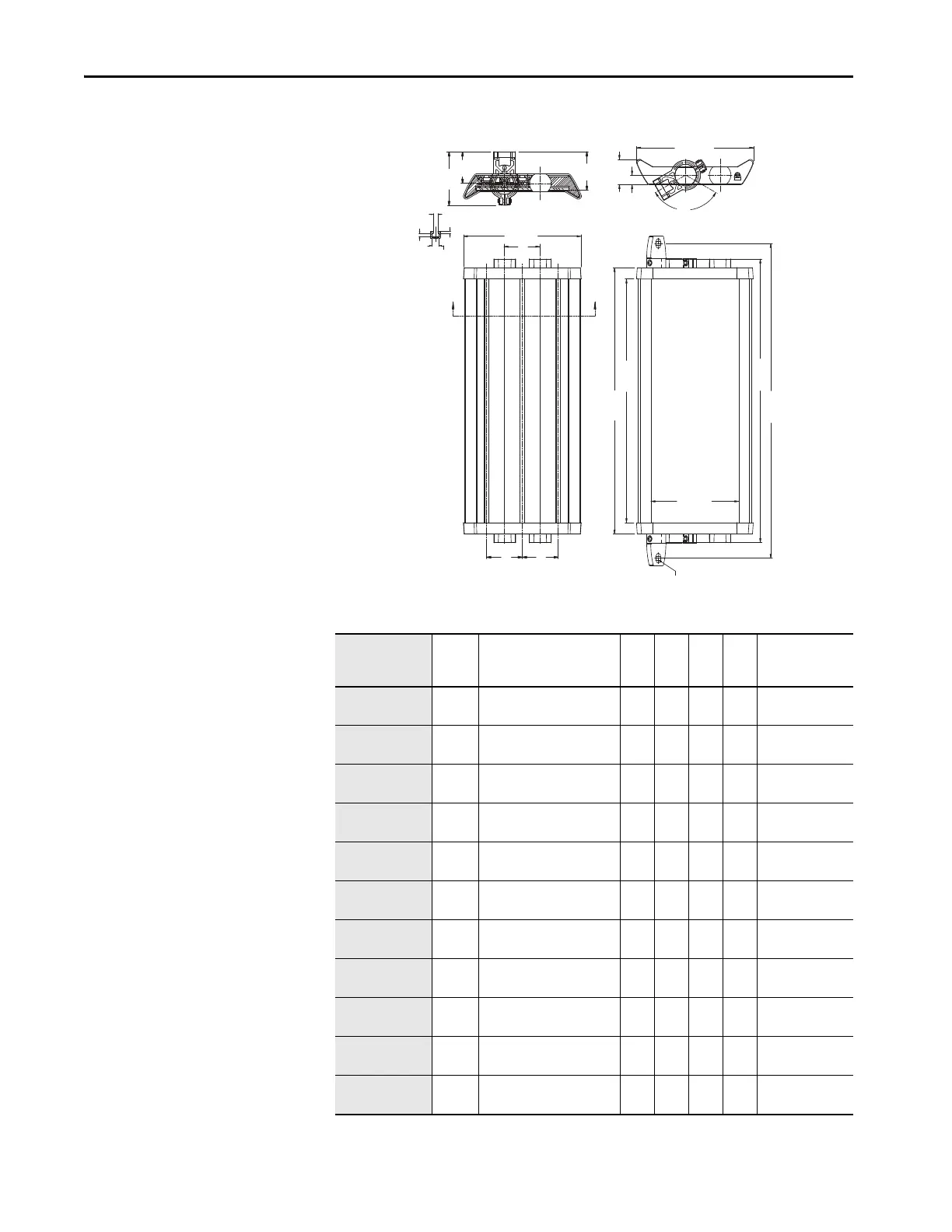

Figure 180 - Dimensions of the Mirror (440L-AM125) (Width 125 mm (4.92 in.))
Table 79 - Mirror (Width: 125 mm (4.92 in.))
Cat. No. Series Description L LS A B
Protective
Height 450L
[mm]
440L-AM1250300 A
Mirror, 300 mm (11.81 in.),
4 m (13.12 ft)
396 340 372 440 300
440L-AM1250450 A
Mirror, 450 mm (17.72 in.),
4 m (13.12 ft)
546 490 522 590 450
440L-AM1250600 A
Mirror, 600 mm (23.62 in.),
4 m (13.12 ft)
696 640 672 740 600
440L-AM1250750 A
Mirror, 750 mm (29.53 in.),
4 m (13.12 ft)
846 790 822 890 750
440L-AM1250900 A
Mirror, 900 mm (35.43 in.),
4 m (13.12 ft)
996 940 972 1040 900
440L-AM1251050 A
Mirror, 1050 mm (41.34 in.),
4 m (13.12 ft)
1146 1090 1122 1190 1050
440L-AM1251200 A
Mirror, 1200 mm (47.24 in.),
4 m (13.12 ft)
1296 1240 1272 1340 1200
440L-AM1251350 A
Mirror, 1350 mm (53.15 in.),
4 m (13.12 ft)
1446 1390 1422 1490 1350
440L-AM1251500 A
Mirror, 1500 mm (59.05 in.),
4 m (13.12 ft)
1596 1540 1572 1640 1500
440L-AM1251650 A
Mirror, 1650 mm (64.96 in.),
4 m (13.12 ft)
1746 1690 1722 1790 1650
440L-AM1251800 A
Mirror, 1800 mm (70.86 in.),
4 m(13.12 ft)
1896 1840 1872 1940 1800
"Z"
A
A
±120°
8 X 13
"Z"
164 (6.45)
35
(1.37)
13.3
(0.52)
54
(2.12)
Section A
44.4
(174)
75
(2.65)
10.5
(0.41)
2.5 (0.09)
6.5
(0.25)
4.5
(0.17)
164 (6.45)
50
(1.96)
50
(1.96)
50
(1.96)
B
440
(17.32)
L
396
(15.60)
Ls
340
(13.4)
A
372
(14.64)
123 (4.84)
