Chapter 9 Connected Components Workbench Software

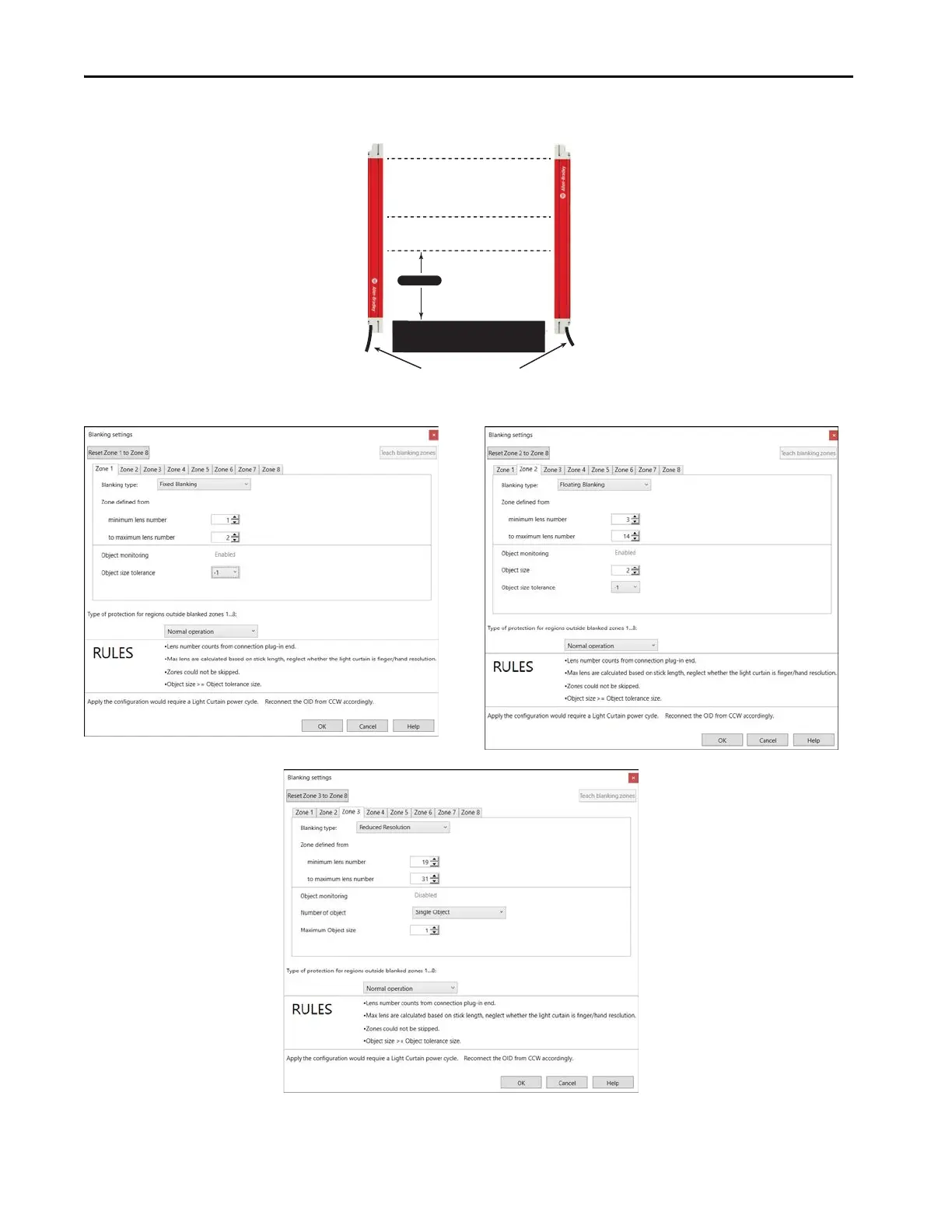

Figure 121 - Three Zone Blanking Example – With Finger Resolution
Zone 1
Fixed Blanking
Connection Plug-ins
Zone 2
Floating Blanking
Synchronization
Zone 3
Reduced Resolution
No blanking
Lens 32
31
19
18
15
14
3
2
Lens 1
