Rockwell Automation Allen-Bradley GuardShield 450L-B4FNxYD

194 Rockwell Automation Publication 450L-UM001D-EN-P - December 2019
Appendix A Specifications

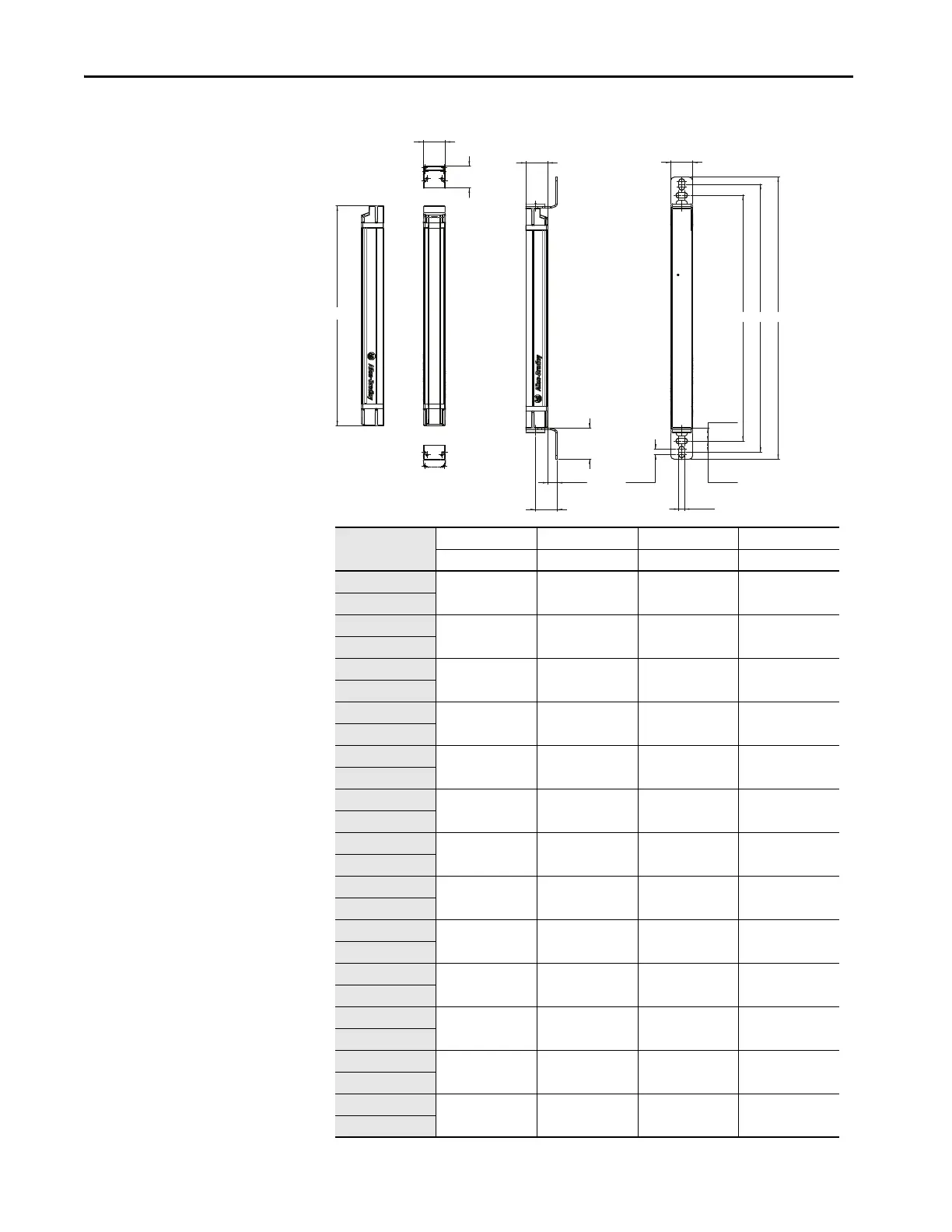

Figure 176 - 450L Safety Light Curtain Stick Dimensions [mm (in.)]
Cat. No.
ABCD
Protective Height Mounting Value Mounting Value Total Length
450L-B4xN0150YD
150 (5.91) 185.5 (7.3) 215 (8.46) 235 (9.25)
450L-E4xL0150YD
450L-B4xN0300YD
300 (11.81) 335.5 (13.21) 365 (14.37) 385 (15.16)
450L-E4xL0300YD
450L-B4xN0450YD
450 (17.72) 485.5 (19.11) 515 (20.28) 535 (21.06)
450L-E4xL0450YD
450L-B4xN0600YD
600 (23.62) 635.5 (25.02) 665 (26.18) 685 (26.97)
450L-E4xL0600YD
450L-B4xN0750YD
750 (29.53) 785.5 (30.93) 815 (32.09) 835 (32.87)
450L-E4xL0750YD
450L-B4xN0900YD
900 (35.43) 935.5 (36.83) 965 (37.99) 985 (38.78)
450L-E4xL0900YD
450L-B4xN1050YD
1050 (41.34) 1085.5 (42.74) 1115 (43.9) 1135 (44.68)
450L-E4xL1050YD
450L-B4xN1200YD
1200 (47.24) 1235.5 (48.64) 1265 (49.8) 1285 (50.59)
450L-E4xL1200YD
450L-B4xN1350YD
1350 (53.15) 1385.5 (54.55) 1415 (55.71) 1435 (56.5)
450L-E4xL1350YD
450L-B4xN1500YD
1500 (59.06) 1535.5 (60.45) 1565 (61.61) 1585 (62.4)
450L-E4xL1500YD
450L-B4xN1650YD
1650 (64.96) 1685.5 (66.36) 1715 (67.52) 1735 (68.31)
450L-E4xL1650YD
450L-B4xN1800YD
1800 (70.87) 1835.5 (72.26) 1865 (73.43) 1885 (74.21)
450L-E4xL1800YD
450L-B4xN1950YD
1950 (76.77) 1985.5 (78.17) 2015 (79.33) 2035 (80.12)
450L-E4xL1950YD
A
30
(1.18)
30
(1.18)
C
14.90
(0.59)
B
7.60
(0.30)
8
(0.31)
17.60
(0.69)
D
13
(0.51)
42.50
(1.67)
29.90
(1.18)
30
(1.18)
30
(1.18)
