Rosemount 5400 Series
5402 (~ 26 GHz) 5401 (~ 6 GHz)
Transmitter
model and
antenna
combination

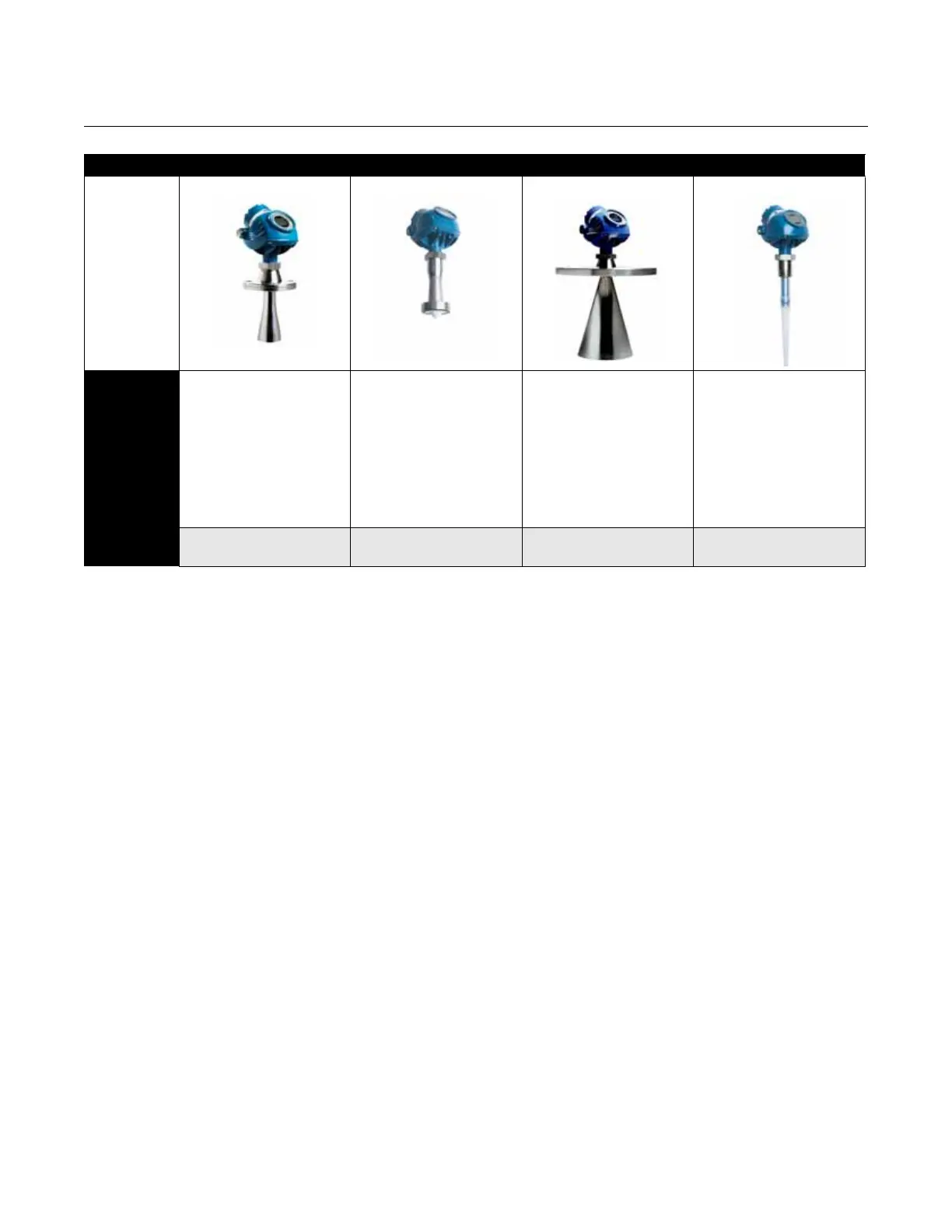

Cone Process Seal Cone Rod
Wetted
Material
Antenna options:
• 316 / 316 L SST
(EN 1.4404)
• Alloy C-276
• Alloy 400
•NACE
Tank Seal:
•PTFE
O-ring
(2)
Antenna option:
•PTFE
O-ring
(2)
Antenna options:
• 316 / 316 L SST
(EN 1.4404)
• Alloy C-276
• Alloy 400
•NACE
Tank Seal:
•PTFE
O-ring
(2)
Antenna options:
•PFA
(1)
•PFA
(1)
and
316 / 316 L SST
(EN 1.4404)
(2)
Process
Connection
Flange or Bracket Flange Flange or Bracket Flange, Thread or Bracket
(1) PFA is a fluoropolymer with properties similar to PTFE.
(2) O-ring options: Viton
®
, Kalrez
®
, EPDM and Buna-N.
