2-32

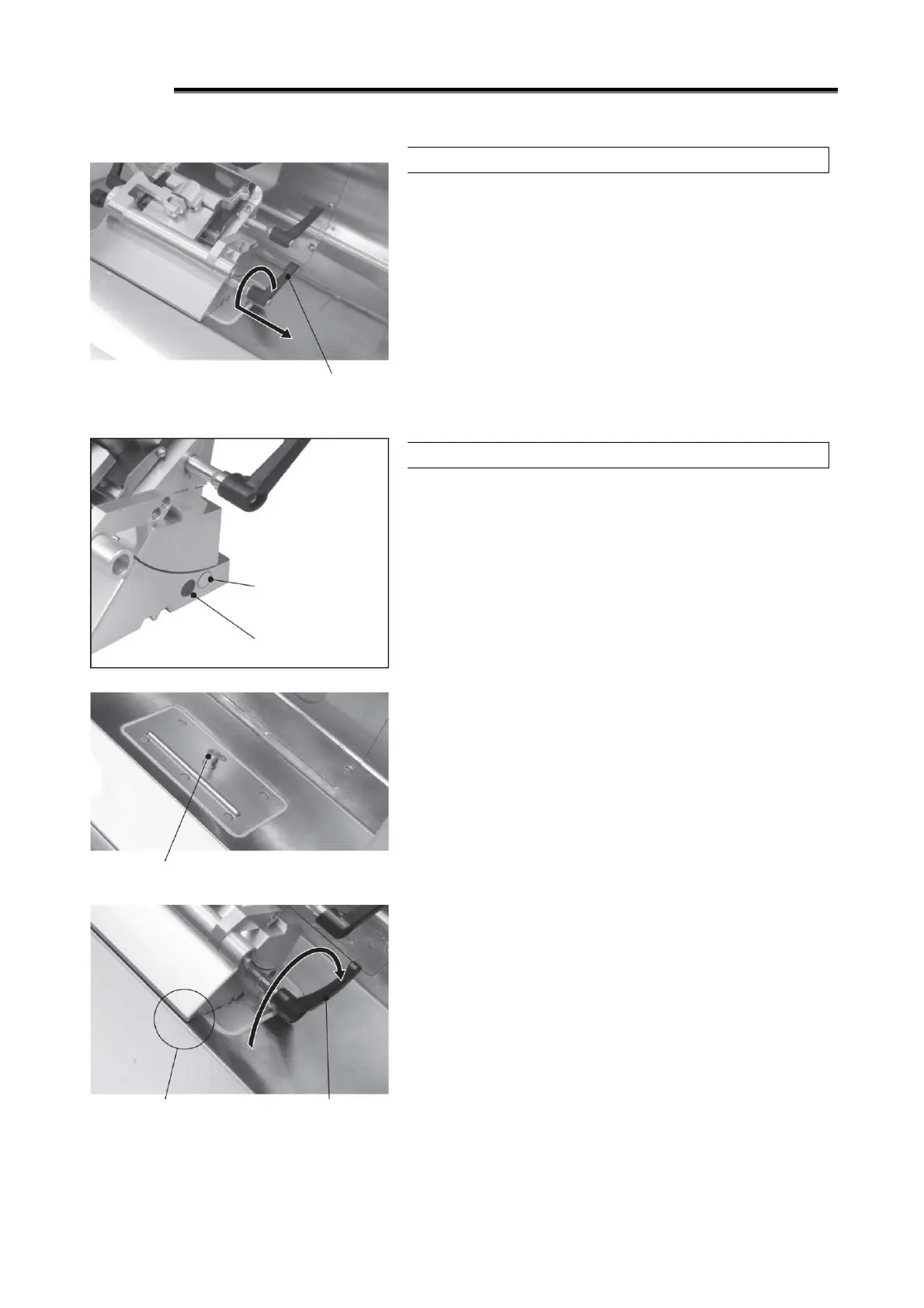

Removing the Blade Holder from the Chamber
To adjust the blade angle (relief angle) of the blade holder or clean
the blade holder, remove the blade holder from the chamber.
1. Tilt toward you the blade holder mounting lever indicated in blue,
to unlock the blade holder.
2. Pull out the lever, and the blade holder can be removed.
Setting the Blade Holder in the Chamber (Normal)
The blade holder is set in one of two positions: the normally used
position and the position when the Cryo3 adapter is used.
Do not put the blade holder mounting lever indicated in blue, in the
wrong hole.
1. Set the blade holder over the blade holder locking projections in
the chamber.
Make sure the top face of the blade holder is flush with the flat part
in the chamber.
2. Insert the blade holder mounting lever indicated in blue into the
front hole provided in the right side face of the blade holder, and tilt
the lever away from you to lock the blade holder.
Lever (blue)
(Blade holder
mounting lever)
Locking hole
(plugged with a metal
plug) when the Cryo3
adapter is used
Normally used
locking hole
Blade holder locking projection
Normally used
position (flush)
Lever (blue)
(Blade holder
mounting lever)
