3-9
Daily Care and Inspection

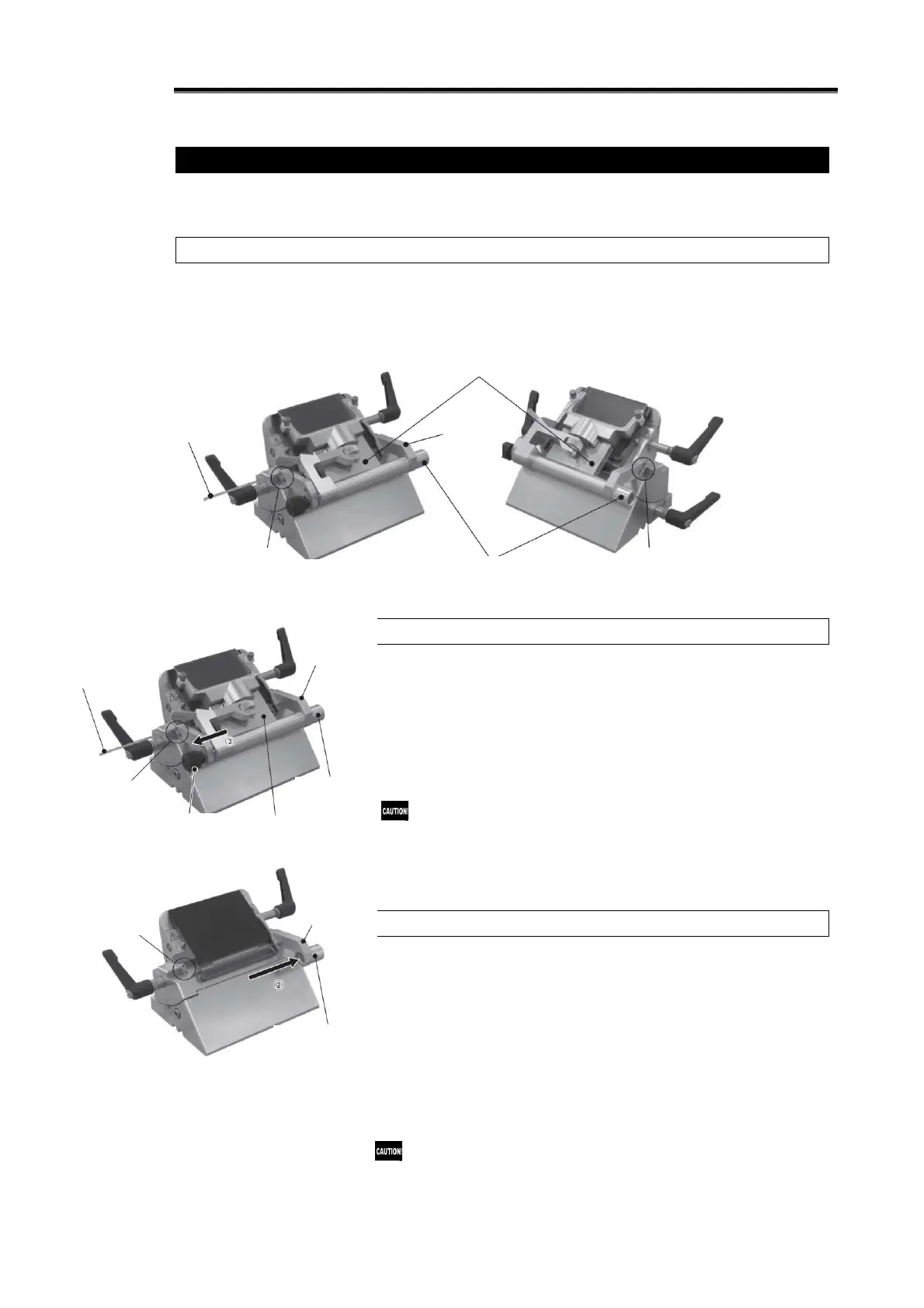

How to Disassemble/Set and Clean the Anti-Roll Plate
Debris attached to the Anti-Roll Plate can be removed effectively by disassembling/cleaning the Anti-Roll
Plate.
How to Remove the Anti-Roll Plate and Vacuum Suction Port
1. The Anti-Roll Plate is locked to the blade holder with the vacuum suction port, vacuum hose attachment
port and screws.
2. Use an Allen wrench to remove the screws (total 4 locations) on the left/right mounting plates of the blade
holder, and the Anti-Roll Plate and vacuum suction port can be removed.
How to Remove Only the Anti-Roll Plate
1. Turn and remove the black knurled screw [1].
2. Use an Allen wrench to remove the screws (2 locations) on the left
mounting plate of the blade holder [2]. Hold the Anti-Roll Plate and slide
it to the left to remove [3].
3. Return the left mounting plate onto the blade holder and lock it with the
screws (2 locations) so that it becomes parallel with the blade holder,
and then install the black knurled screw.
The vacuum suction port alone cannot be removed.
Make sure the stage (movable part) of the blade holder moves to right
and left smoothly. If not, the right and left mounting plates are out of
line. Set the mounting plate so that it is parallel with the blade holder
to avoid hitting it.
How to Install the Anti-Roll Plate
1. If the right mounting plate is not attached, lock it onto the blade holder
with the right mounting plate screws (2 locations) [1].
2. Lock the Anti-Roll Plate onto the blade holder using the vacuum hose
attachment port on the right mounting plate as well as the left mounting
plate screws.
3. Hold the Anti-Roll Plate and slide it to the right until it fits the vacuum
hole attachment port [2].
4. Use an Allen wrench to tighten the left mounting plate screws (2
locations) [3].
Make sure the stage (movable part) of the blade holder moves to right
and left smoothly. If not, the right and left mounting plates are out of
line. Set the mounting plate so that it is parallel with the blade holder to
avoid hitting it.
Screws (2 locations)
on the right mounting plate
Screws (2 locations)
on the left mounting plate
Vacuum hose
attachment
port
Screws
(2 locations) on
the left mounting
plate [2]
Vacuum hose
attachment
port
Screw holes for
left mounting
plate
To Next Page
