3-3
Daily Care and Inspection
How to Install the Vacuum Filter Set
The vacuum function is provided to suction debris, etc., to keep the
interior of the chamber clean.
The vacuum head connection hose is connected to the vacuum hose
attachment port on the blade holder to suction debris on the stage while
sectioning the specimen. Additionally, the hose can be changed with
the supplied debris suction hose to clean the interior of the chamber.

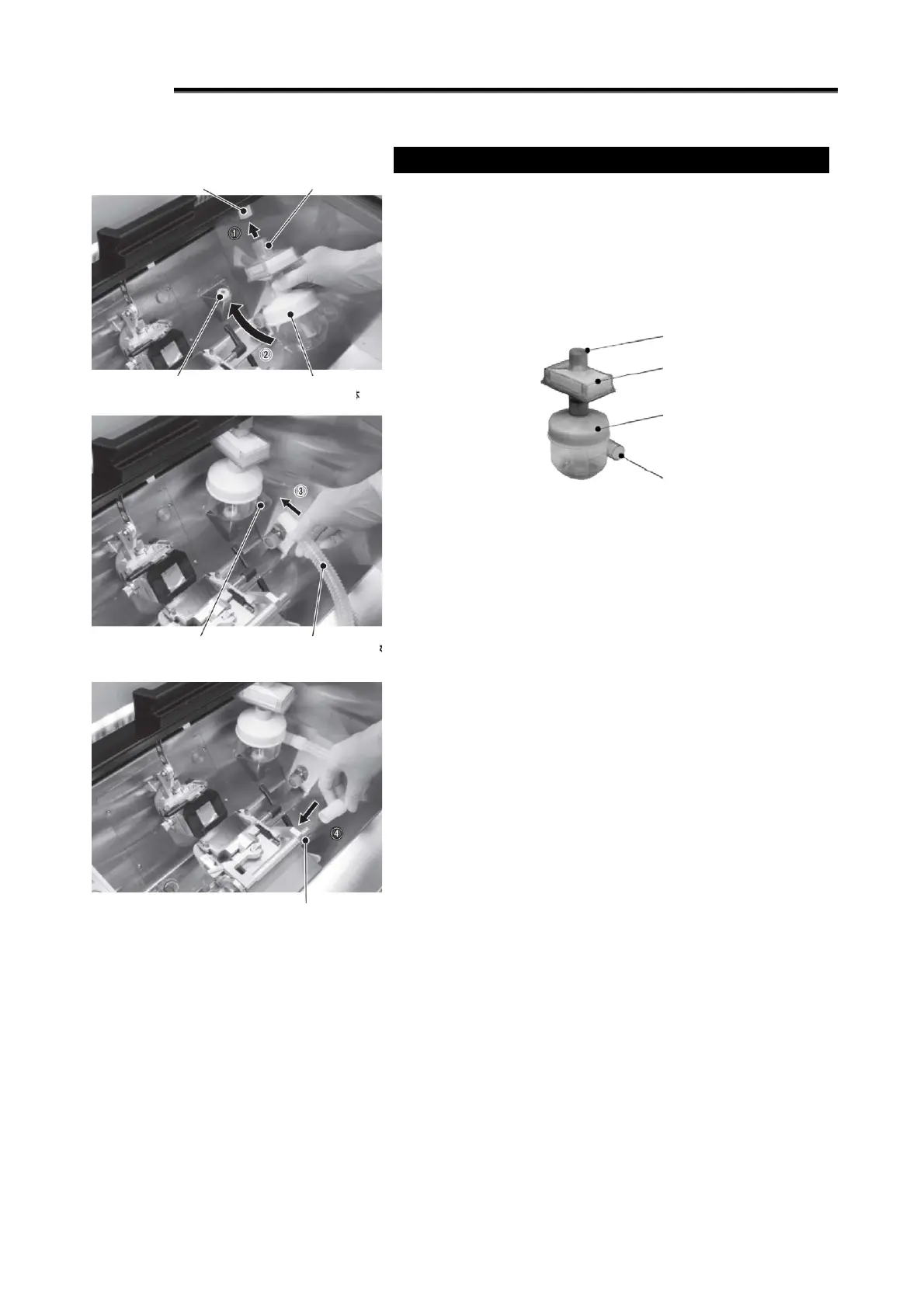

1. Connect the connection port on the vacuum unit to the
instrument-side connection port in the chamber [1].
Using the connected part [1] as the axis, put the vacuum filter set on
the vacuum filter setting base [2].
2. Connect the vacuum head connection hose to the pre-filter hose
connection port [3].
3. Connect one side of the connected hose to the vacuum hose
attachment port on the blade holder [4].
Connection port on
instrument side
Vacuum
connection port
Vacuum unit
Vacuum hose attachment port
Vacuum filter setting base
Hose connection port
Vacuum head
connection hose
[Vacuum filter set]
Vacuum connection port
Bacteria filter
Pre-filter
Hose connection port
