1-4

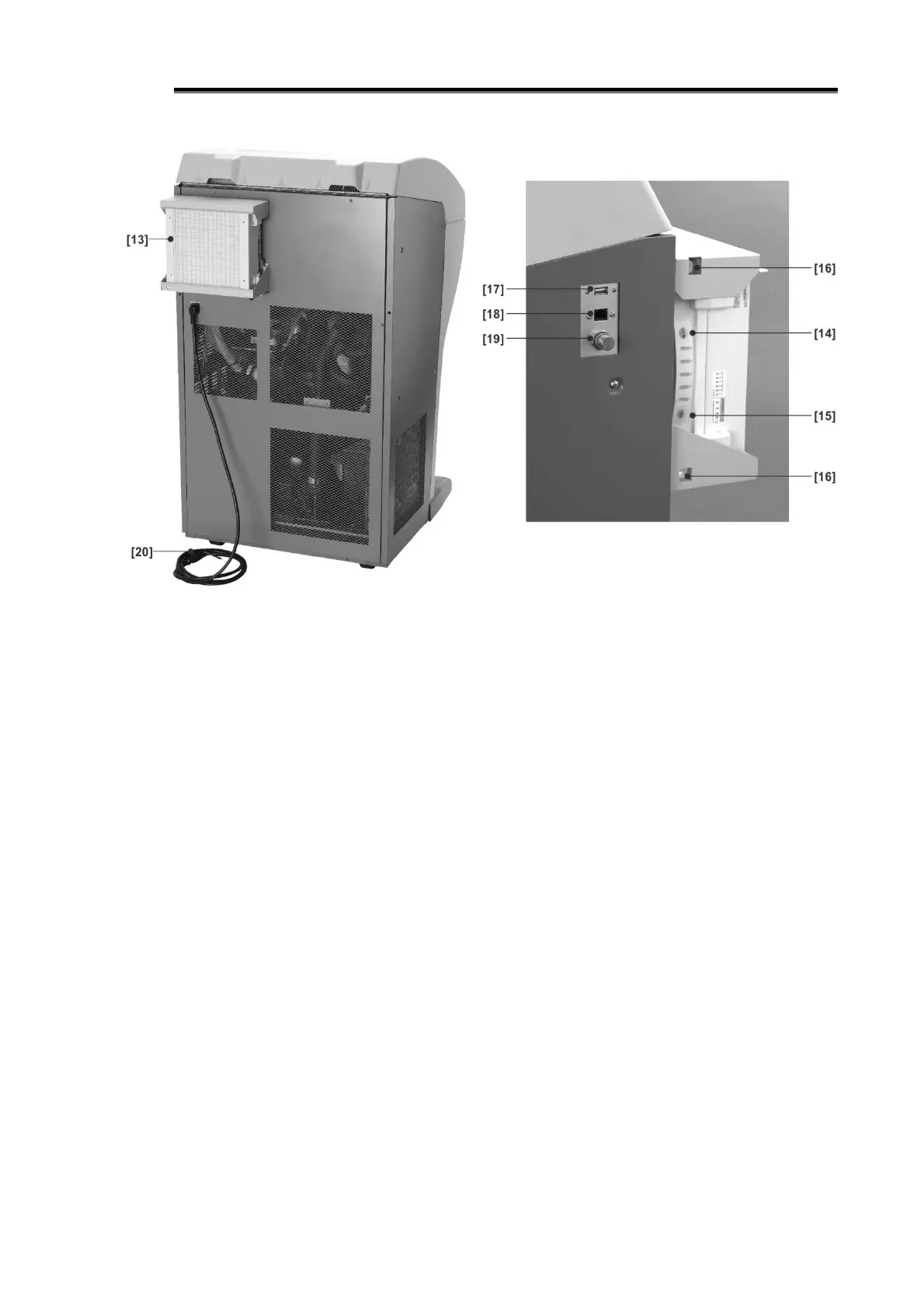

[13] Draft generator (optional)
This optional draft generator prevents contaminated air from diffusing outside the chamber. Refer to p.
2-34 for details.
[14] Filtering power switch for draft generator
This switch is used to supply power to the filtering mechanism of the optional draft generator. Refer to p.
2-34 for details.
[15] Filtering suction force switching button for draft generator
The suction force of the optional draft generator can be set to one of five levels. The air volume can be
checked with the center indicator lamp. Refer to p. 2-34 for details.
[16] Draft generator filter LEDs
The two LEDs tell you when to replace the HEPA filter in the optional draft generator and when the draft
generator is operating abnormally (such as when the fan has stopped).
[17] USB port
A USB memory device can be connected here. Use this port to export data, etc.
[18] LAN port
A LAN cable can be connected here.
[19] Foot switch port (DM only)
This port is used to connect the foot switch. Once the foot switch is connected, motorized sectioning can
be started, paused or stopped using the foot switch. Refer to p. 1-9 for details.
[20] Power cable
