Date Code 990215 Additional Installation Details 2-5
SEL-351P Manual Técnico
section in the SEL-351P Quick-Start Installation and User’s Guide for voltage input polarity
details:
• 120 Vac power (pins 8 [+] and 4 [-], POWER connector J6)
• VA (pins 10 [+] and 5 [-], VOLTAGES connector J3)
• VB (pins 9 [+] and 4 [-], VOLTAGES connector J3)
• VC (pins 8 [+] and 3 [-], VOLTAGES connector J3)
• VS (pins 6 [+] and 1 [-], VOLTAGES connector J3)
DWG: M351P028
R
E
C
L
O
S
E
R
SEL-351P
120 Vac
Power
VSVCVBVA
1
Source Load
Control
Cable
(120 Vac
Power)

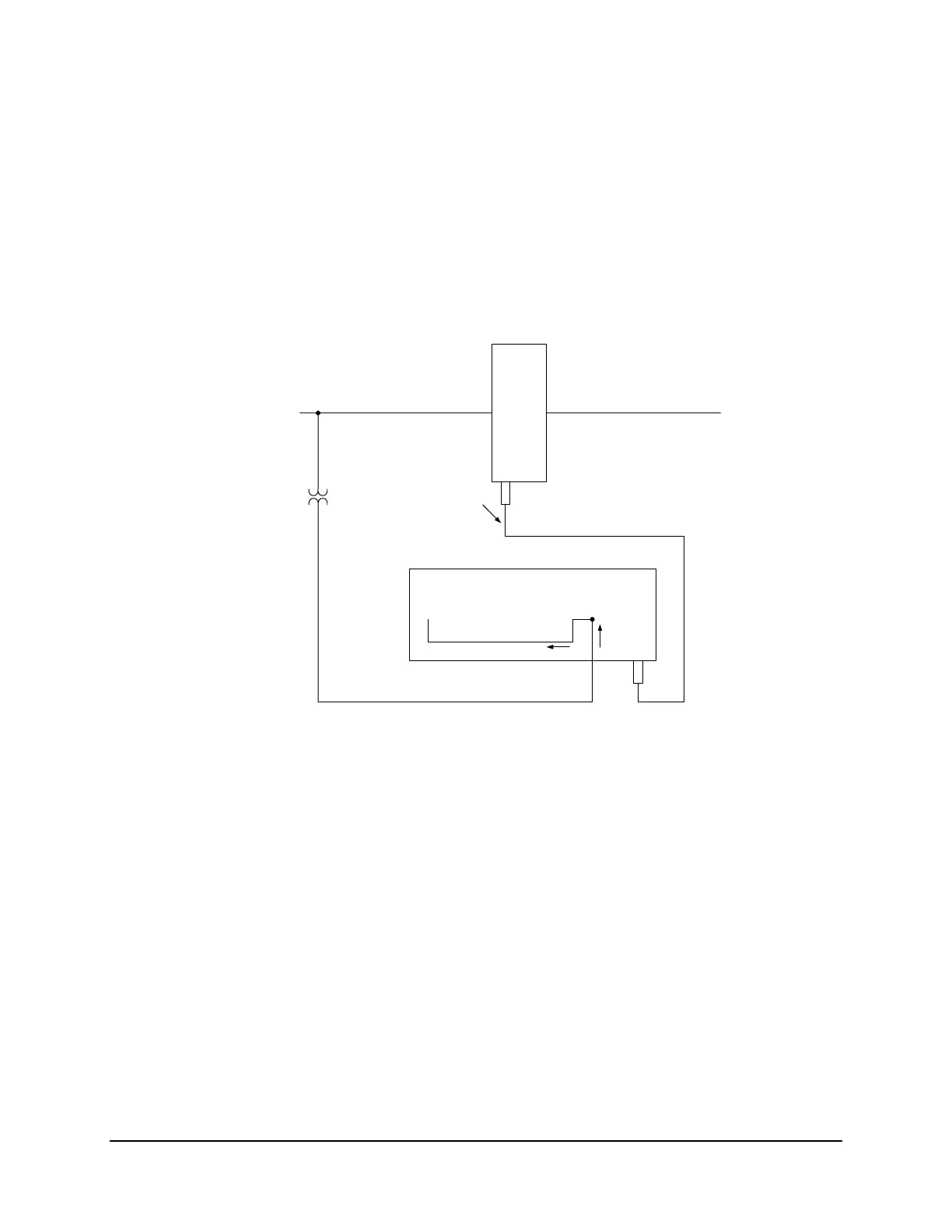

Figure SECTION 2: .1: Installation with Only 120 Vac Power (traditional
installation)
