Date Code 990215 Inputs, Outputs, Timers, and Other Control Logic 7-7
SEL-351P Manual Técnico

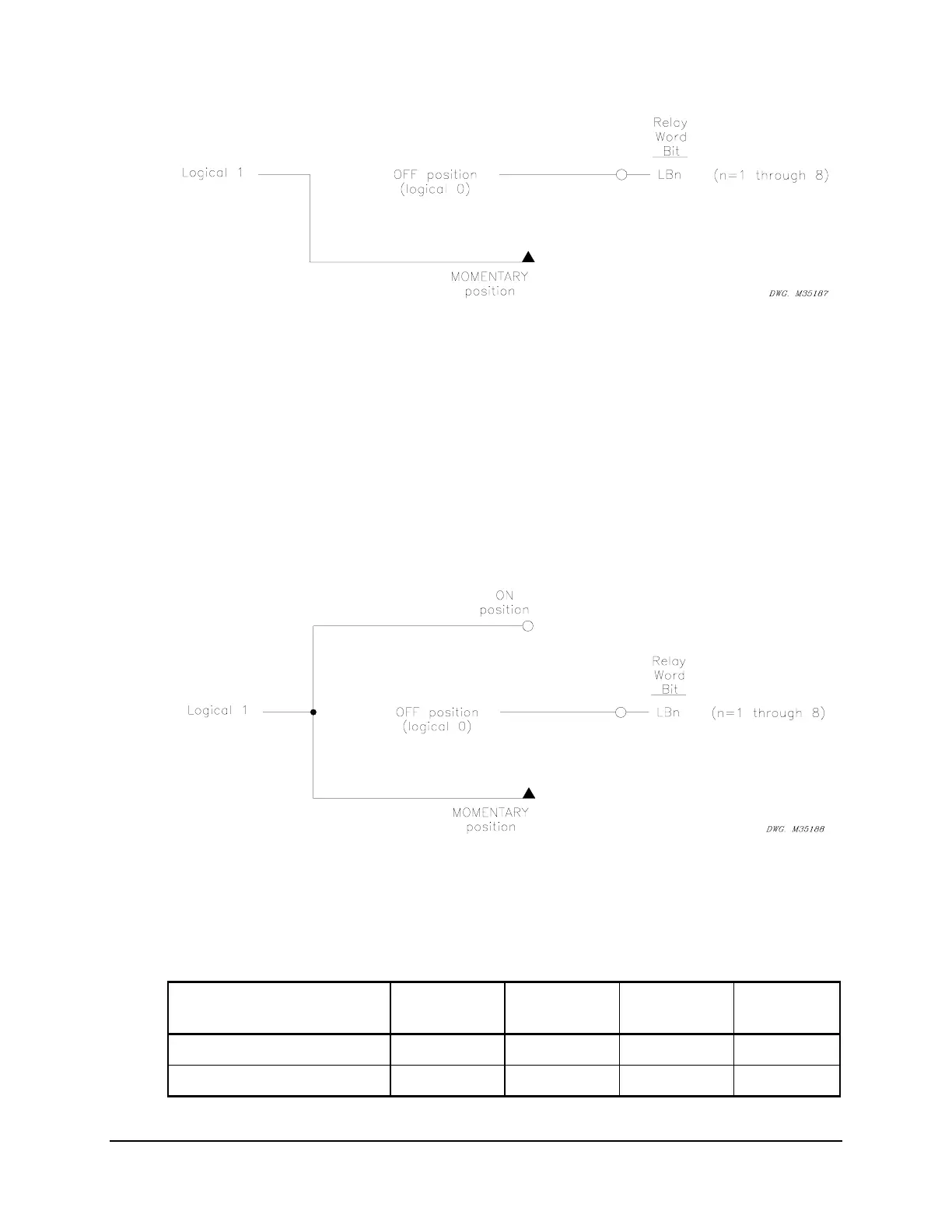

Figure SECTION 7: .5: Local Control Switch Configured as an
OFF/MOMENTARY Switch
ON/OFF/MOMENTARY Switch
The local bit LBn:
is in either the ON (LBn = logical 1) or OFF (LBn = logical 0) position
or
is in the OFF (LBn = logical 0) position and pulses to the MOMENTARY (LBn = logical 1)
position for one processing interval (1/4 cycle).
Figure SECTION 7: .6: Local Control Switch Configured as an
ON/OFF/MOMENTARY Switch
Table SECTION 7: .2: Correspondence Between Local Control Switch Types
and Required Label Settings
Local Switch Type
Label NLBn
Label CLBn
Label SLBn
Label
PLBn
ON/OFF X X X
OFF/MOMENTARY X X X
