3-10 Overcurrent, Voltage, Synchronism Check, and Frequency Elements Date Code 990430

SEL-351P Manual Técnico

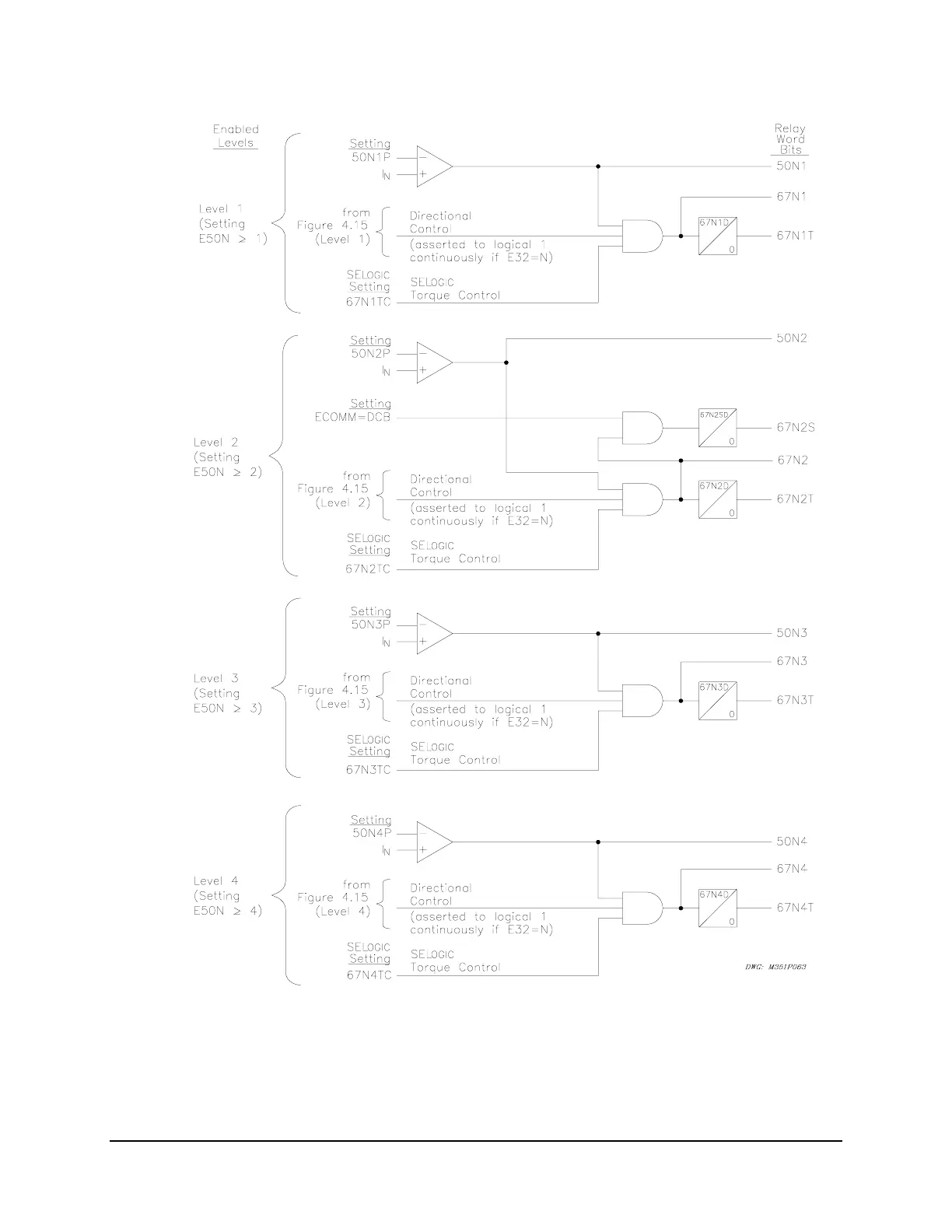

Figure SECTION 3: .8: Levels 1 through 4 Neutral Ground Instantaneous/Definite-

Time Overcurrent Elements (with Directional Control Option)
