Date Code 990430 Overcurrent, Voltage, Synchronism Check, and Frequency Elements 3-15

SEL-351P Manual Técnico

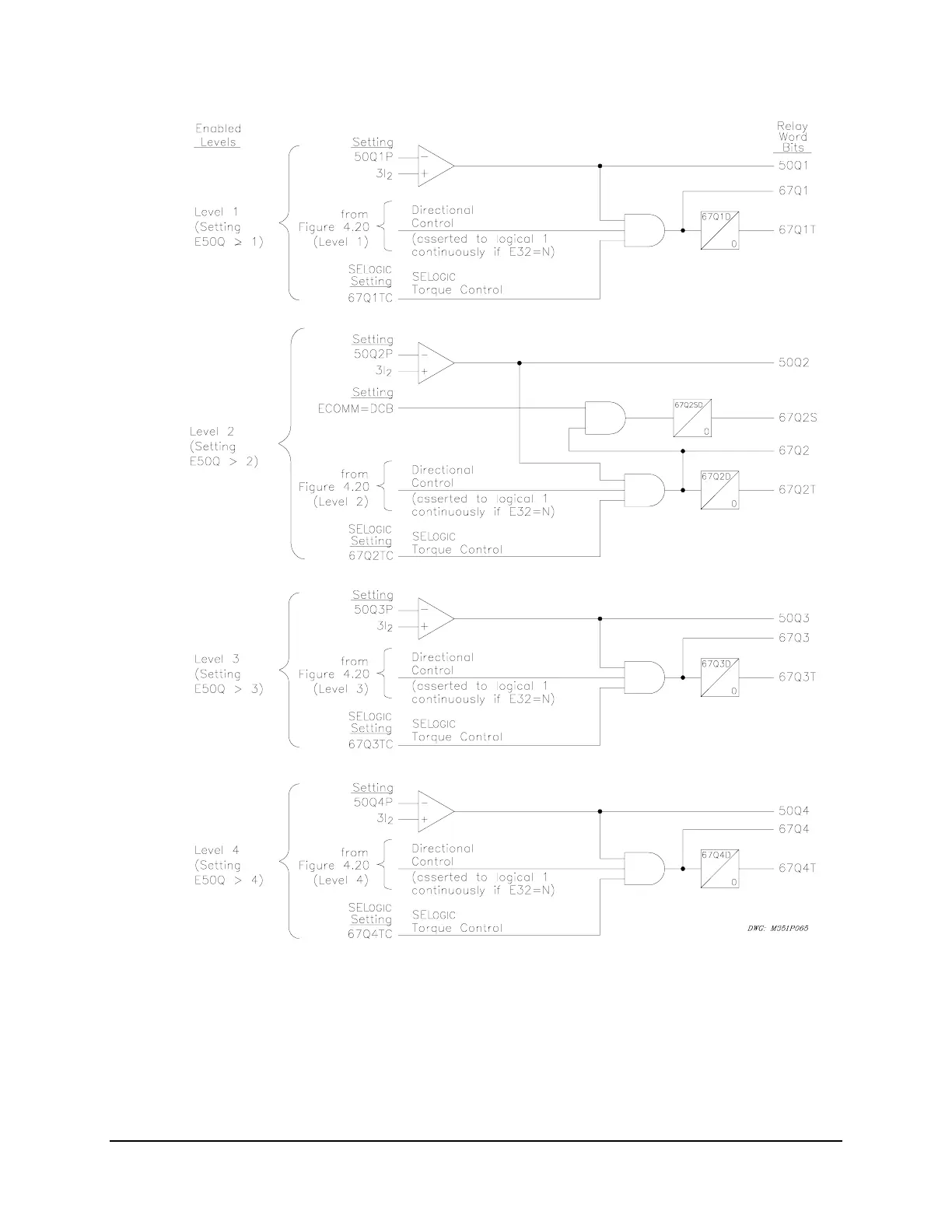

Figure SECTION 3: .12: Levels 1 through 4 Negative-Sequence

Instantaneous/Definite-Time Overcurrent Elements (with Directional Control

Option)
