4-26 Loss-of-Potential, Load Encroachment, and Directional Element Logic Date Code 990430

SEL-351P Manual Técnico

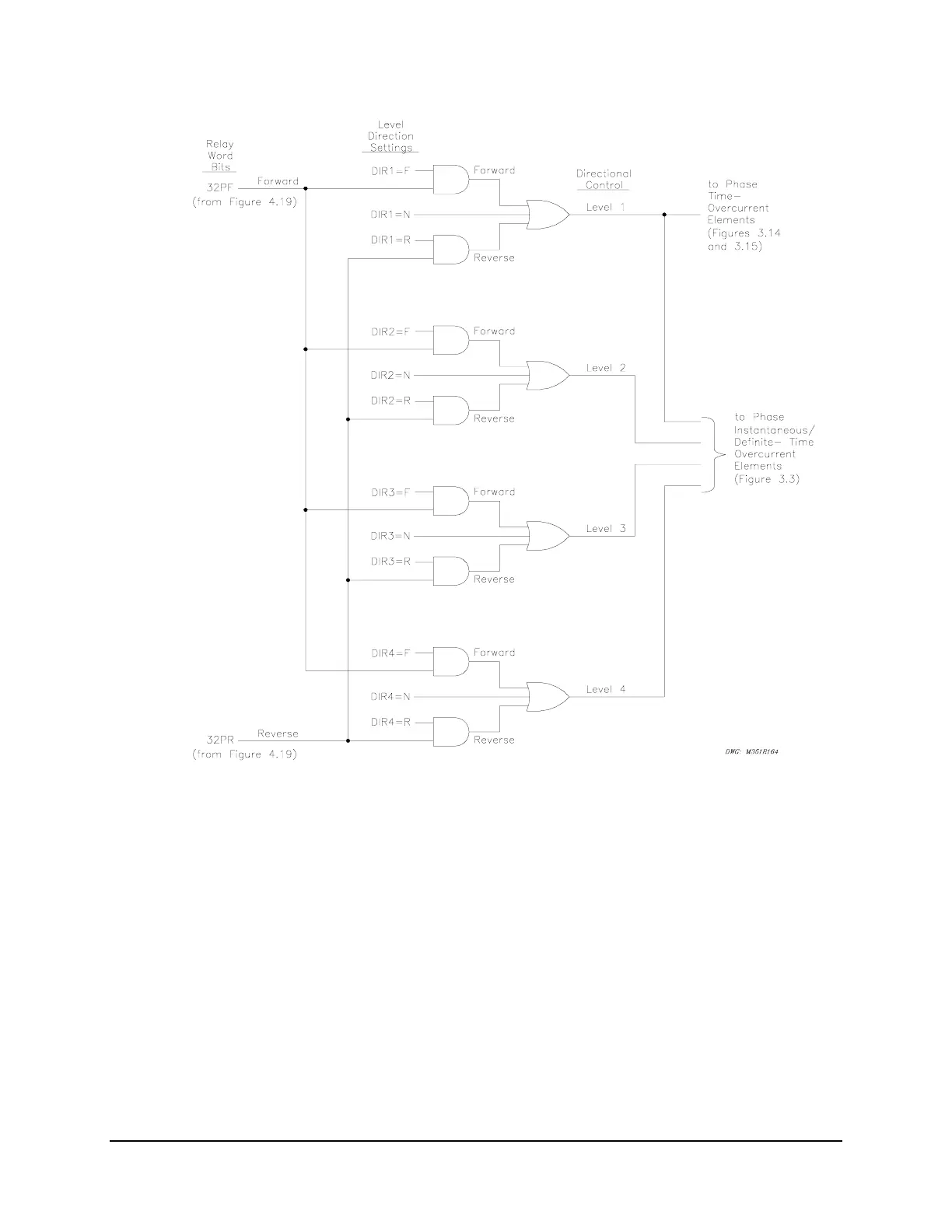

Figure SECTION 4: .21: Direction Forward/Reverse Logic for Phase Overcurrent

Elements
