Date Code 990430 Setting the SEL-351P Recloser Control 9-5
SEL-351P Manual Técnico

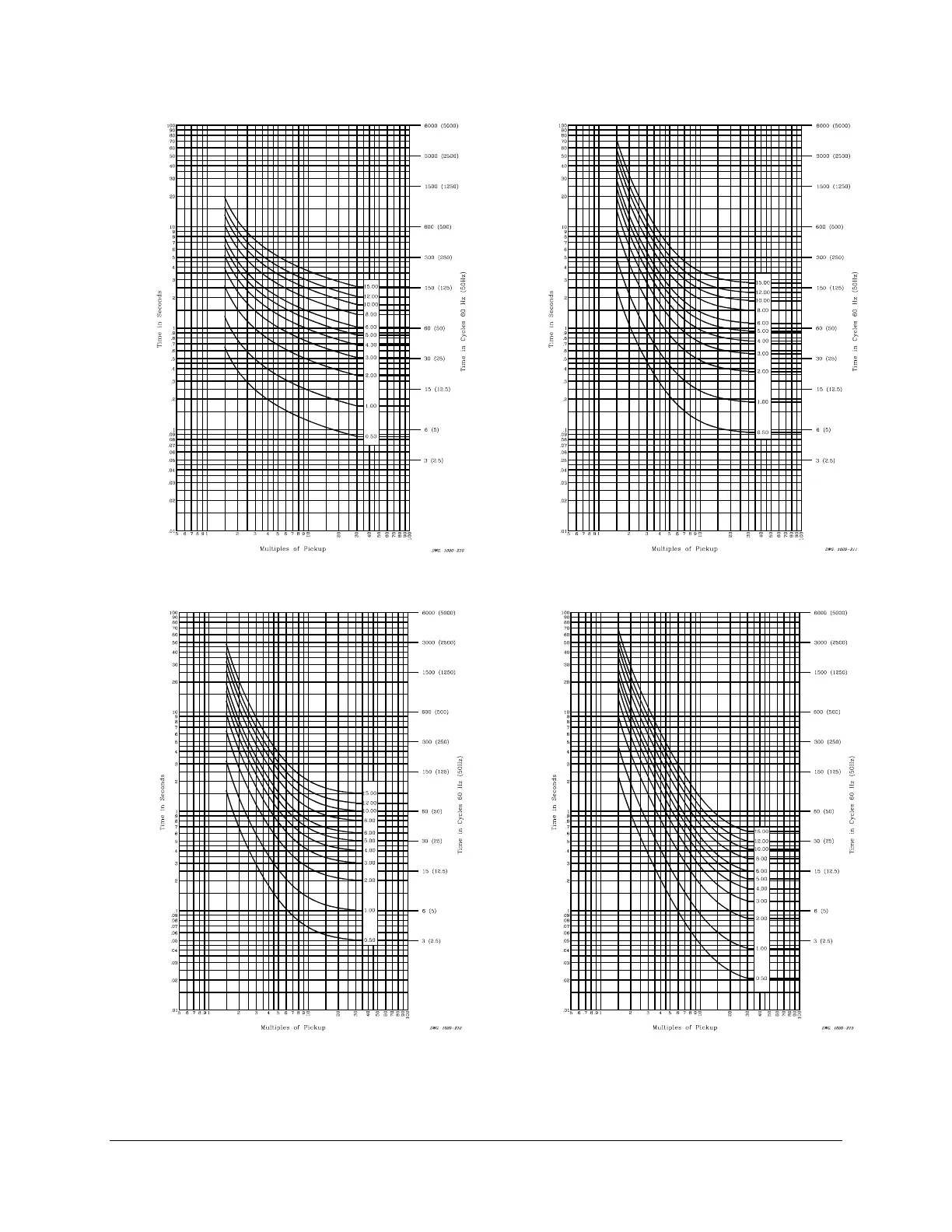

Figure SECTION 9: .1: U.S. Moderately
Inverse Curve: U1
Figure SECTION 9: .2: U.S. Inverse
Curve: U2
Figure SECTION 9: .3: U.S. Very Inverse
Curve: U3
Figure SECTION 9: .4: U.S. Extremely
Inverse Curve: U4
