Date Code 990215 Additional Front-Panel Interface Details 11-9
SEL-351P Manual Técnico
Display
Points
(SEL
OGIC
Control
Equation
Settings)

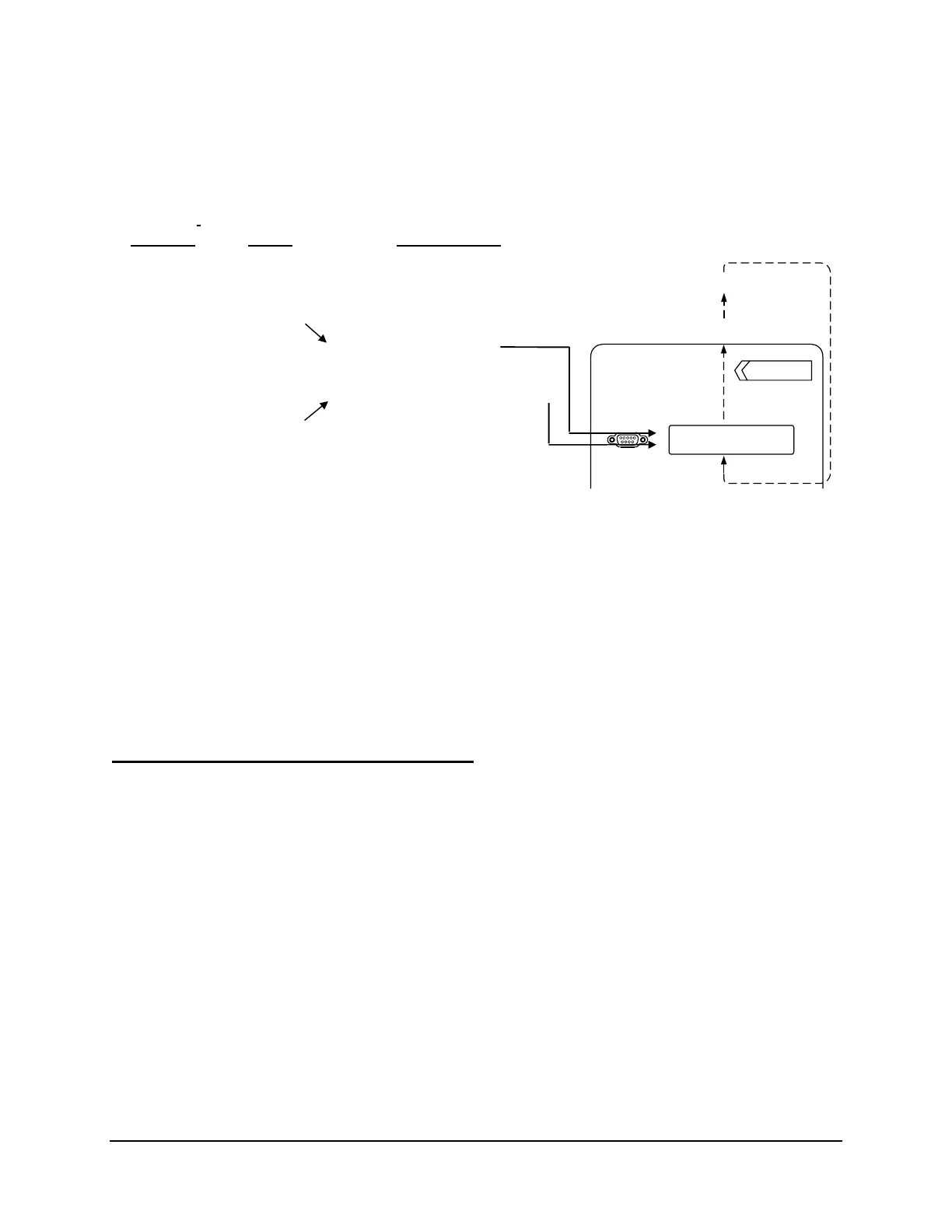

Example
Display
Point
States
Display Point
Label Settings
DP2 = LB1
DP4 = IN101
= logical 0
= logical 1
DP2_1 = 79 ENABLED
DP2_0 = 79 DISABLED
DP4_1 = BREAKER CLOSED
DP4_0 = BREAKER OPEN
WHIPP & BOURNE SWIT CHGEAR
1
PANACEA CONTROLE DO RELIGADOR
DWG: MP351P011
IA=50 IB=50
IC=50 IN=0
79 DISABLED
BREAKER CLOSED
Press CNTRL for
Extra Control
SERIAL F
PORTA
In the preceding example, only two display points (DP2 and DP4) and their corresponding dis-
play point labels are set. If additional display points and corresponding display point labels are
set, the additional enabled display point labels join the “2 seconds per screen” rotation on the
front-panel display.
Display point label settings are set with the SET T command or viewed with the SHO T
command via the serial port [see Section 9: Setting the SEL-351P Recloser Control and SHO
Command (Show/View Settings) in Section 10: Serial Port Communications and Commands].
For more detailed information on the logic behind the rotating default display, see Rotating
Default Display in Section 7: Inputs, Outputs, Timers, and Other Control Logic.
Additional Rotating Default Display Example
See Figure 5.17 and accompanying text in Section 5: Trip and Target Logic for an example of
resetting a rotating default display with the TARGET RESET pushbutton.
