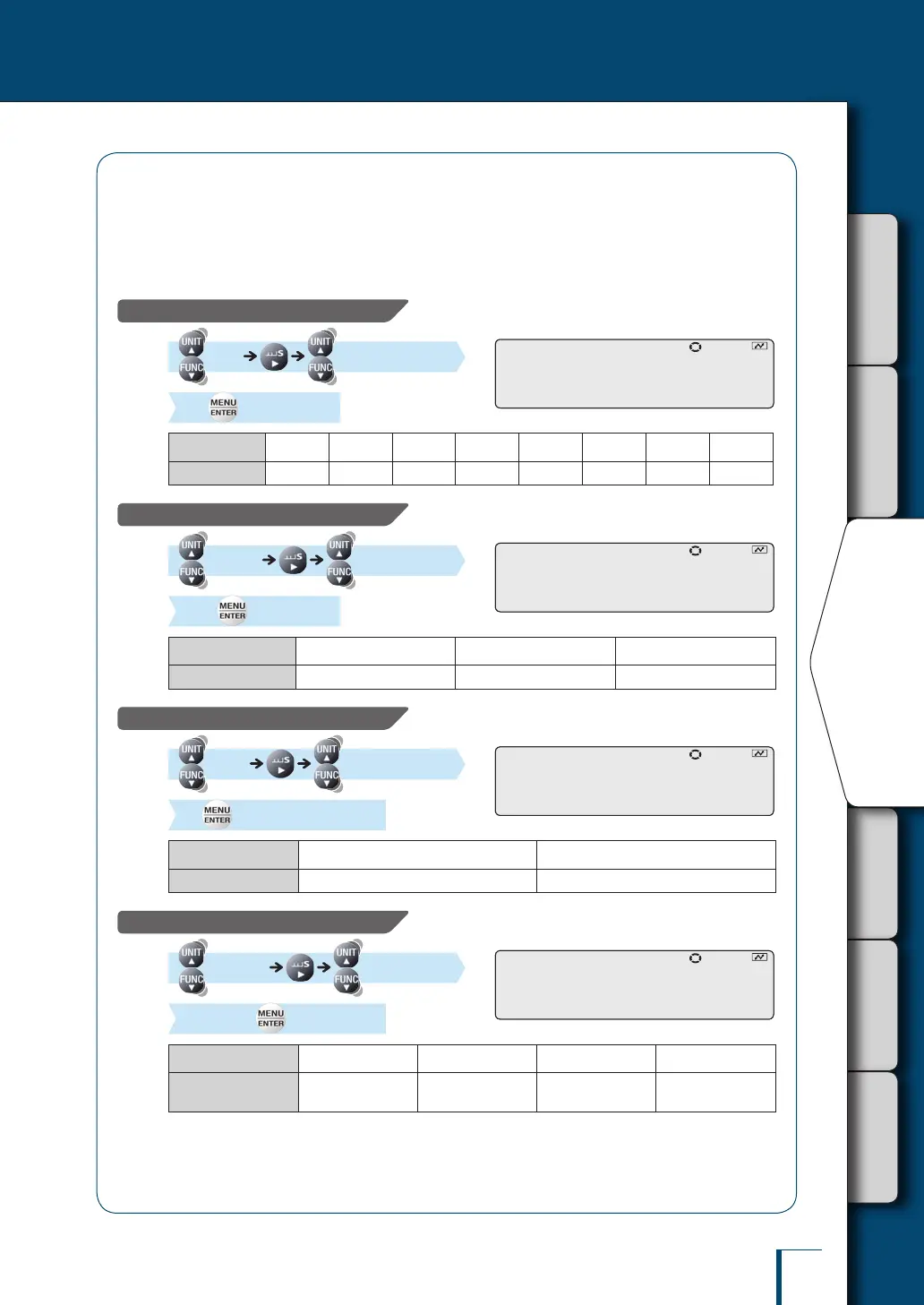

Make the communication settings according to your own
requirements.
Set the following items as necessary.
Setting the baud rate (communication speed)
[BPS] (Select the baud
rate.) [SET]
Indication
B.300 B.600 B.1200 B.2400 B.4800 B.9600 B.19.2K B.38.4K
Baud rate
300 bps 600 bps 1200 bps 2400 bps 4800 bps 9600 bps 19.2k bps 38.4k bps
Setting the parity (bit length)
[PARITY] (Select the
parity.) [SET]
Indication
pP.NONE ppP.ODD ppP.EVEN
Parity (bit length)
No parity, 8-bit length Odd parity, 7-bit length Even parity, 7-bit length
Setting the stop bit
[STOP] (Select the stop
bit.) [SET]
Indication
S. 1 S. 2
Stop bit
Stop bit = 1 bit Stop bit = 2 bits
Setting the handshake
[HAND.SHK] (Select the type
of handshake.) [SET]
Indication
HS.OFF HS.HW HS.SW HS.TIM
Handshake
No handshake
Hardware
handshake
Software
handshake
Timer handshake
! ! ! !B!P!S ! ! ! !B!P!S
!P!A!R!I!T!Y !P!A!R!I!T!Y
! ! !S!T!O!P ! ! !S!T!O!P
H!A!N!D.S!H!KH!A!N!D.S!H!K
