TW/TX Series

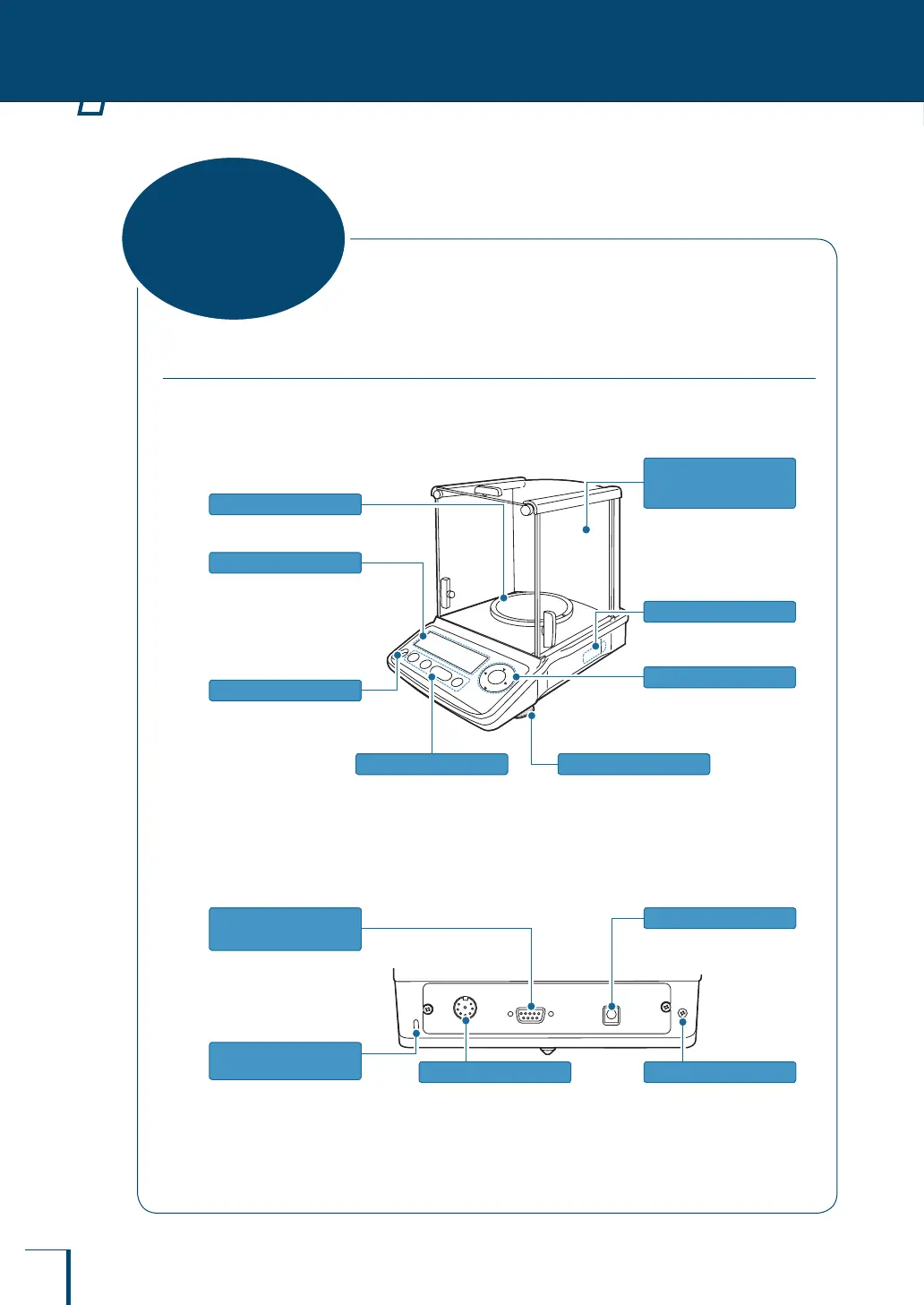

The TW/TX Series comprises toploading electromagnetic balances with UniBloc weighing
mechanism.
Main body
Even a slight breeze may affect
measurement, so the windbreak
is provided to avoid air
movements in the surroundings
inuencing the weight reading.
Adjust to level the balance.
(^ page 29)
Indicates the level of the
balance.
(^ page 29)
Level
Level screws
Windbreak
(included with small
pan models only)
Used to tare the balance,
perform calibration and print.
(^ page 22)
Operation keys
Shows the weighing results,
information for making
function settings, the current
function setting, errors, codes
and other information.
(^ page 23)
Display panel
Used to specify function
settings and menu operations.
(^ page 22)
Menu operation keys
The model name and serial
number are stated here.
Product label
Place the object to be weighed
here.
Pan
Back of the unit
This is a slot in which a lock can
be tted for anti-theft purposes.
The socket conforms to the
specications of the Kensington
company.
Used to connect to a printer
(e.g. EP-80 or EP-90).
(^ page 124)
Kensington Security
Slot
DATA I/O connector
DC IN connector
Used to make a serial
connection to a PC or other
equipment.
RS-232C connector
(9-pin socket)
Ground terminal
Connect this terminal to
ground if necessary.
Used to connect an AC
adapter for power supply.
1
BEFORE WEIGHING
Name and Function
of Components
