Shimadzu TXB2201L - Adjusting the Level of the Balance

USING THE
BALANCE
USING MORE CONVENIENTLY MAINTENANCE
TROUBLESHOOTING
FOR YOUR
INFORMATION
BEFORE
WEIGHING
29
Continued on next page

2
Place the pan supporter.
3
Place the pan on the pan supporter.
Align the two pan notches with the left and right
on the balance main body.

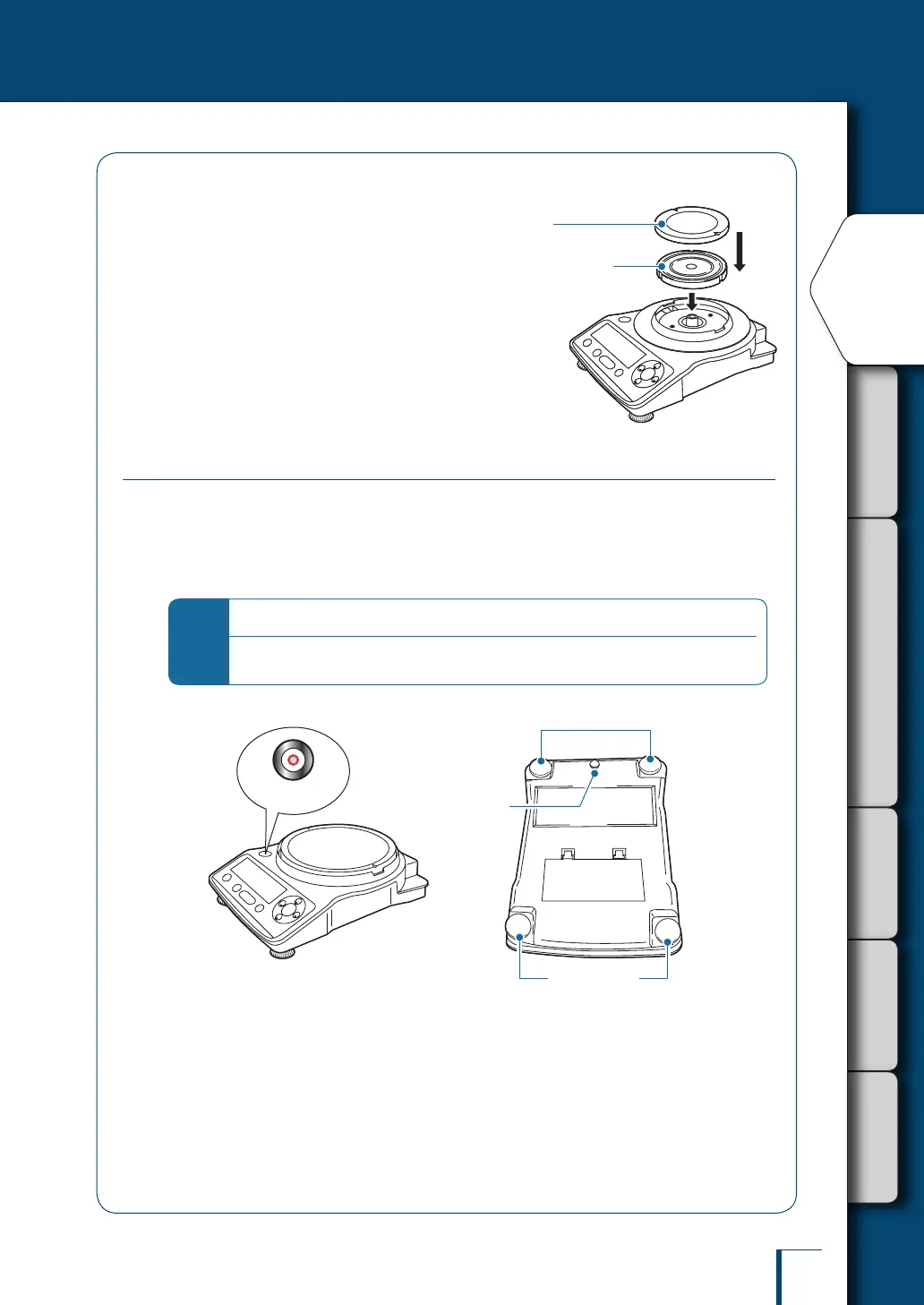

Adjusting the Level of the Balance
The level of this balance is maintained by three-point support involving a single xed foot at
center rear on the underside of the main body and two level screws on left and right at the front
of the underside of the main body.
The large pan model also has level screws on left and right at the back, but they are used in an
auxiliary role to prevent the balance from tilting when a heavy sample is placed on the pan.
*
Operation of the level screws
Turning the level screws clockwise, as viewed from above, extends them and raises the
balance, while turning them counterclockwise retracts them and lowers the balance.
Fixed foot
Level screws (auxiliary)
Large pan model only
Level screws
Level
Level the balance by following the procedure below.
1
Turn all the level screws (total of four at front and rear)
counterclockwise as viewed from above until they come to a gentle
stop.
The balance will now be tilting toward the front, with the auxiliary level screws at the back of
the large pan model lifted off the installation surface.

Pan
Pan supporter
Pan
Pan supporter
