260 FLOWSIC600 · Technical Information · 8010125 V 4.0 · © SICK AG
Appendix
Subject to change without notice

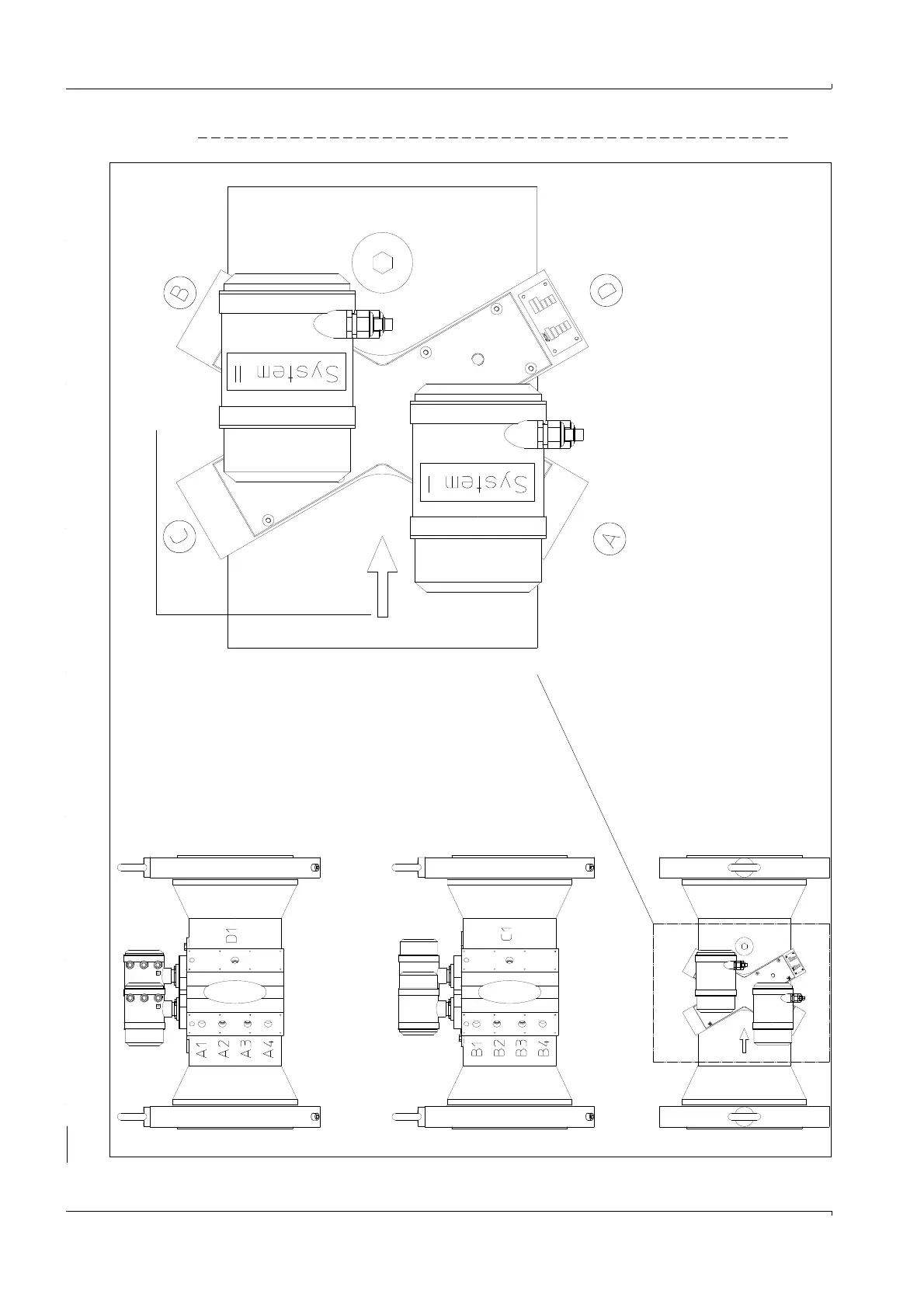

Figure 125 Outline drawing FLOWSIC600 2plex
Arrow defines positive flow direction
System I Probes A1 - B1 A2 - B2 A3 - B3 A4 - B4
System II Probes C1 - D1
