Appendix
FLOWSIC600 · Technical Information · 8010125 V 4.0 · © SICK AG 261
Subject to change without notice

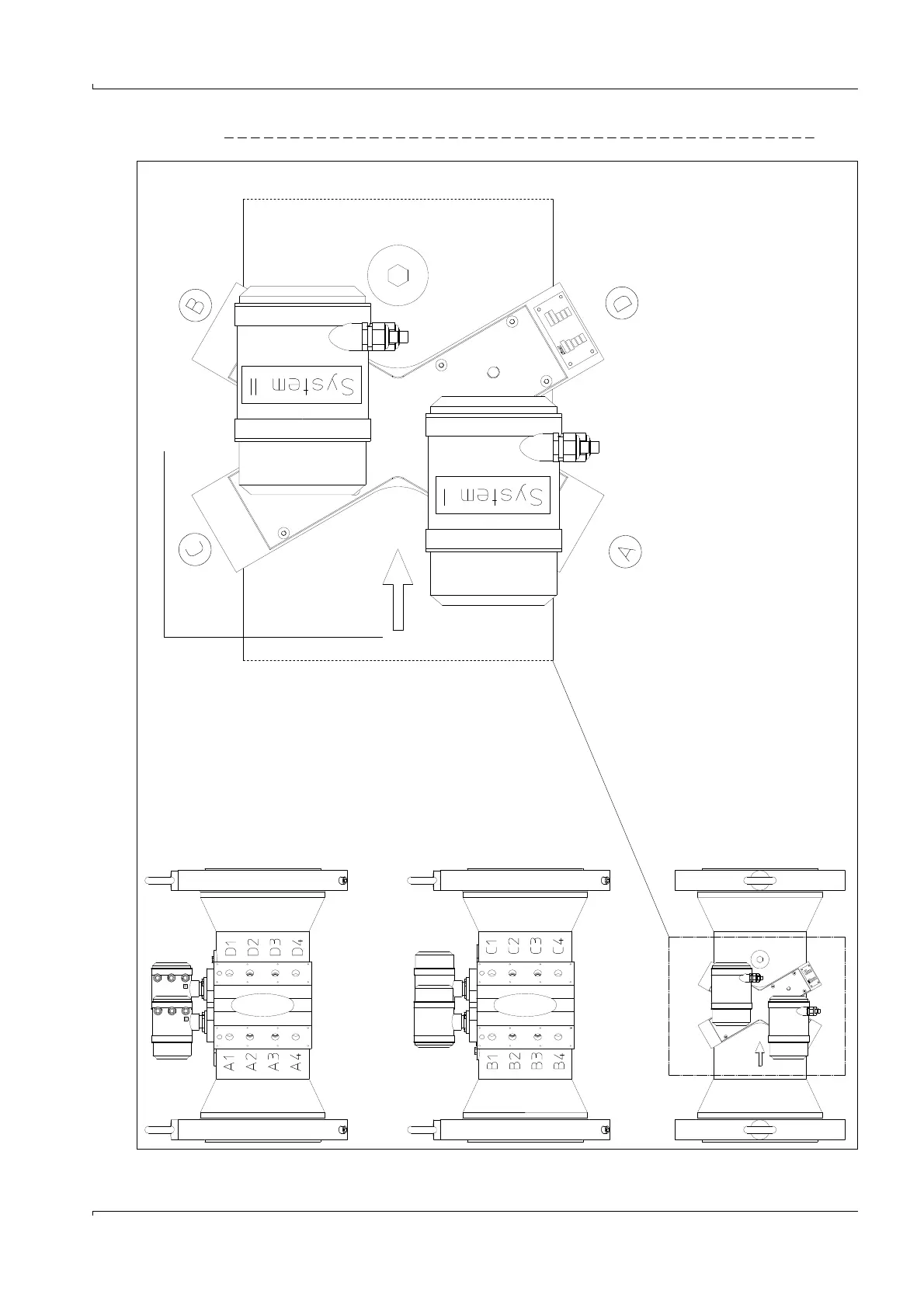

Figure 126 Outline drawing FLOWSIC600 Quatro
Arrow defines positive flow direction
System I
Probes
A1 - B1
A2 - B2
A3 - B3
A4 - B4
System II
Probes
C1 - D1
C2 - D2
C3 - D3
C4 - D4
