SICK FLOWSIC600 Technical Information

Product Description
FLOWSIC600 · Technical Information · 8010125 V 4.0 · © SICK AG 35
Subject to change without notice
Wiring of digital outputs
The digital output (terminals 31/32, 51/52, 41/42, 81/82) can be wired as Open
Collector or as NAMUR contact for connection to a NAMUR amplifier.
The outputs are wired to "NAMUR" on delivery, unless "Open Collector" was specified in the
purchase order.

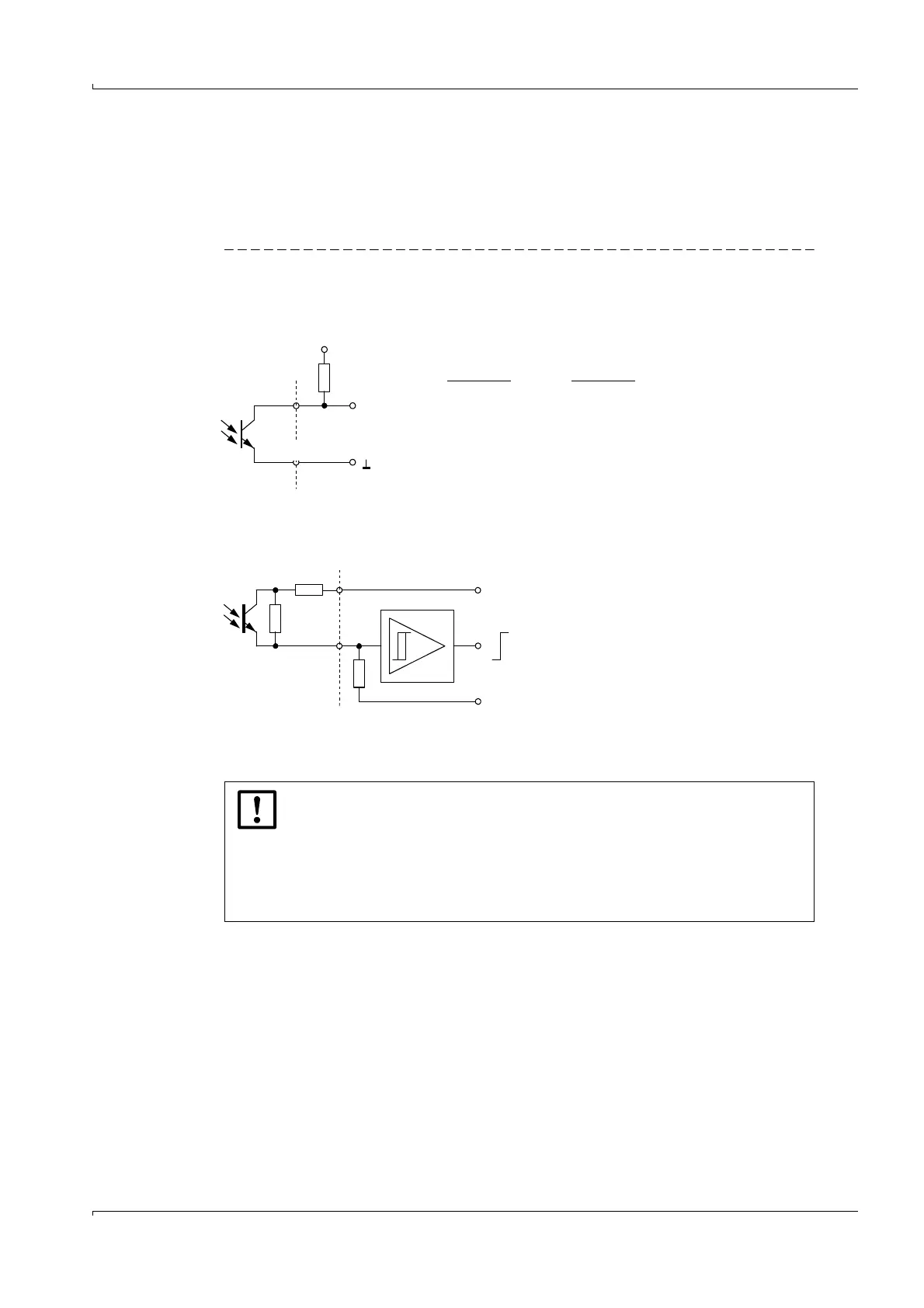

Figure 10 Wiring of digital outputs
U
S
I
B
= 100 mA
R
L
Open Collector
R
L

U
S
- 2 V
0.1 A
U
S
- 2 V
0.01 A
1 k
1 k
10 k
+8.2 V DC
0 V
NAMUR
NOTICE:
● An operating current range of 20 mA is recommended.
● I
max
at the open collector connection must not exceed 100mA., otherwise
the output may be destroyed.
● The maximum possible frequency of the impulse output depends on R
L
and
the cable length (cable capacitance).
● A higher frequency requires a lower R
L
. For this case a low capacitance cable
is recommended.
