5.7.11.11 Limit values
Specialist: System edit: Limit values
In this menu the limits that can be interrogated by Specialist: System edit: Zero/Calib/
Purge programs/other programs are defined. The menu is based on “Specialist: System
edit: Results”.
The limits correspond to the units displayed.
There are two lower and two upper limits.

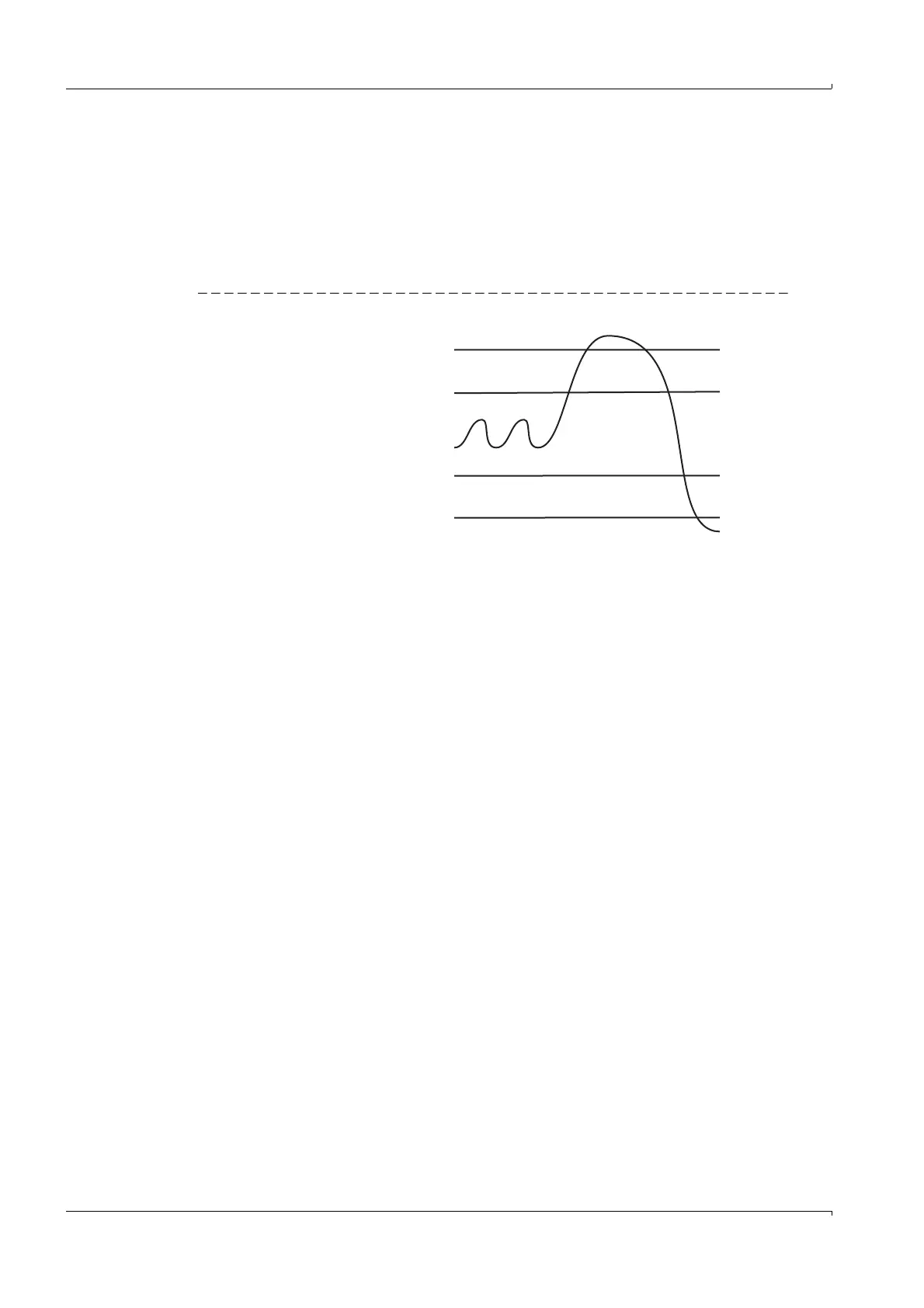

Figure 19 Limit values
Values falling below or exceeding the limit can be interrogated in Specialist: System edit:
Zero/Calib/Purge/other programs with the variables AH, AL, WH, WL.
There is no hysteresis.
The limits with a mark () are verified.
Alarm high (AH)
Warning high (WH)
Measured value
Warning low (WL)
Alarm low (AL)
