3.3 Remote control
3.3.1 Ethernet with TINY program

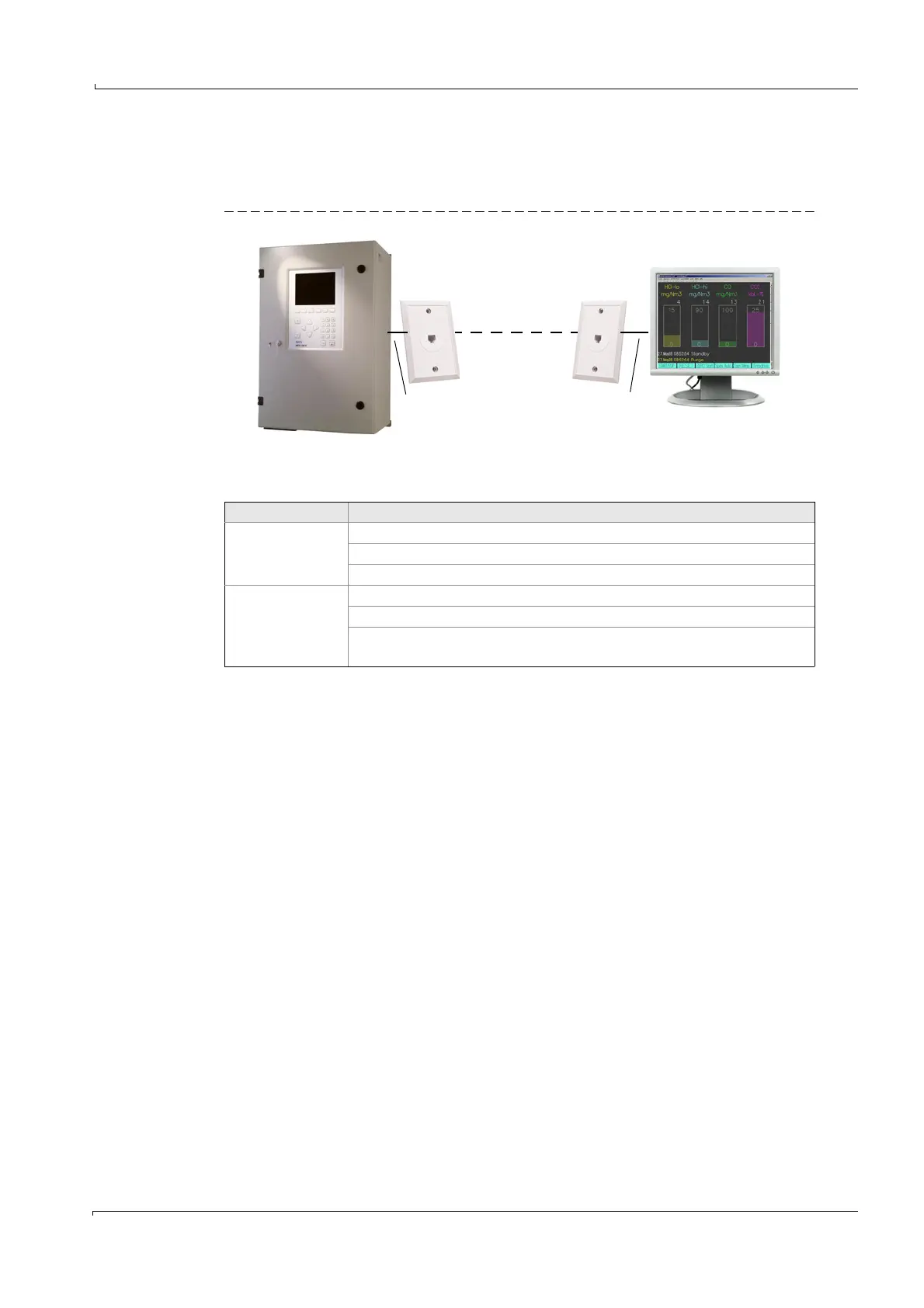

Figure 10 Remote control via Ethernet
Equipment
3.3.1.1 Connection on MCS100E side
 Connect the MCS100E to the Ethernet.
3.3.1.2 Connection on PC side
 Connect the PC to the Ethernet.
3.3.1.3 Program start on MCS100E side
 First-time start:
1 The MCS100E starts.
2 Exit the MCS100E program (
→ p. 46, §5.4.2).
You are at DOS level.
3 Switch off the watchdogs (
→ p. 109, §7.8).
4 Call up: TSETUP <IP_ADDRESS> <IP_NETMASK> <IP_ROUTER>
The addresses depend on the customer network
Example:
- IP_ADDRESS : 192.168.0.x (x = 0 .. 9)
- IP_NETMASK: 255.255.255.0
- IP_ROUTER: 192.168.0.1
Call-up: TSETUP 192.168.0.1 255.255.255.0 192.168.0.1
Is it OK? [y,n] : <y> <ENTER> (saved in “C:\NOVELL\CLIENT32\NET.CFG”).
5 Switch off the MCS100E.
 Then automatic start when the MCS100E is switched on.
MCS100E
Ethernet
PC
Ethernet
line
Ethernet
line
Control unit Equipment
MCS100E side
Ethernet interface RJ45 for MCS100E (Part No. 2043636)
Software package “TINY” (Part No. 2040228) (CD-ROM) (pre-installed)
Ethernet connection RJ45
PC side
Ethernet connection
Software package “TINY” (Part No. 2040228) (CD-ROM)
PC with Java (JDK or JRE) (Java JDK is included in the “TINY” software
package)
