Maintenance and care
Then remove the optics cover.
Check whether the mirror on the motor is clean and remove any contamination with an
optic brush.
Take the new optics cover out of the packaging and remove the protection for the seal.
Remove any remnants of packaging.
Place the optics cover on the safety laser scanner and fit the new fixing screws to .
When fitting the new cover, ensure the arrow on the top of the cover points to the front
and that the optics cover is fully in contact without a gap.
Then tighten the screws with the tightening torque set.
Make sure the optics cover is free of dirt and that it is not damaged.
Re-commissioning the S300:
Correctly re-mount the S300 (see chapter 5 “Mounting” on page 56).
Connect the S300 system plug.
After power up the S300 automatically reads the saved configuration from the system
plug (see section 9.3 “Re-commissioning” on page 102).
Then perform an optics cover calibration with the aid of the CDS.

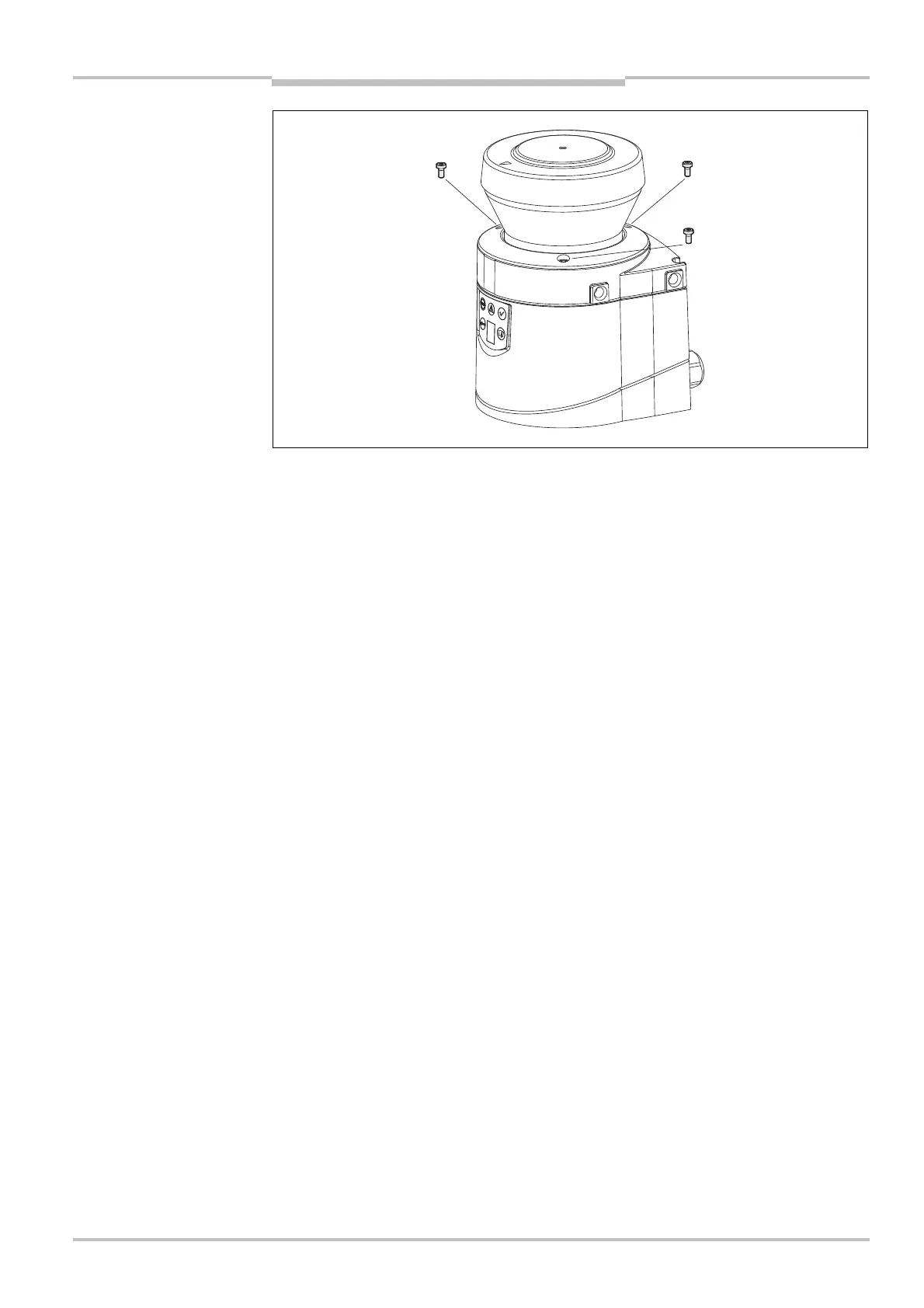

screws for the optics cover
