SICK S300

Operating instructions Chapter 12
S300
8010948/YY96/2016-02-17 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 133
Subject to change without notice
Technical specifications
Fig.
85
:

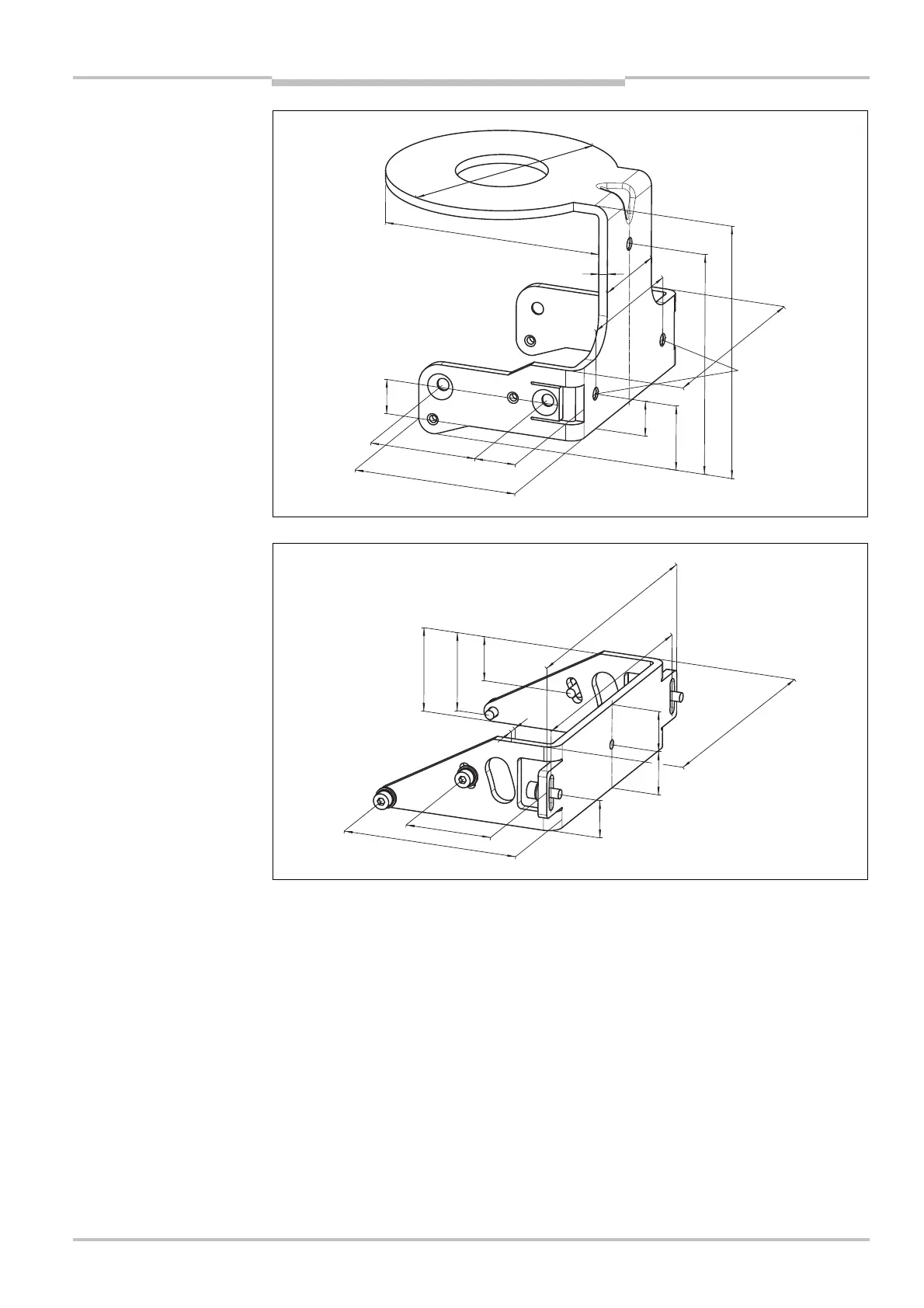

Dimensional drawing,
mounting kit 1b (mm)
Fig.
86
:
Dimensional drawing,
mounting kit 2 (mm)
110.2

100
DIN746F5
15.7
49
74.7
15.9
109.6
4
48
73
19.7
78.2
40.7
37.7
33.4
18
18
19.7
139.4
130
118.5
4
