E3G060 Control module ”monitored” (Part No 542539)
144
Building Technologies 001260_k_en_--.doc
Fire Safety & Security Products 02.2005

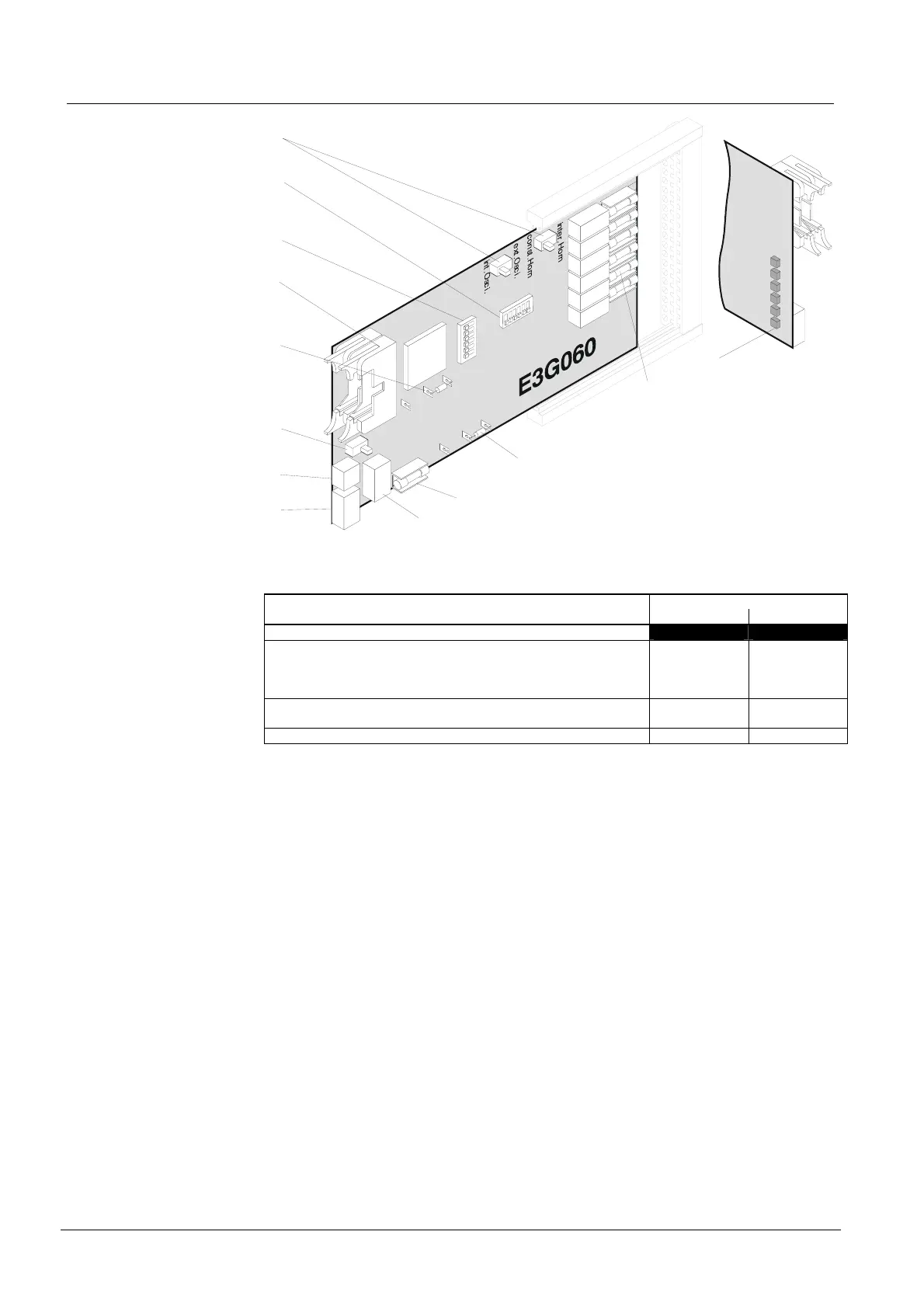

35.4 Important components (Part No 542539)
1
2
3
4
5
6
7
8
9
10
11
12
13
H1
H6
F1
F3
F5
F7
F9
F11
S6
S3
ST1
S2
F19
X12
Y12
K3
1
1
ON
ON
ON
1
4
K2
1
2
1
4
K1
Y11
X11
S8
S7
ASIC
I-BUS
Legend:
1 Programming switch "S7" & "S8": Horn mode setting
Programming switch Function
S7 S8
constant horn output (factory setting) const. Horn int. osci
intermitted horn output for all horns with internal oscillator (1sec. on
/ 1sec. off)
horns driven by other E3G060 cards can be synchronized, by
through contacting K2 plug contacts
inter. Horn int. osci
external oscillator input to drive all horns in intermitted mode with
external oscillator
inter. Horn ext. osci
not used const. Horn ext. osci
Note: Switch ”S7” defines global horn mode for all horn outputs. Invert this mode
(constant / intermitted) individually for each horn output by connecting common
(X1-1) with corresponding control input (X1-15.. 20).
2 Emergency operation –> Programming switch "S6": Allocation activation by
"Emergency operation mode"
If required, the 6 control lines can also be activated even if an alarm is given during
system malfunction (emergency operation). This function can be selected for each
control line via the "S6" programming switch.
Affiliation: "S6-1" = Control line 1...
"S6-6" = Control line 6
"OFF" Position = Control line is activated in "Emergency operation mode"
