Siemens SIMATIC NET IE/AS-INTERFACE LINK PN IO User Manual

1 Technical Description, Installation Guidelines, Operation
13
IE/AS−INTERFACE LINK PN IO as of hardware version 1, as of firmware version V2.0
Release 08/2018
C79000−G8976−C216−03
1.2 Uses of the Module
PROFINET IO Device and AS-Interface Master
The IE/AS-i LINK is both a PROFINET IO device and AS-Interface master:
S IE/AS-i LINK connects the actuator-sensor interface with PROFINET IO.
S Using the IE/AS-i LINK module, you can access the inputs and outputs of the
AS-i slaves from PROFINET IO Depending on the slave type, you can access
binary values and / or analog values.
The following AS-i slaves can be used:
− Standard slaves / analog slaves / combi slaves
− Slaves with the extended addressing mode
− Slaves with data transfer mechanisms complying with the AS-i specification
V3.0 − Combined Transaction Type (CTT) 1−5.

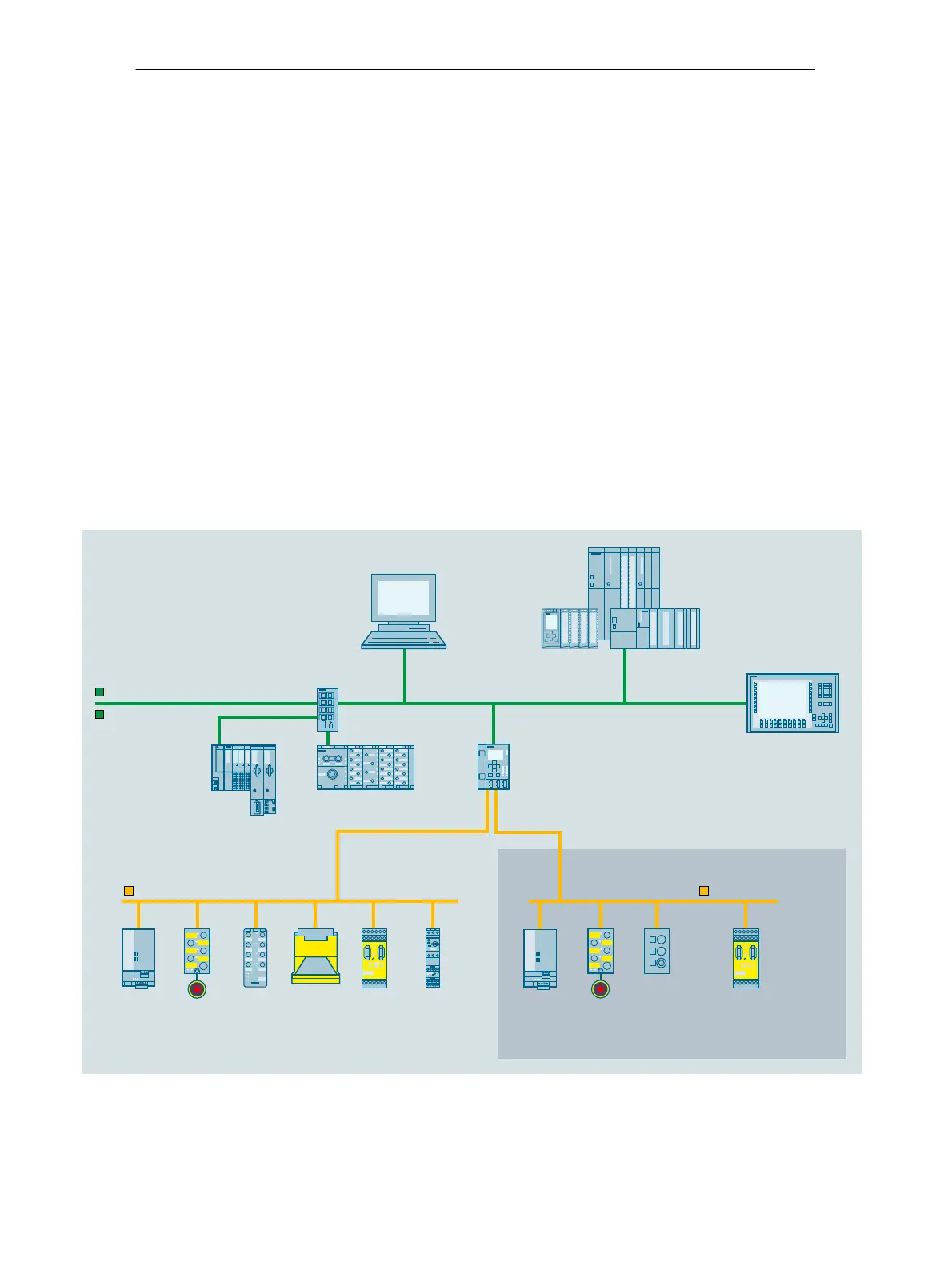

Figure 1-1 Example of a System Configuration with the IE/AS-INTERFACE LINK PN IO (double
master)
Power
supply
Power
supply
When IE/AS-i Link PN IO is used
as double master
Slave
Slave
Safe
slave with
EMERGENCY-
STOP
Safe
slave with
EMERGENCY-
STOP
Laser
scanner
3RA2 load
feeders
IE/AS-i Link PN IO
ET 200pro
ET 200SP
IK10_40017c
SCALANCE
XC208
Industrial Ethernet
PROFINET
AS-Interface
AS-Interface
MSS
ASIsafe
MSS
ASIsafe
SIMATIC
Software Controller
SIMATIC HMI
SIMATIC/
SIMOTION
