Siemens SIMATIC NET IE/AS-INTERFACE LINK PN IO User Manual

1 Technical Description, Installation Guidelines, Operation
20
IE/AS−INTERFACE LINK PN IO as of hardware version 1, as of firmware version V2.0
Release 08/2018
C79000−G8976−C216−03
1.7 Connection Elements
Connectors
The IE/AS-i LINK has the following connectors:
S Two separate connectors for the AS-i cable (on double master)
S One connector for alternative power supply 24 V DC (optional) and functional
earthing
S Two RJ-45 LAN connectors as independent switch ports
Power supply
connector 24 V DC
(alternative)
AS-i line 1
connector
(power supply from
AS-i line 1)
AS-i line 2
connector
(only with
double master)
LAN
connector 1
LAN
connector 2

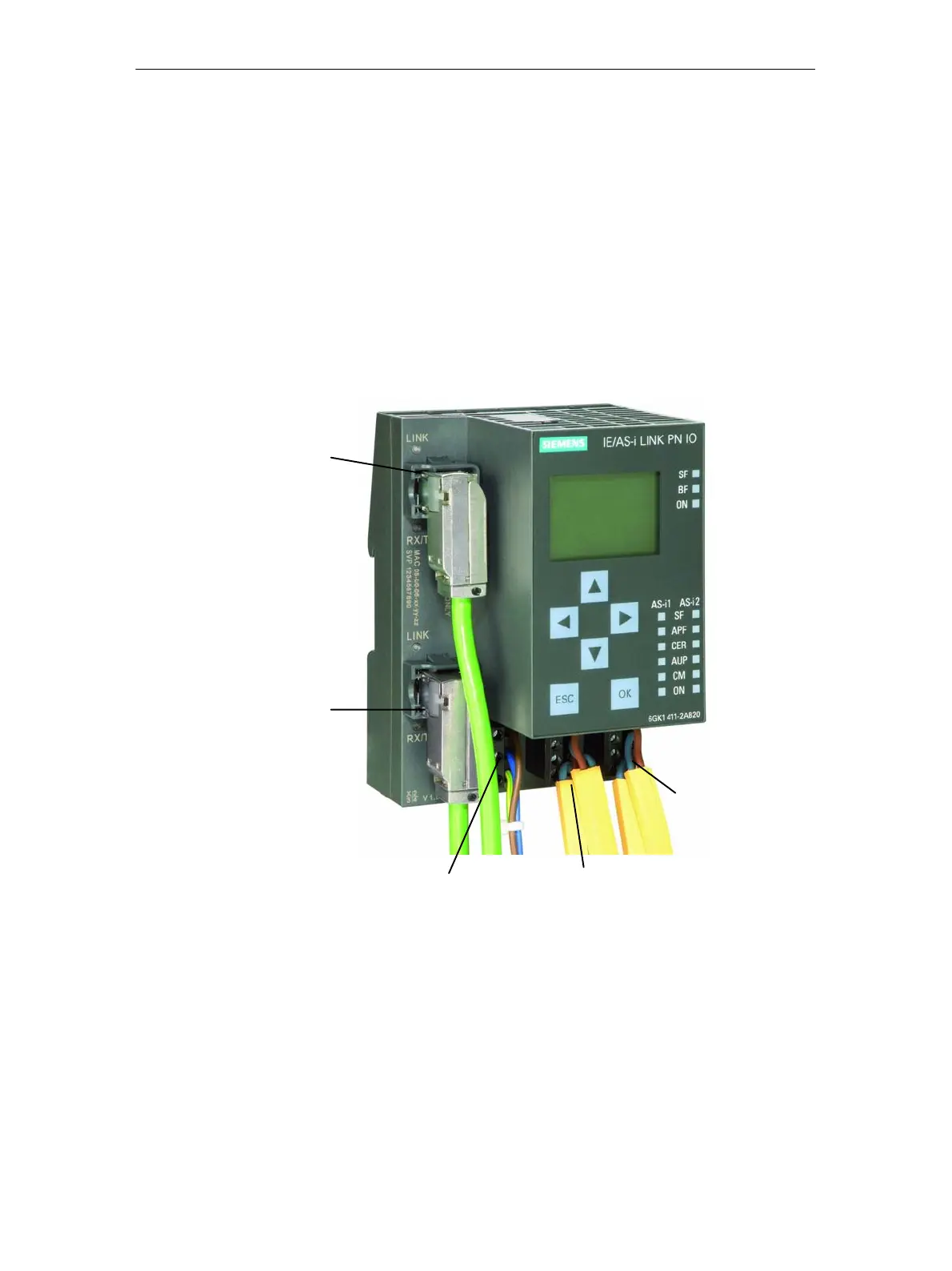

Figure 1-3 Connectors for the AS-i Cable(s) and Power Supply
