5 Display / WBM Configuration
61
IE/AS−INTERFACE LINK PN IO as of hardware version 1, as of firmware version V2.0
Release 08/2018
C79000−G8976−C216−03
5.2.5 Navigation “System −> Device Display”
LED Simulation
The IE/AS-i LINK has several LEDs that provide information on the status of the
device and connected slaves. Depending on their location, direct access to the
device is not always possible. To help in this situation, WBM provides a simulated
display of the LEDs.
The “Device Display” shows the LEDs of the IE/AS-i LINK with the same colors as
on the device. The status as shown here is the status when the WBM page is
opened. To display new changes, click on “Refresh” or “Refresh Cyclically”. The
meaning of the LEDs is explained in Section 1.9.
If all the slaves were deleted in the configuration of an AS-i line, all the LEDs of
this line are off. Regardless of whether or not an AS-i line is connected to the link
module, the “APF” LED is also off in this situation.

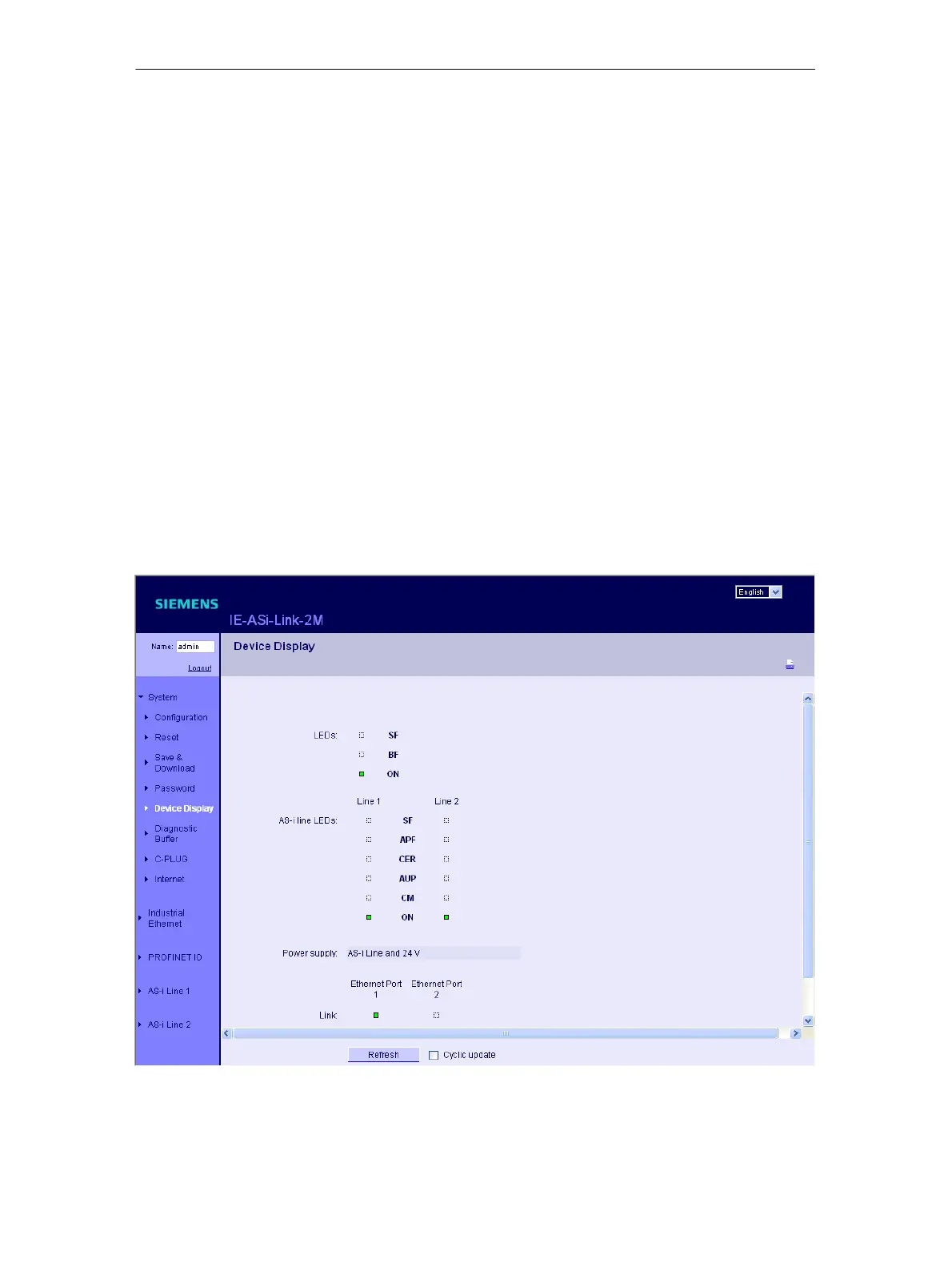

WBM: “Device Display” tab
