10.Enter the following variable data in the MCC unit backgr.
– In the Name field: Run
– As the variable type, select: VAR_GLOBAL
– As the data type, select: BOOL
– In the Initial value field: False

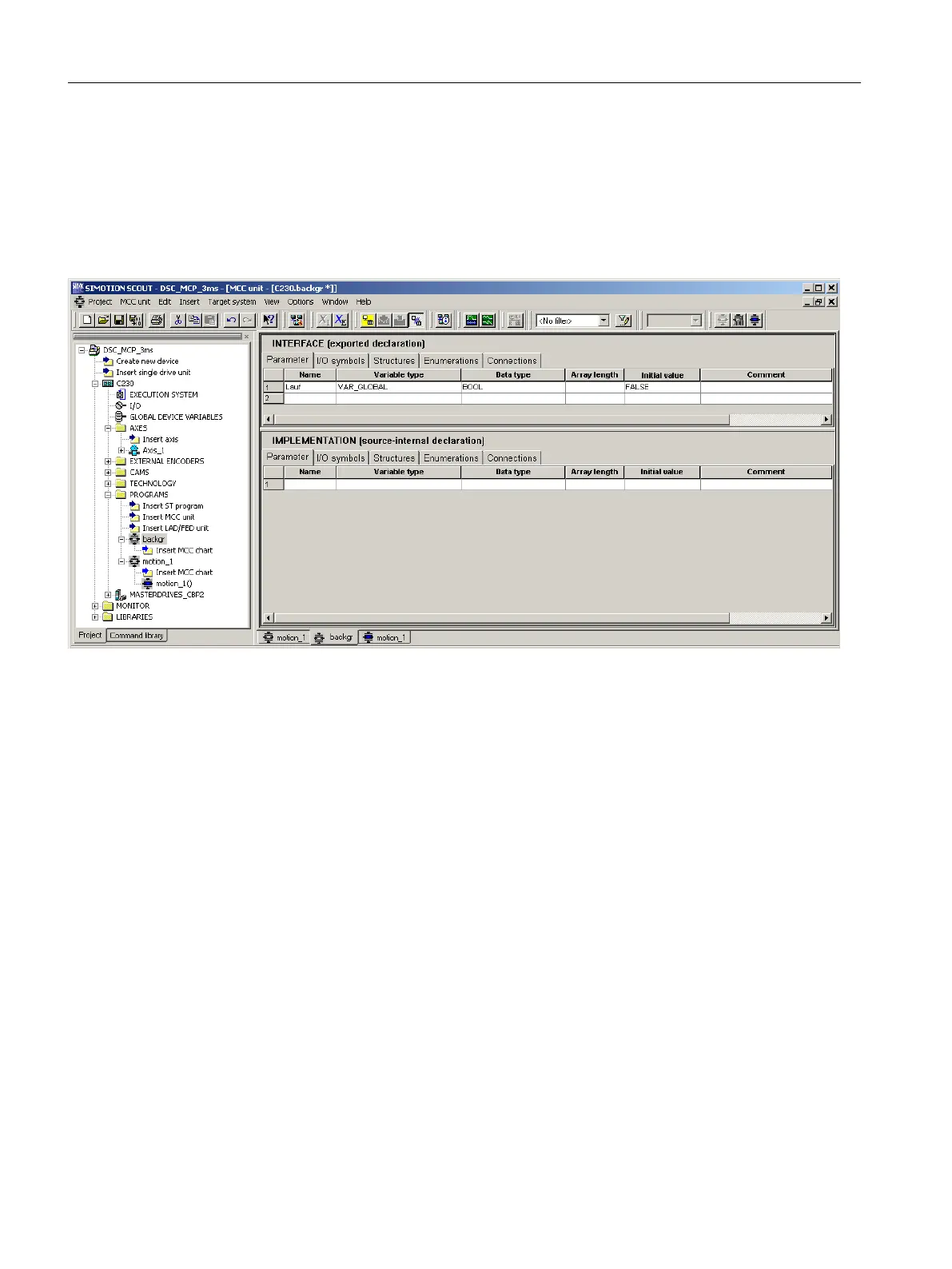

Figure A-4 Entering a global variable
11.Switch to the MCC Chart backgr tab.
Appendix
A.2 Creating an example program for axis positioning in SIMOTION SCOUT
SIMOTION SCOUT
230 Configuration Manual, 11/2016
