Siemens SINUMERIK 802D sl User Manual

System
8.4 SYSTEM - "Service display"
Surface grinding
Programming and Operating Manual, 11/2012, 6FC5398-5CP10-3BA0
125
6HOHFW
VLJQDO
● Measuring of abscissa and ordinate values as a difference between two marker positions;
● Storing of the result as a file in the part program directory. Thereafter, it is possible to
export the file using either RCS802 or the CF card and to process the data in MS Excel.

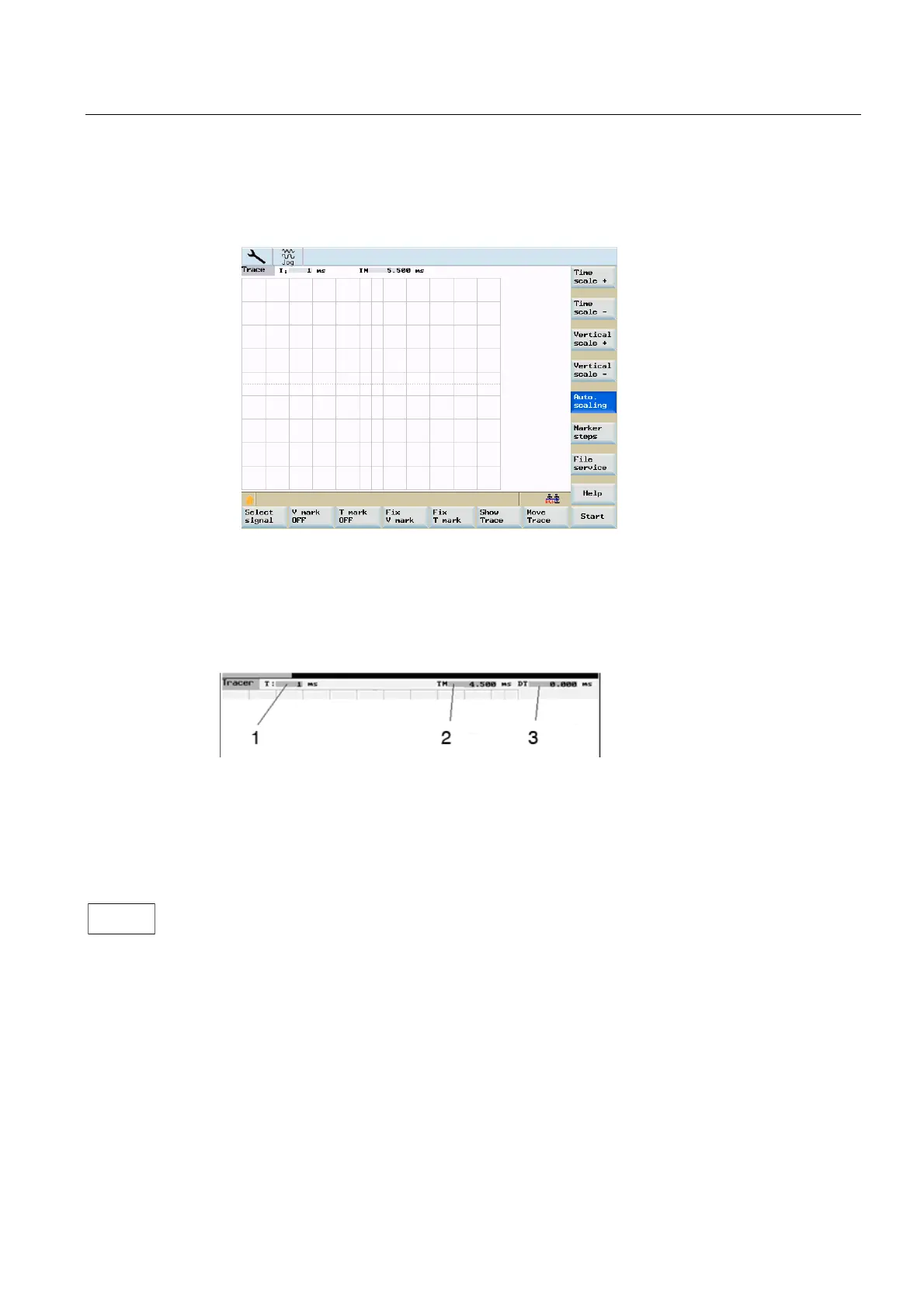

Figure 8-18 Servo trace start screen
The header of the diagram contains the current scaling of the abscissa and the difference
value of the markers.
The diagram shown above can be moved within the visible screen area using the cursor
keys.
1 Time Base
2 Marker position time
3 Difference in time between marker 1 and current marker position.
Figure 8-19 Meaning of the fields
Use this menu to parameterize the measuring channel.
