9.6 Safety position - CYCLE407
Surface grinding
Programming and Operating Manual, 11/2012, 6FC5398-5CP10-3BA0
167
9.6 Safety position - CYCLE407
Programming
CYCLE407(YS, STORE, KOORD)
Parameter
Table 9- 2 Parameters of CYCLE407
Parameter Data type Meaning
YS REAL Safety height
STORE INT Stores position globally 0/1
KOORD INT Position in WCS=1 and in MCS=0
Function
This cycle is used for approaching a safety position during the grinding process or during
interruptions such as intermediate dressing.
Sequence
The cycle checks the current position and approaches it if the infeed axis is smaller than the
value entered.
The position is approached in accordance with the KOORD parameter in the workpiece or
machine coordinate systems (basic coordinates).

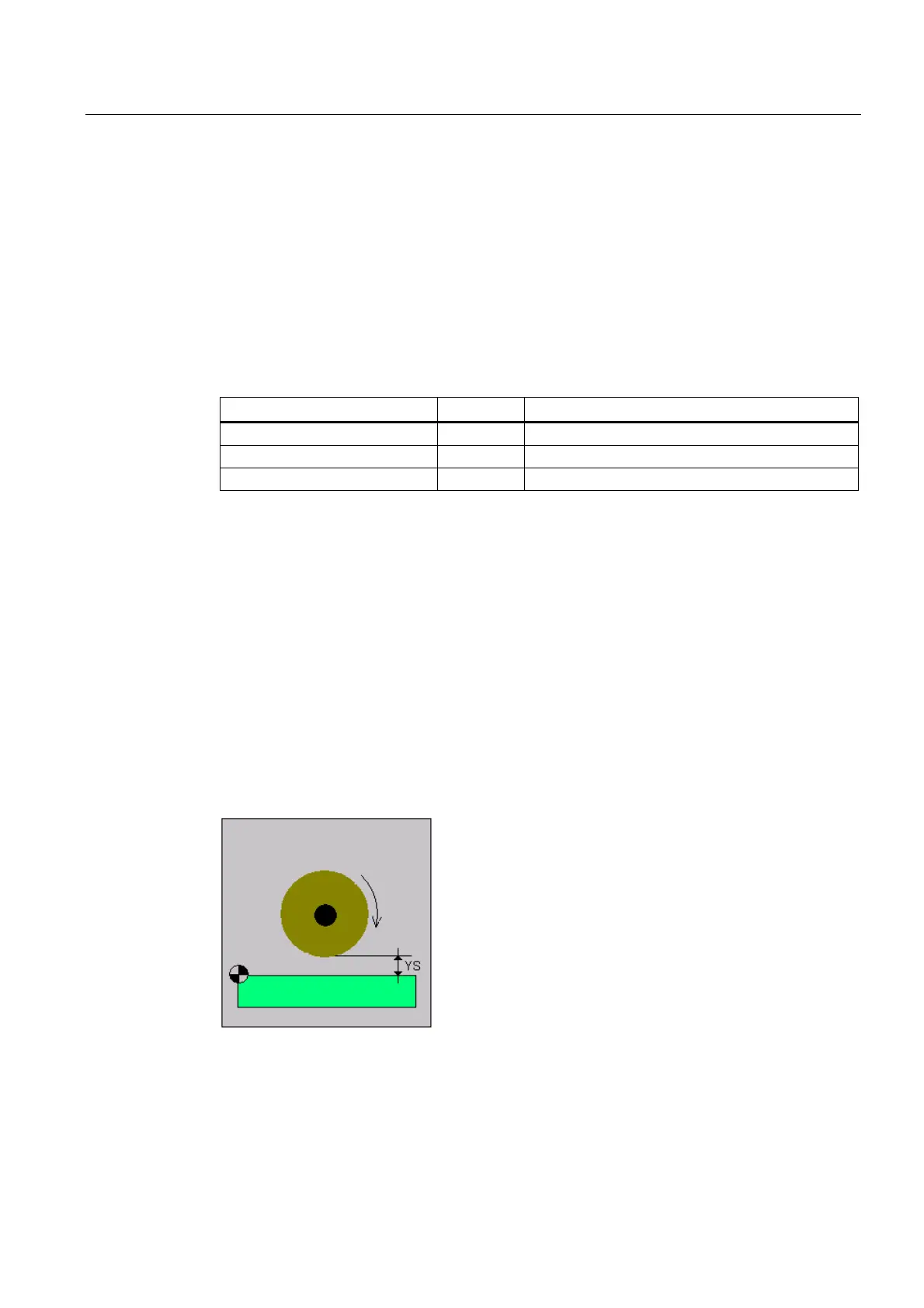

Sketch of the geometry parameters
Figure 9-5 Safety position - CYCLE407
