Manual mode
5.2 JOG mode - "Position" operating area
Surface grinding
Programming and Operating Manual, 11/2012, 6FC5398-5CP10-3BA0
59
+DQGZKHHO
0&6
5.2.2 Assigning handwheels
Operating sequence
Select the "JOG" operating mode.
Press the <Handwheel> softkey. The "Handwheel" window appears on the screen.
After the window has been opened, all axis identifiers are displayed in the "Axis" column,
which simultaneously appear in the softkey bar.
Select the desired handwheel using the cursor. Following this, assign or deselect as
appropriate by pressing the relevant axis softkey for the desired axis.
The ☑ symbol appears in the window.

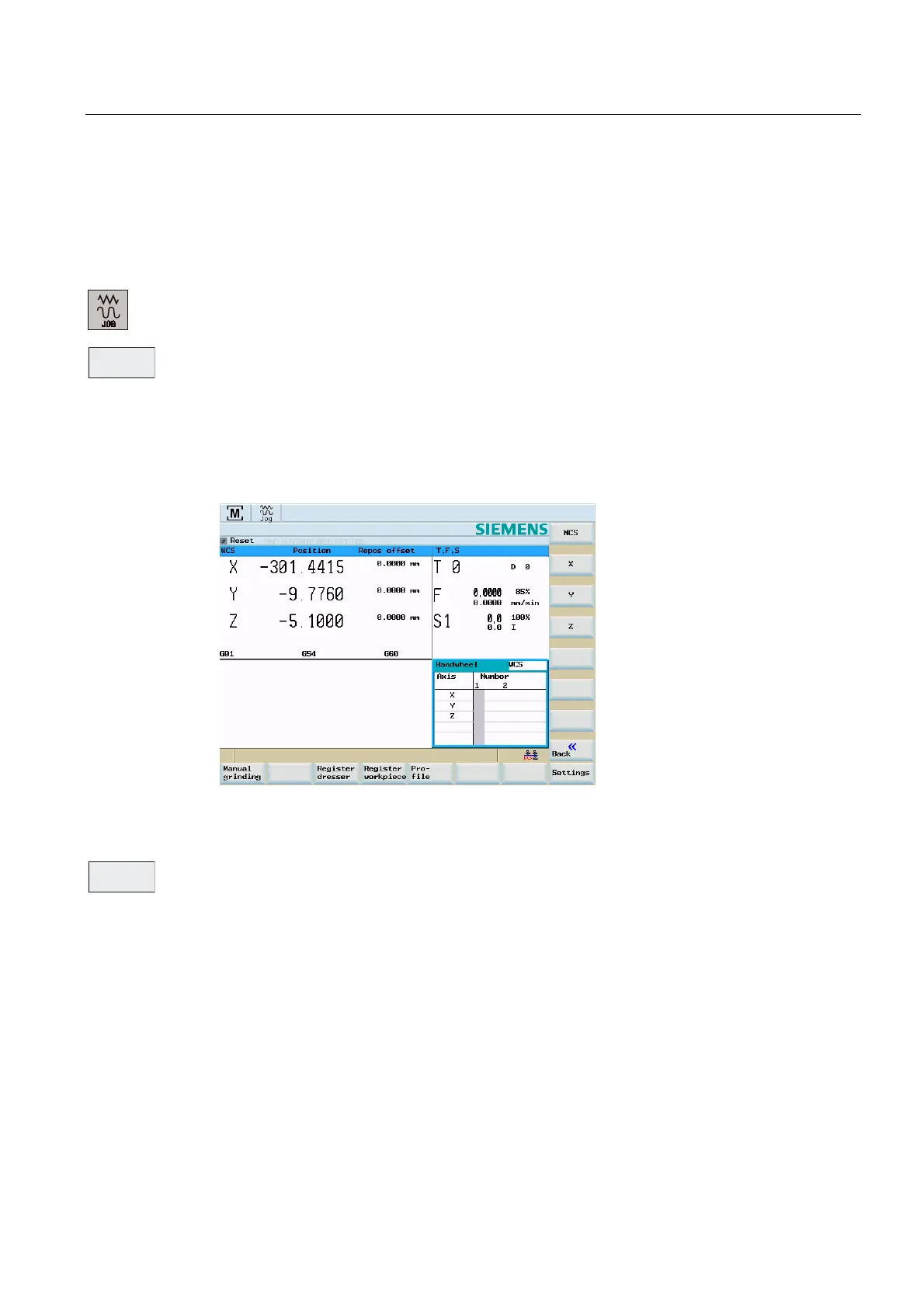

Figure 5-4 Handwheel menu screen
Use the <MCS> softkey to select the axes from the machine or workpiece coordinate system
for hand wheel assignment.
The current setting is displayed in the window.
