4.2 Create new tool
Surface grinding
Programming and Operating Manual, 11/2012, 6FC5398-5CP10-3BA0
33
2))6(7
3$5$0
7RRO
OLVW
7RRO
GDWD
4.2 Create new tool
Functionality
The tool offsets consist of various data describing the geometry, the wear and the tool type.
Each tool contains a defined number of parameters, depending on the tool type. Tools are
identified by a number (T number).
Operating sequences (general)
Press the <OFFSET PARAM> key.
This function opens the "Tool list" window which contains a list of the tools created. Use the
cursor keys and the <Page Up>/<Page Down> keys to navigate in this list.

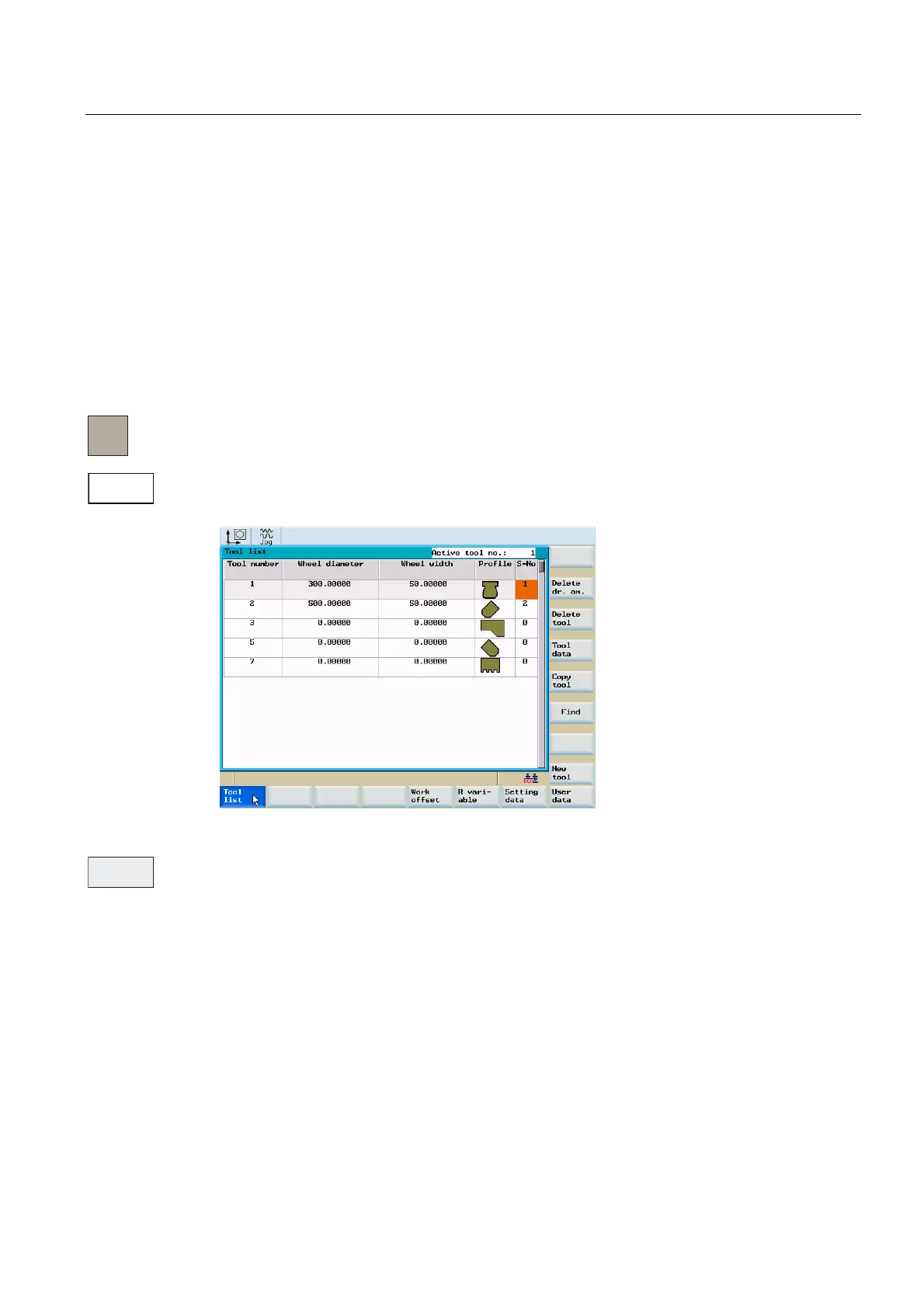

Figure 4-2 Tool list
The offsets are entered by placing the cursor bar on the tool to be modified and pressing the
<Tool data> softkey.
