Setup
4.4 Sense workpiece
Surface grinding
42 Programming and Operating Manual, 11/2012, 6FC5398-5CP10-3BA0
îî
%DFN
6HQVH
ZRUNSLHFH
For standard grinding wheels, the D number of the wheel is automatically selected in
accordance with the choice of dresser for dressers 1 and 2.
For the 3rd dresser, select the D number or approach the edge of the active wheel as it is
not automatically recognized.
Exit the "Register dresser" function.
4.4 Sense workpiece
Functionality
This function is used to detect the workpiece position in the machine with respect to the
particular axis. The HMI transmits both axis name and setpoint to the cycle.
Operation
The workpiece is sensed in JOG mode by scratching the respective axes.
The input screen is opened.

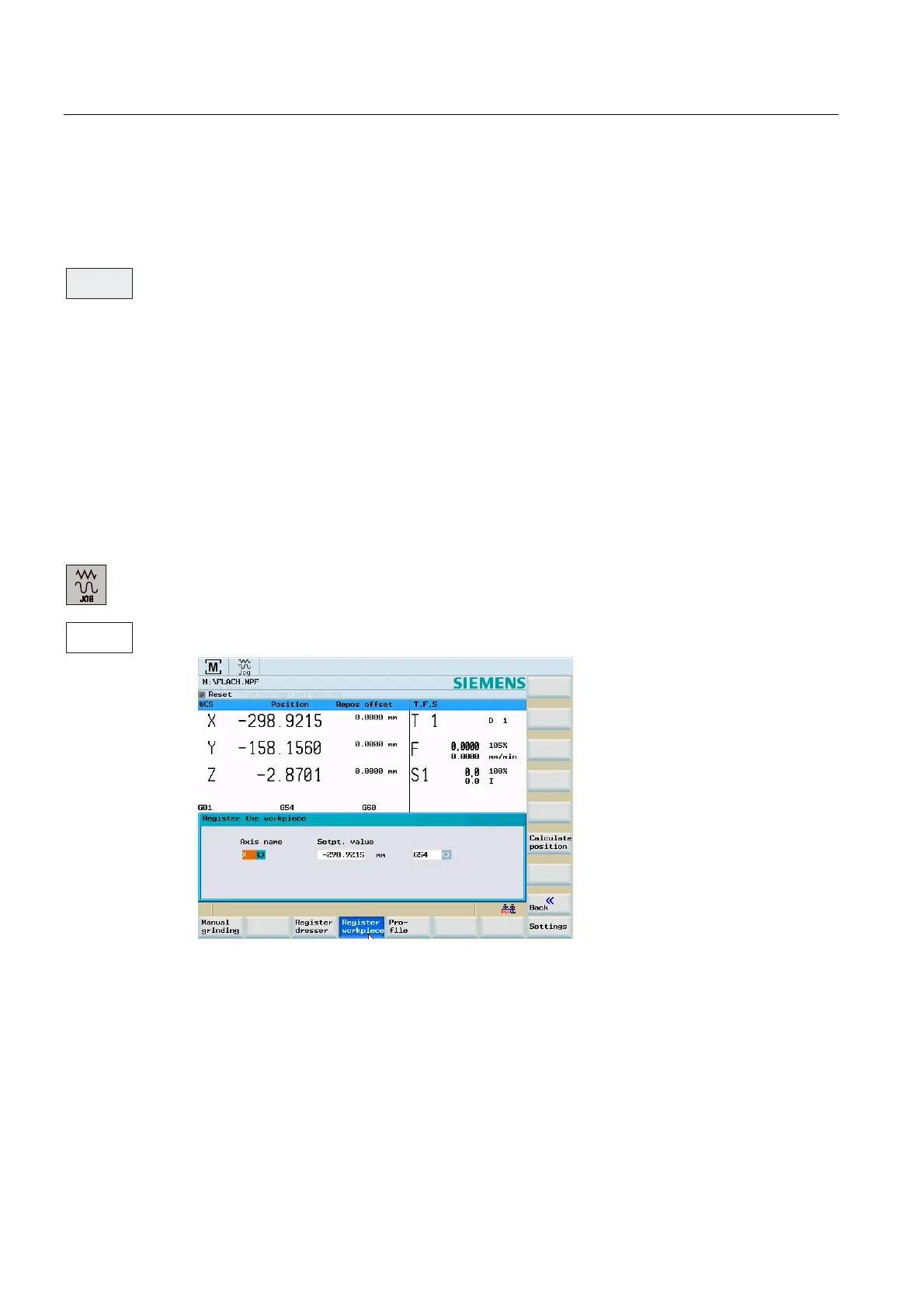

Figure 4-14 Sense workpiece
Use the "Axis name" toggle field to select the desired axis and enter the workpiece setpoint
measured in the input field.
