11.6 Establishing an RS232 connection to the control
Surface grinding
Programming and Operating Manual, 11/2012, 6FC5398-5CP10-3BA0
307
$/$50
6<67(0

3/&
&RQQHFWWR
67(3
&RQQHFW
RQ
11.6 Establishing an RS232 connection to the control
You are now in the <SYSTEM> operating area.
Press the "PLC” softkey.

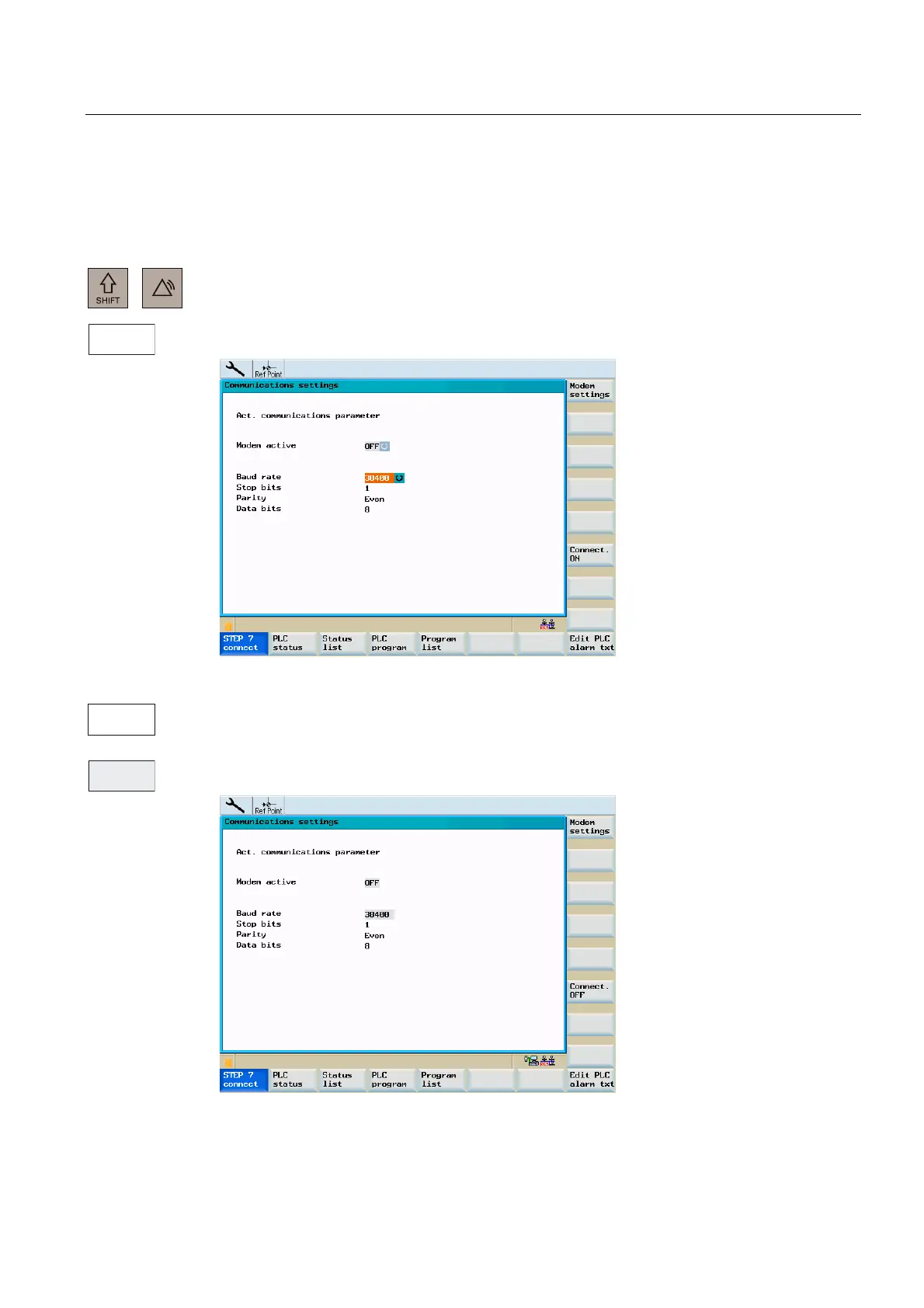

Figure 11-5 Communication settings RS232
Set the parameters for communication in the "STEP 7 Connect" dialog.
Activate the RS232 connection with the "Connect. ON" softkey.
Figure 11-6 RS232 connection active
