8.4 SYSTEM - "Service display"
Surface grinding
124 Programming and Operating Manual, 11/2012, 6FC5398-5CP10-3BA0
$FWLRQ
ORJ
6DYH
XQGHU
6HUYR
WUDFH
8.4.2 Action log
The function "Action log" is provided for service events. The contents of the action log file
can only be accessed through a system password on the HMI.

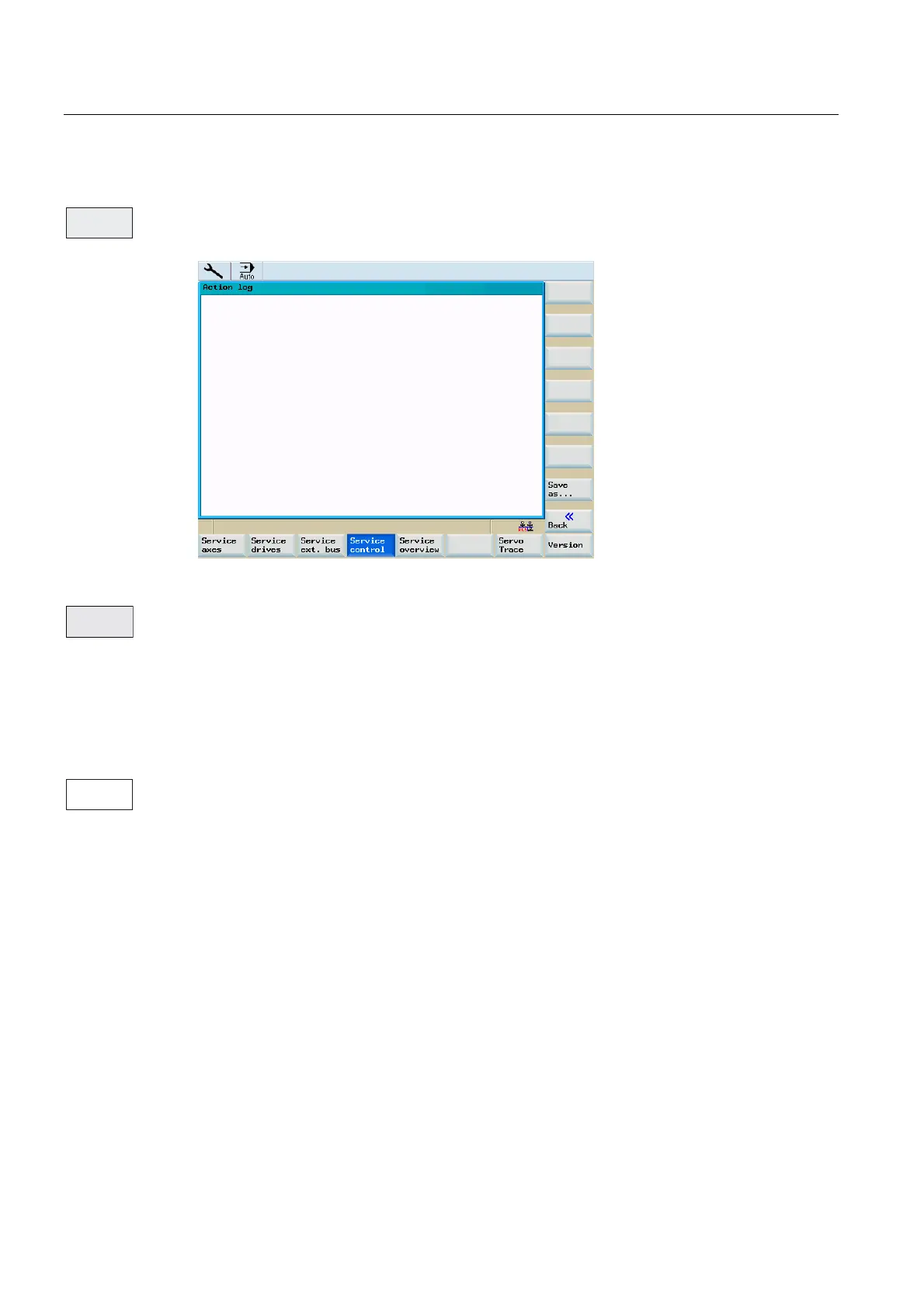

Figure 8-17 Action log
Irrespective of the system password, it is possible to output the file using softkey "Save
under..." on a CF card or on the USB FlashDrive.
In case of difficulties, please contact the hotline (see the "Technical Support" Section in the
preface for contacting the hotline).
8.4.3 Servo trace
An oscilloscope function is provided for the purpose of optimizing the drives. This enables
graphical representation:
● of the velocity setpoint
● of the contour violation
● of the following error
● of the actual position value
● of the position setpoint
● of exact stop coarse / fine
The start of tracing can be linked to various criteria allowing a synchronous tracing of internal
control states. This setting must be made using the "Select signal" function.
To analyze the result, the following functions are provided:
● Changing and scaling of abscissa and ordinate;
● Measuring of a value using the horizontal or vertical marker;
