Setup
4.3 Register dresser
Surface grinding
Programming and Operating Manual, 11/2012, 6FC5398-5CP10-3BA0
41
6HQVH
GUHVVHU
&DOFXODWH
SRVLWLRQ
4.3 Register dresser
Functionality
This function is used to determine the dresser positions in the machine for dressers that are
used by means of the geometry axes. The axis values are determinded in machine
coordinates by the HMI and transmitted to the cycle.
Operation
The dresser is sensed in JOG mode.
The input screen is opened.

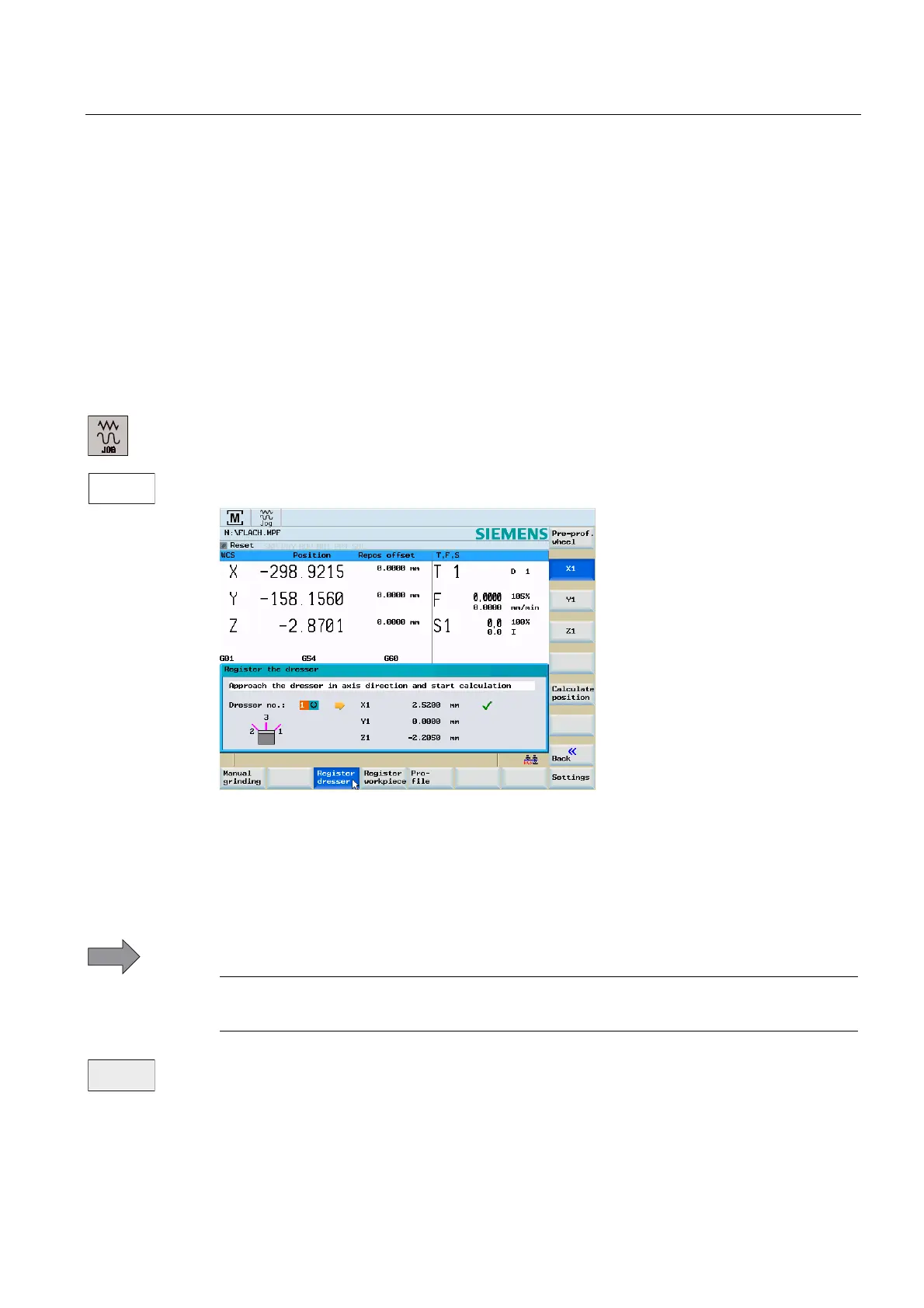

Figure 4-13 Register dresser
Use the "Dresser no.:" toggle field to select the dresser whose position you wish to register
(e.g. "1"). The order is irrelevant.
Each axis can be registered independently of the others.
The steps required are shown in a text line.
The axis line to be processed is indicated by an arrow.
Note
For swiveling wheels, the wheel must already be set to its dressing angle.
Following scratching of the selected axis, select "Calculate position" to read the axis actual
value and calculate it with the active tool.
The green check mark at the end of the line indicates this action.
