Siemens SINUMERIK 802D sl User Manual

Programming
10.2 Positional data
Surface grinding
218 Programming and Operating Manual, 11/2012, 6FC5398-5CP10-3BA0
10.2.7 Programmable rotation: ROT, AROT
Functionality
The rotation is performed in the current plane G17 or G18 or G19 using the value of RPL=...
specified in degrees.
Programming
ROT RPL=... ; Programmable rotation, deletes old instructions for offsetting, rotation,
scaling factor, mirroring
AROT RPL=... ; Programmable rotation, additive to existing instructions
ROT ; without values: Clears old instructions for offset, rotation, scaling factor,
mirroring
The instructions that contain ROT or AROT each require a separate block.

5RWDWHGV\VWHP
***
53/
<
=
53/
=
;
53/
;
<

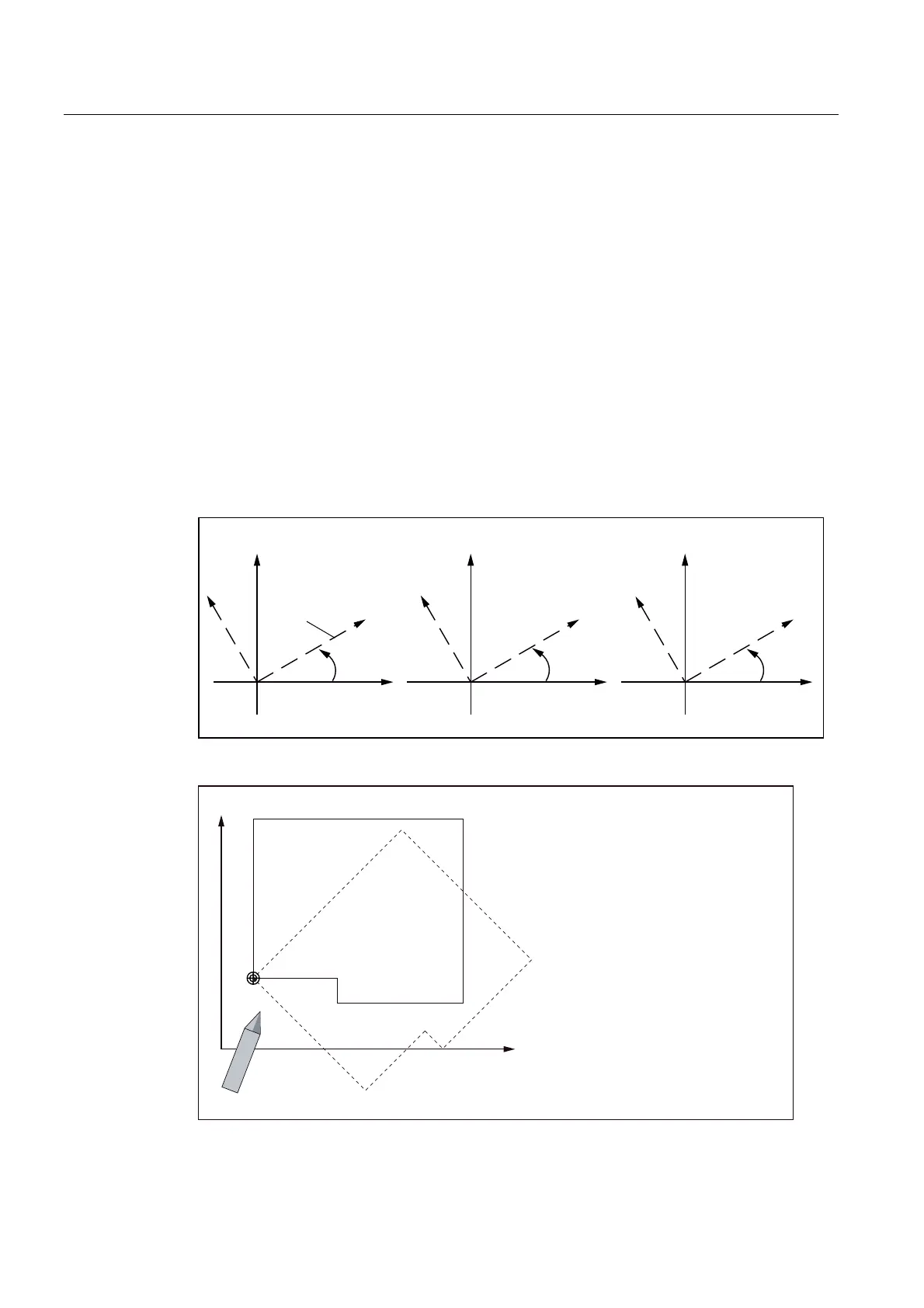

Figure 10-7 Definition of the positive direction of the angle of rotation in the individual planes
=
;

Figure 10-8 Programming example for programmable offset and rotation
