Siemens SINUMERIK 802D sl User Manual

System
8.6 SYSTEM - "Start-up files" softkeys
Surface grinding
Programming and Operating Manual, 11/2012, 6FC5398-5CP10-3BA0
147
6WDUWXS
ILOHV
'GDWD
8.6 SYSTEM - "Start-up files" softkeys
The menu allows general files, commissioning archives and PLC projects to be created,
read-out or read-in, copied, deleted etc.
This window displays the contents of the selected drive in a tree structure. The horizontal
softkeys display the available drives for selection in the form of a list. The vertical softkeys
provide the control functions possible for the drive in question.
There are the following permanently set drive assignments:
● 802D data: Commissioning data
● Customer CF card: Customer data on the CF card
● RCS connection: Data of a drive shared on PC using the the RCS tool (only for
SINUMERIK 802D sl pro)
● RS232: Serial Interface
● Manufacturer drive: Data that the manufacturer specifically stored
● USB drive: Customer data on a USB FlashDrive
● Manufacturer archive: Commissioning data archived on the system CompactFlash Card
All data is handled using the "Copy & Paste" principle.

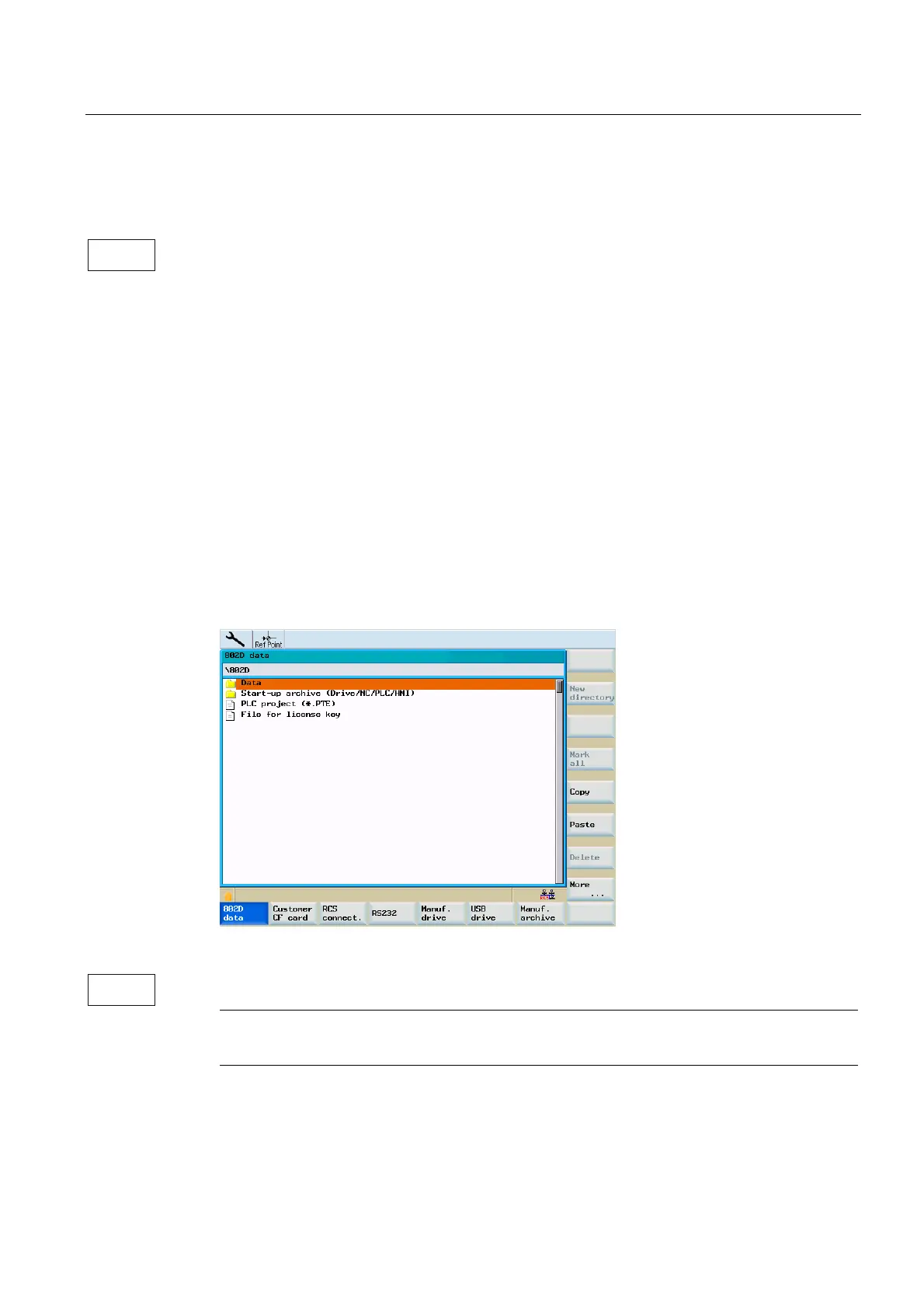

Figure 8-43 Start-up files
The individual data groups in the "802D data" area have the following significance:
Note
The sag compensation is ONLY listed if the associated function was activated.
